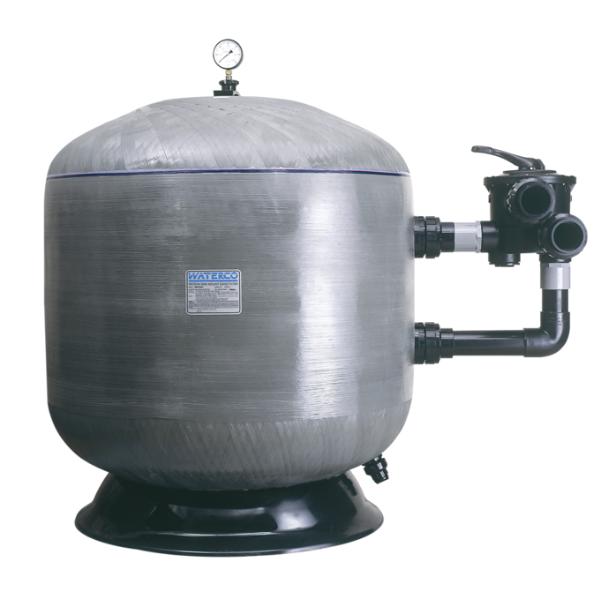

Waterco SM750 Micron 30" Fibreglass Side Mount - Sand Filter w. 50mm Valve

General
Documentation

Waterco SM750 Micron 29" Fibreglass Side Mount - Sand Filter w. 50mm Valve

Waterco fibreglass filters embody the latest in fibreglass winding technology. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of fibreglass filament to create a strong filter vessel with refined consistency and superior quality

Proven Durability - Waterco fibreglass filters are perfectly suited to the constant increases and decreases in pressure experienced by sand filters. Accelerated cyclic testing has shown that even after simulating 20 years of use, Waterco fibreglass filters withstood cyclic wear and tear better than most other filters in its class.

Easy Maintenance - Cleansing the filter simply requires turning the Multiport lever from the ‘filter’ position to the ‘backwash’ position.

Features:

Fibreglass wound tank, UV and Corrosion Resistant.
Hydraulically balanced laterals to maximise water flow and filtration.
Optional six position Multiport valve with sight glass and quick connect half unions.
Available in filter areas of 1.13m2 to 2.01m2
Pressure rated at 250 kPa (36 psi), 400 kPa (58 psi), 600 kPa (87psi) and up to 800 kPa (116 psi)
Maximum working temperature of 50°C (122°F)
Optional sight glasses and lateral man holes.
Optional fibreglass reinforced vinyl ester for improved chemical resistance

Specification:

Inner Diameter (mm) - 750
Filter Area (m2) - 0.44
Media Volume (litre) - 144
Sand 16/30 (Kg) - 210
Zeoplus 1 - 2.2 (Kg) - 173
Bed Depth (mm) - 400
Valve Size (mm) - 50
Max. Flow (lpm) - 353
Max. Pool Size (litres) - 127,235
Max. Flow (lpm) - 265

Warranty - 10-year warranty and 1 year warranty on all other components.

Waterco Micron Side Mount Sand Filter Brochure

View
