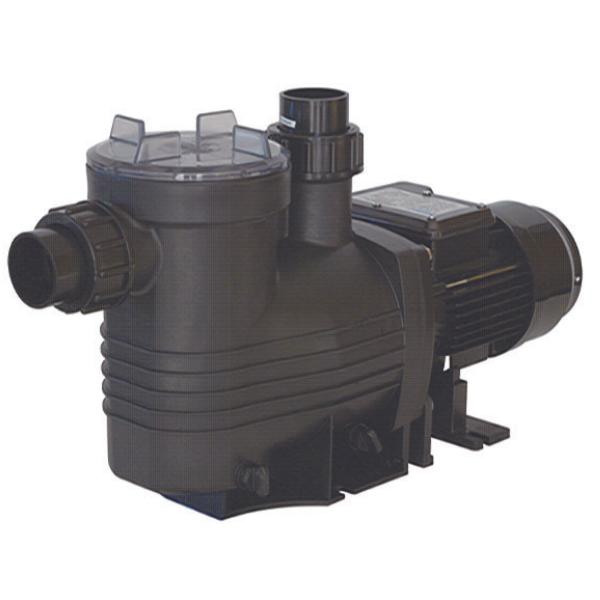

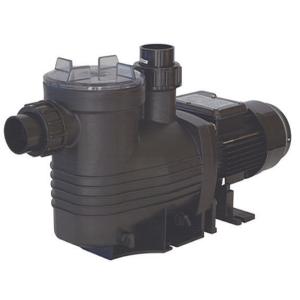

Baker Hydro Orion - 1.50 HP Pool Pump

Orion pumps incorporate the very latest technology - in both design and construction to produce a high performance, reliable pump.

Efficient Design -The Orion’s hydraulic design maximizes the output of the pump while minimizing turbulence. The pump’s efficient performance shortens run times and reduces energy consumption.

Engineered Durability - Orion’s pump body is manufactured utilising state of the art engineering plastic moulding with a single piece strainer pot and volute for extra strength.

Features:

Clear basket lid - easy visual inspection.
40mm quick connect barrel unions for UPVC pipe.
High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly
High performance motor - High grade stainless steel motor shaft / Fan cooled / Thermal overload protection
Stable support base.
Secondary seal - for extra protection.
Secondary seal drain pipe.
Hydraulically efficient impeller and diffuser design. Drain plugs.
Strong single piece glass filled thermoplastic pump body.
1.5 litre strainer basket - capture debris and protects the pump’s impeller.

Patented Secondary Seal - Situated between the pump’s wet end and motor, a mechanical seal forms a seal around the motor shaft to prevent water from running out along the motor’s shaft. The mechanical seal is the wearing part of any pool pump.

A mechanical seal may leak water if the pump is ever run dry or simply worn out. If a leaking mechanical seal is not replaced promptly, water will travel along the motor’s shaft and ruin the motor in a very short period of time.

Orion’s Secondary Seal protects the pump motor’s end shield from any water contact, by capturing any leaks and draining it out of the pump.

Warranty - Wet End = 3 years, Motor = 2 years, Commercial Applications = 1 year, and Labour = 1 year.

Watermaid Baker Hydro Orion Manual

View
