Wilo PD‑300EA 10M AU

Fully Submersible Drainage Pump for Portable Wet Well Installation

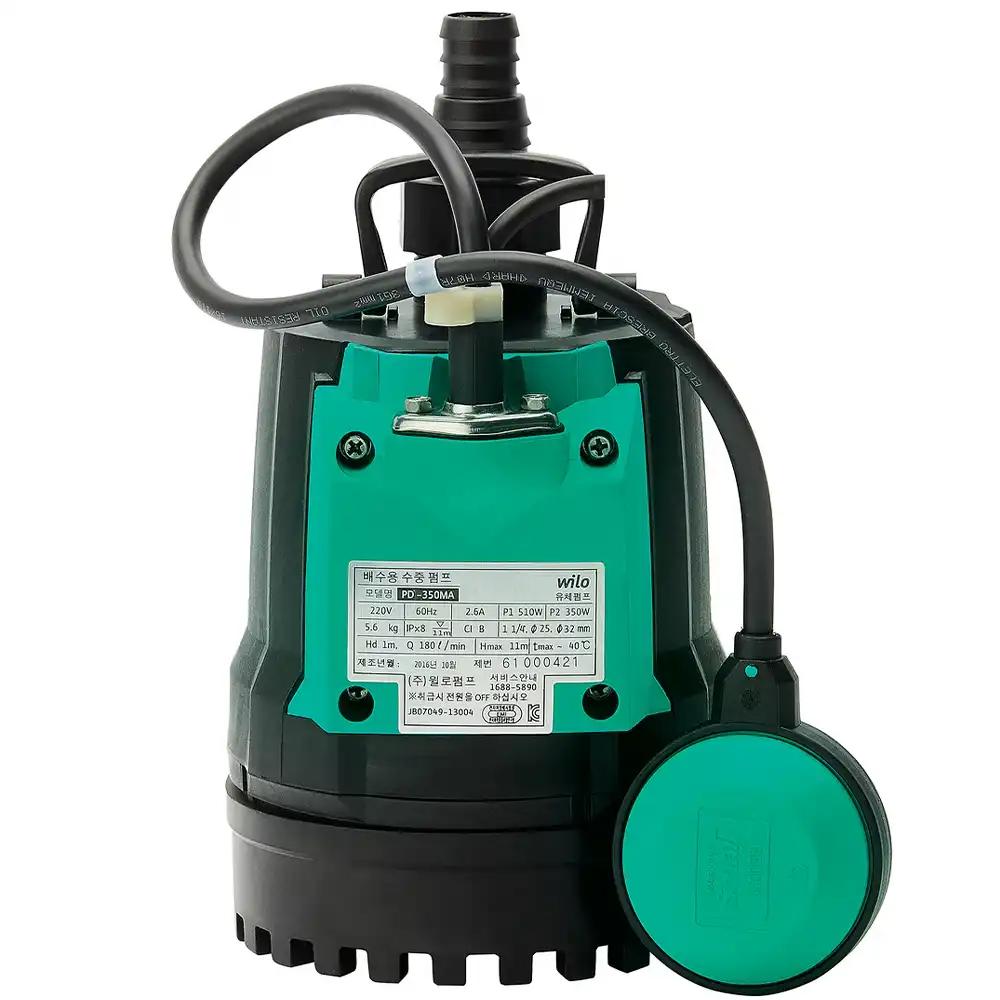

Fully submersible drainage pump for portable wet well installation for pumping sewage not containing faeces and wastewater. Hydraulics housing and impeller made of plastic, motor housing made of aluminum alloy. Hydraulics with vertical pressure connection with hose connection and open multi-channel impeller. Shroud-cooled single-phase AC motor (cooling by the pumped fluid between the pump and motor housing) with integrated operating capacitor and self-switching thermal motor monitoring. Connection cable with fitted AS/NZS-10A plug and float switch for automatic level control. The seal is created on the fluid side by a mechanical seal, and on the motor side by a rotary shaft seal.

FEATURES

Efficient Hydraulic Design

Features a plastic hydraulics housing and impeller for lightweight corrosion resistance. The vertical pressure connection and open multi-channel impeller allow effective handling of wastewater.

Robust Motor Configuration

Equipped with a shroud-cooled single-phase AC motor cooled by the pumped fluid itself, ensuring efficient operation. The integrated operating capacitor and self-switching thermal motor monitoring enhance reliability and longevity.

Smart Control and Sealing

Includes a float switch for automatic level control. Sealing is ensured by a mechanical seal on the fluid side and a rotary shaft seal on the motor side for dependable protection.

Key Features

• Fully submersible drainage pump for portable wet well installation
• Suitable for sewage without faeces and wastewater
• Plastic hydraulics housing and impeller
• Aluminum alloy motor housing
• Vertical pressure connection with hose fitting
• Open multi-channel impeller design
• Shroud-cooled single-phase AC motor
• Cooling by pumped fluid between pump and motor housing
• Integrated operating capacitor
• Self-switching thermal motor monitoring
• AS/NZS-10A plug and float switch included
• Automatic level control via float switch
• Mechanical seal on fluid side
• Rotary shaft seal on motor side

Package Dimensions

• Length (with packaging): 230 mm
• Length L: 174.5 mm
• Height (with packaging): 300 mm
• Height H: 257 mm
• Width (with packaging): 230 mm
• Width W: 156 mm
• Gross weight: approx. 7 kg
• Net weight: approx. 6 kg
• Packaging type: Special pallet
• Packaging property: Sales packaging
• Pieces per pallet: 60
• Number per layer: 20

Package Contents

• 1 x Fully submersible drainage pump
• 1 x AS/NZS-10A plug connection cable
• 1 x Integrated float switch
