Jet FWJ 204 AU

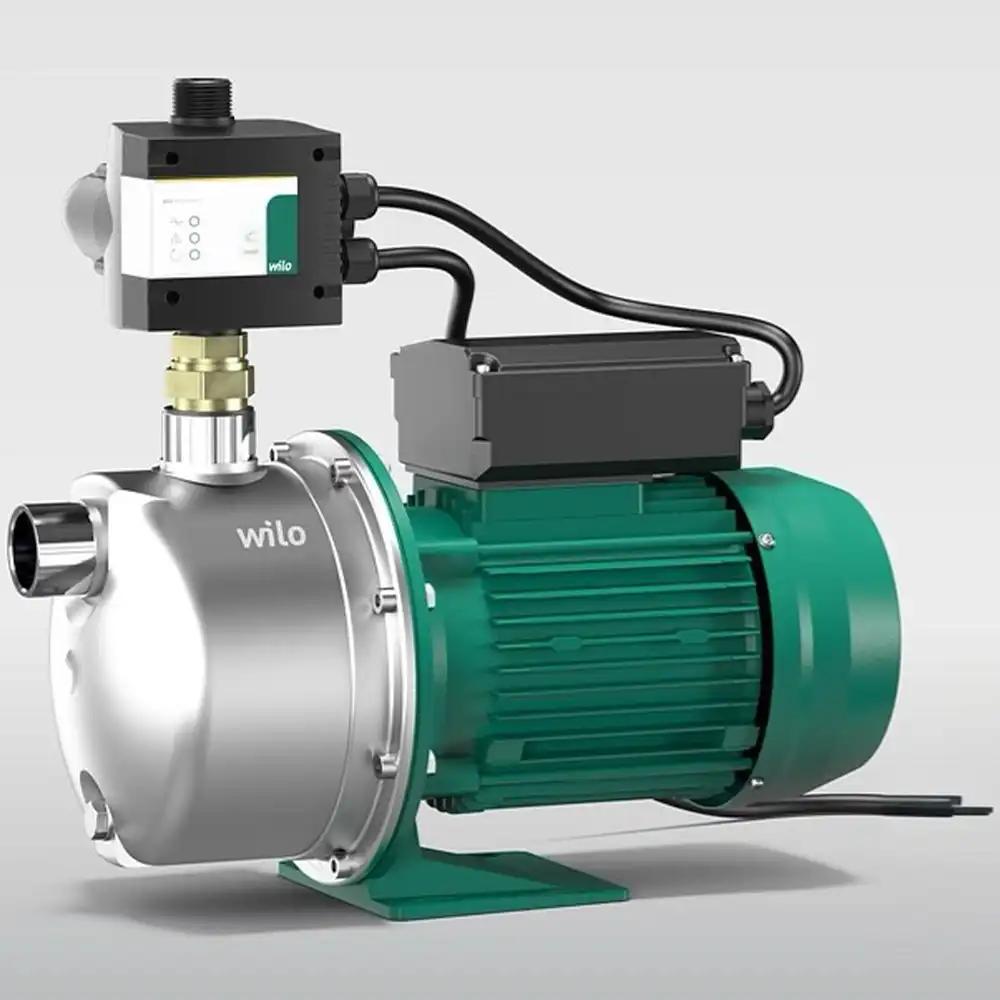

Wilo Jet FWJ 204 AU Water Pump (2553533)

The Wilo Jet FWJ 204 AU is a high-capacity, self-priming jet pump engineered for efficient water supply and irrigation applications. Powered by a robust 1 kW motor (1~230 V, 50 Hz), it delivers up to 83 L/min with a maximum head of 49 m. Built with corrosion-resistant stainless steel construction and automatic control features, this pump ensures long-term, reliable outdoor performance.

FEATURES

Robust Stainless-Steel Construction

Featuring stainless steel housing, impeller, and shaft, the pump offers excellent durability and corrosion resistance for demanding outdoor environments. :contentReference[oaicite:0]{index=0}

Efficient Motor and Automatic Control

Equipped with a 1 kW motor drawing approximately 6.2 A, rated at 1~230 V and 50 Hz, with IP44 protection and built-in thermal motor protection. The pump features automatic electronic control, low-water cutoff, and plug-and-play simplicity. :contentReference[oaicite:1]{index=1}

Self-Priming Jet Performance

Capable of self-priming up to about 8 m, this jet pump uses integrated Wilo HiControl for electronic pressure and flow monitoring and built-in dry-run protection—ideal for garden irrigation and rainwater reuse. :contentReference[oaicite:2]{index=2}

Key Features

• Brand: Wilo
• Model: Jet FWJ 204 AU
• Article number: 2553533
• Power supply: 1~230 V, 50 Hz
• Rated power: 1 kW (1100 W)
• Rated current: ~6.2 A
• Max Flow Rate: 83 L/min
• Max Head: 49 m
• Stainless steel hydraulic components
• Self-priming up to ~8 m
• Automatic pump control with dry-run protection
• IP44 protection class with thermal motor protection

Package Dimensions

• Packaging type: Cardboard box (sales packaging)
• Pieces per pallet: 12 (6 per layer)
• Length (with packaging): 480 mm
• Length L: 417 mm
• Height (with packaging): 490 mm
• Height H: 402 mm
• Width (with packaging): 280 mm
• Width W: 215 mm
• Gross weight: approx. 16.1 kg
• Net weight: approx. 13.4 kg

Package Contents

• 1 × Wilo Jet FWJ 204 AU Pump (Plug & Pump system)
• Wilo HiControl 1 electronic pump controller
• Installation and operating instructions
• Low-water cut-out protection
