Davey Household Pressure Pumps

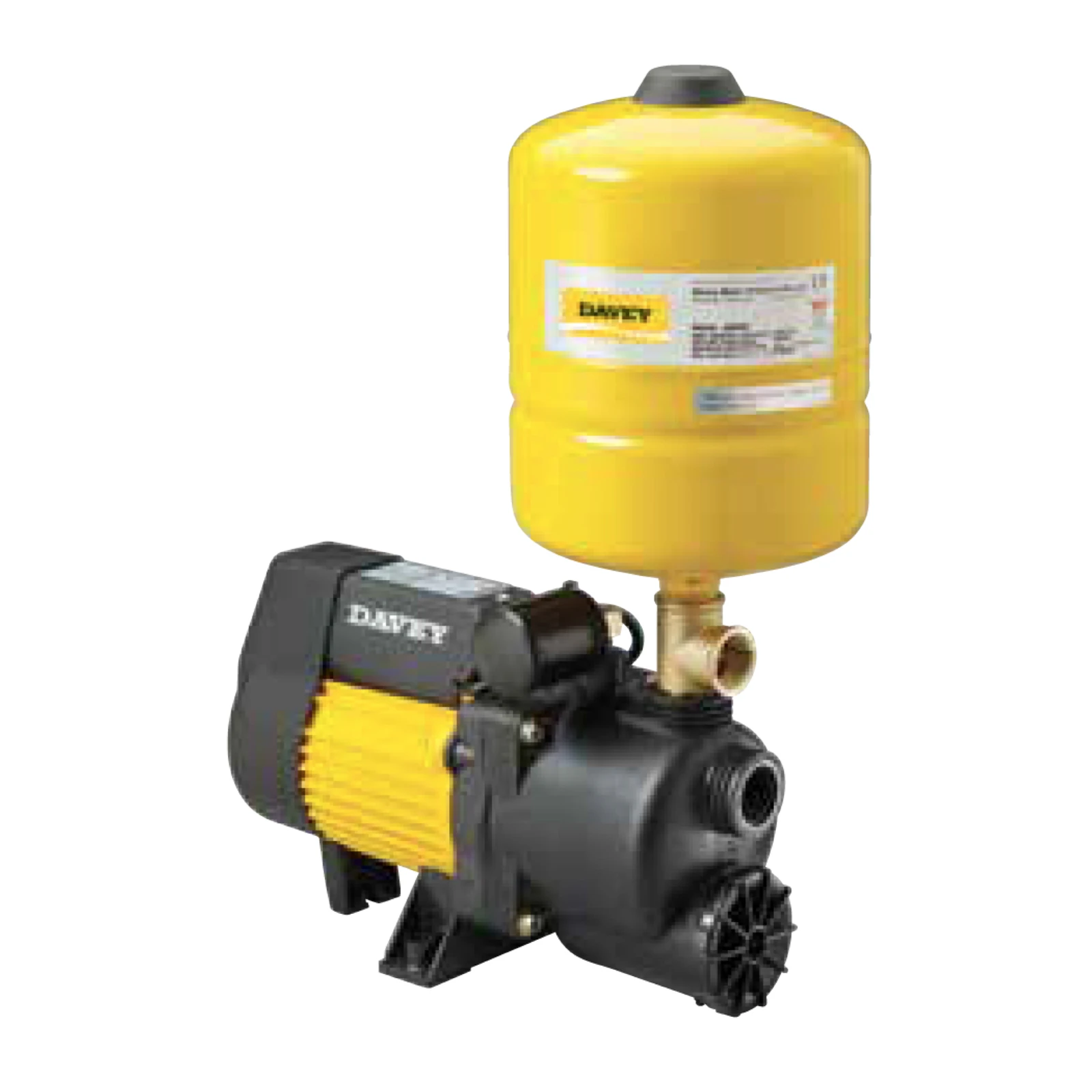

Davey XP25P8 Jet Assisted Centrifugal Pump - The Weekender Series W1 - 8L Pressure Tank

General
Details

Davey XP25P8 Jet Assisted Centrifugal Pump - The Weekender Series W1

Economical, compact 25lpm jet assisted centrifugal pressure pump. The unit features a TEFC motor and includes a Supercell 8P tank which provides 3 litre draw off.

APPLICATIONS

Ideal for pressure boosting applications for:

Small weekenders / cottages – delivering pressurised water from rainwater catchment tanks
Caravans
Boats (240V A.C. power)

WHY CHOOSE THE DAVEY WEEKENDER SERIES W1?

PUMP

Single stage, jet assisted
Closed vane impeller
304 stainless steel pump shaft
Internal check valve
Mechanical shaft seal
O-ring casing seal
Pressure switch control

MOTOR

Davey manufactured
2 pole, 2850rpm/50Hz or 3420rpm/60Hz
TEFC with IP55 enclosure
Class F insulation
Permanently split capacitor design
Double contact C3-HTG rated sealed ball bearings
In-built thermal overload protection
Plastic feet on motor shell

PRESSURE TANK

Captive diaphragm design
Heavy duty Butyl diaphragm meets health requirements for potable water applications
Deep drawn steel shell with appliance like 2 part paint finish

BENEFITS

Manufactured from quality corrosion resistant materials
TEFC motor-corrosion resistant and excludes dust and dirt
Motor and pump designed for frequent starts
Discharge may be rotated through 180º - makes plumbing easier
Quick and easy installation
Low maintenance
Easy to service if required

Davey XP25P8 Jet Assisted Centrifugal Pump - The Weekender Series W1

INSTALLATION & PRIMING

On installations with suction lifts over 1m, a good quality foot valve should be fitted to avoid loss of prime. In this case the check valve inside the pump should be removed.
For suction lifts over 1.5m the pressure switch may need to be adjusted to enable the pump to automatically cut-out.
Fill pump and suction lines through pressure switch port.

AVAILABLE IN-STORE ONLY
CALL 1800 100 417 TO ORDER

General
Davey XP25P8 Jet Assisted Centrifugal Pump - The Weekender Series W1

Economical, compact 25lpm jet assisted centrifugal pressure pump. The unit features a TEFC motor and includes a Supercell 8P tank which provides 3 litre draw off.

APPLICATIONS

Ideal for pressure boosting applications for:
- Small weekenders / cottages – delivering pressurised water from rainwater catchment tanks
- Caravans
- Boats (240V A.C. power)
WHY CHOOSE THE DAVEY WEEKENDER SERIES W1?

PUMP
- Single stage, jet assisted
- Closed vane impeller
- 304 stainless steel pump shaft
- Internal check valve
- Mechanical shaft seal
- O-ring casing seal
- Pressure switch control
MOTOR
- Davey manufactured
- 2 pole, 2850rpm/50Hz or 3420rpm/60Hz
- TEFC with IP55 enclosure
- Class F insulation
- Permanently split capacitor design
- Double contact C3-HTG rated sealed ball bearings
- In-built thermal overload protection
- Plastic feet on motor shell
PRESSURE TANK
- Captive diaphragm design
- Heavy duty Butyl diaphragm meets health requirements for potable water applications
- Deep drawn steel shell with appliance like 2 part paint finish
BENEFITS
- Manufactured from quality corrosion resistant materials
- TEFC motor-corrosion resistant and excludes dust and dirt
- Motor and pump designed for frequent starts
- Discharge may be rotated through 180º - makes plumbing easier
- Quick and easy installation
- Low maintenance
- Easy to service if required
Details
Davey XP25P8 Jet Assisted Centrifugal Pump - The Weekender Series W1

INSTALLATION & PRIMING
- On installations with suction lifts over 1m, a good quality foot valve should be fitted to avoid loss of prime. In this case the check valve inside the pump should be removed.
- For suction lifts over 1.5m the pressure switch may need to be adjusted to enable the pump to automatically cut-out.
- Fill pump and suction lines through pressure switch port.
