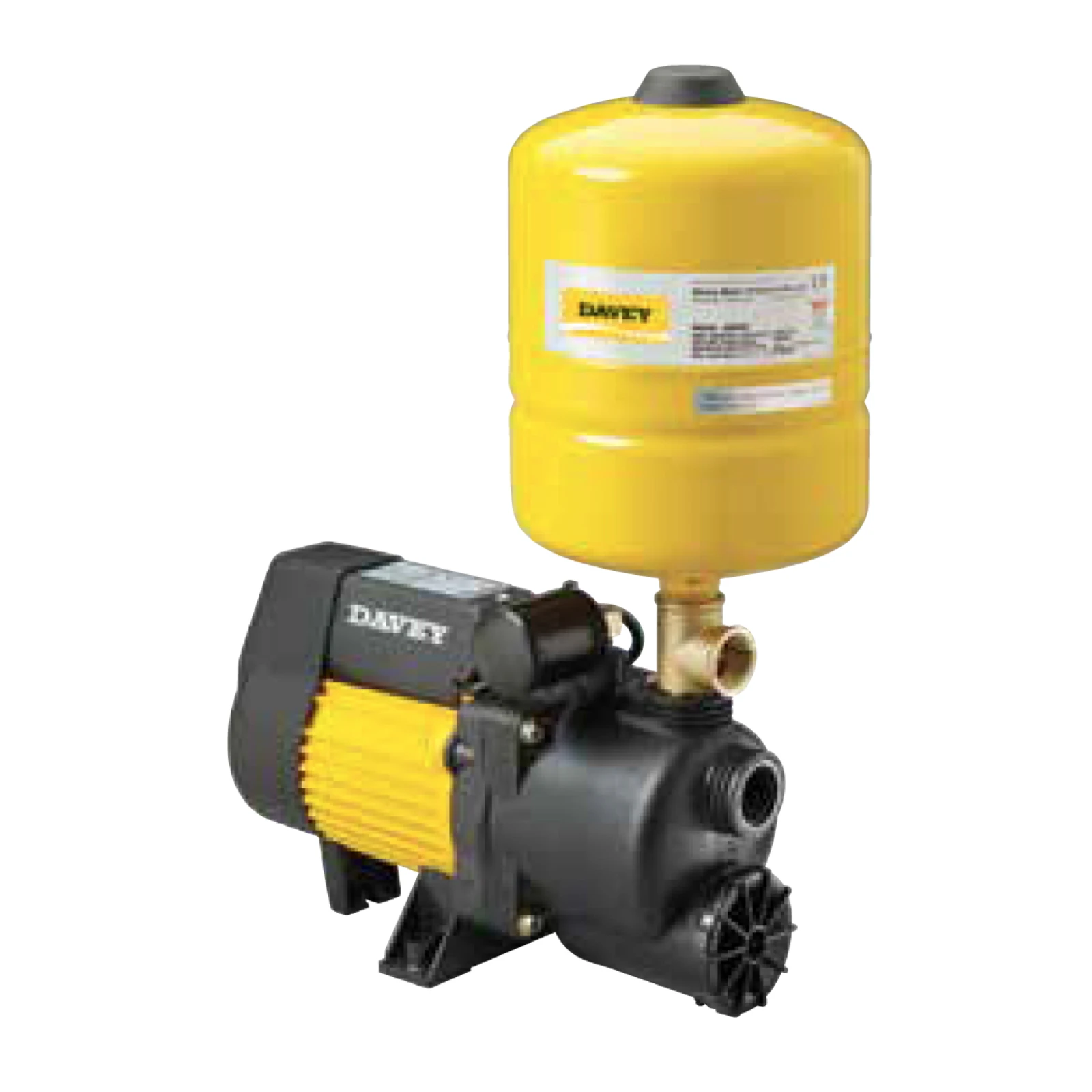

Davey XP35P8 Jet Assisted Centrifugal Pump - The Weekender Series W2 - 8L Pressure Tank

General
Details

Davey XP35P8 Jet Assisted Centrifugal Pump - The Weekender Series W2

Economical, compact 35lpm domestic pressure system driven by a single stage jet assisted centrifugal pump. The unit features a TEFC motor and includes a Supercell 8P tank which provides 3 litre draw-off.

APPLICATIONS

Ideal for small/average size homes, cottages, weekenders
Domestic water supply
Pressure boosting
Automatic water transfer

WHY CHOOSE THE DAVEY WEEKENDER SERIES W2?

PUMP

Single stage, jet assisted
Closed vane impeller
304 stainless steel pump shaft
Internal check valve
Mechanical shaft seal
O-ring casing seal
Pressure switch control

MOTOR

Davey manufactured
2 pole, 2850rpm/50Hz or 3420rpm/60Hz
TEFC with IP55 enclosure
Class F insulation
Permanently split capacitor design
Double contact C3-HTG rated sealed ball bearings
In-built thermal overload protection
Plastic feet on motor shell

PRESSURE TANK

Captive diaphragm design
Heavy duty Butyl diaphragm meets health requirements for potable water applications
Deep drawn steel shell with appliance like 2 part paint finish

BENEFITS

Manufactured from quality corrosion resistant materials
TEFC motor-corrosion resistant and excludes dust and dirt
Motor and pump designed for frequent starts
Discharge may be rotated through 180º - makes plumbing easier
Quick and easy installation
Low maintenance
Easy to service if required

Davey XP35P8 Jet Assisted Centrifugal Pump - The Weekender Series W2

INSTALLATION & PRIMING

On installations with suction lifts over 1m, a good quality foot valve should be fitted to avoid loss of prime. In this case the check valve inside the pump should be removed.
The system is primed by removing the pressure tank, filling with water and replacing the tank prior to switch on.

AVAILABLE IN-STORE ONLY
CALL 1800 100 417 TO ORDER

General
Davey XP35P8 Jet Assisted Centrifugal Pump - The Weekender Series W2

Economical, compact 35lpm domestic pressure system driven by a single stage jet assisted centrifugal pump. The unit features a TEFC motor and includes a Supercell 8P tank which provides 3 litre draw-off.

APPLICATIONS
- Ideal for small/average size homes, cottages, weekenders
- Domestic water supply
- Pressure boosting
- Automatic water transfer
WHY CHOOSE THE DAVEY WEEKENDER SERIES W2?

PUMP
- Single stage, jet assisted
- Closed vane impeller
- 304 stainless steel pump shaft
- Internal check valve
- Mechanical shaft seal
- O-ring casing seal
- Pressure switch control
MOTOR
- Davey manufactured
- 2 pole, 2850rpm/50Hz or 3420rpm/60Hz
- TEFC with IP55 enclosure
- Class F insulation
- Permanently split capacitor design
- Double contact C3-HTG rated sealed ball bearings
- In-built thermal overload protection
- Plastic feet on motor shell
PRESSURE TANK
- Captive diaphragm design
- Heavy duty Butyl diaphragm meets health requirements for potable water applications
- Deep drawn steel shell with appliance like 2 part paint finish
BENEFITS
- Manufactured from quality corrosion resistant materials
- TEFC motor-corrosion resistant and excludes dust and dirt
- Motor and pump designed for frequent starts
- Discharge may be rotated through 180º - makes plumbing easier
- Quick and easy installation
- Low maintenance
- Easy to service if required
Details
Davey XP35P8 Jet Assisted Centrifugal Pump - The Weekender Series W2

INSTALLATION & PRIMING
- On installations with suction lifts over 1m, a good quality foot valve should be fitted to avoid loss of prime. In this case the check valve inside the pump should be removed.
- The system is primed by removing the pressure tank, filling with water and replacing the tank prior to switch on.
