Jet FWJ 203 AU
Available Online
-
General

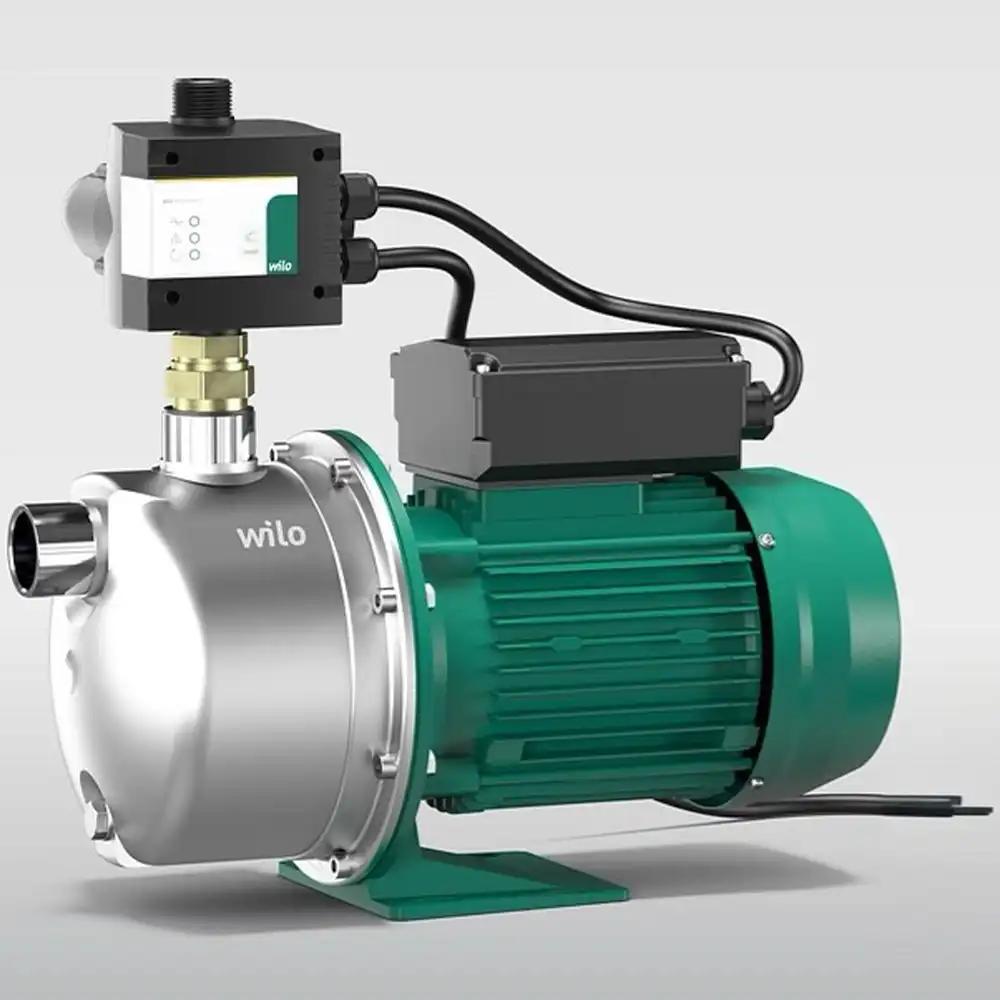

Wilo Jet FWJ 203 AU Water Pump (2553532)
The Wilo Jet FWJ 203 AU is a powerful self-priming jet pump engineered for reliable water supply and irrigation applications. Operating at 1~230 V and 50 Hz with a robust 0.75 kW motor, it delivers up to 83 L/min and reaches a maximum head of 39 m, all within a durable stainless steel construction designed for both efficiency and longevity.
FEATURES
Stainless Steel Durability
Featuring a stainless steel pump housing, impeller, and shaft, this model provides exceptional resistance to corrosion for long-lasting performance.
Efficient Motor and Controls
Powered by a 0.75 kW motor (rated current 5.2 A) with built-in thermal protection and IP44 rating, this pump ensures safe, continuous operation with reliable performance.
Self-Priming Capability
Designed with a self-priming jet mechanism and integrated automatic pump control, it is ideal for outdoor use in garden irrigation and rainwater reuse, featuring dry-run protection for added reliability.
Key Features
- Brand: Wilo
- Model: Jet FWJ 203 AU
- Article number: 2553532
- Mains connection: 1~230 V, 50 Hz
- Rated power: 0.75 kW
- Rated current: 5.2 A
- Maximum flow rate: 83 L/min
- Maximum head: 39 m
- Stainless steel hydraulic components (housing, impeller, shaft)
- Self-priming with automatic pump control
- Thermal motor protection (IP44)
- Built-in dry-run protection
- Corrosion-resistant design for long service life
- Approved for outdoor irrigation and rainwater use
Package Dimensions
- Packaging type: Cardboard box
- Packaging property: Sales packaging
- Pieces per pallet: 12
- Number per layer: 6
- Length (with packaging): 480 mm
- Length L: 354 mm
- Height (with packaging): 490 mm
- Height H: 390 mm
- Width (with packaging): 280 mm
- Width W: 208 mm
- Gross weight: approx. 14.8 kg
- Net weight: approx. 12.1 kg
Package Contents
- 1 × Wilo Jet FWJ 203 AU Pump
- Pre-assembled cable with plug (Plug & Pump system)
- Installation and operating instructions
-
Documentation
Wilo Jet FWJ 203 AU Data Sheet
