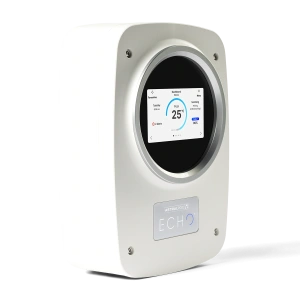

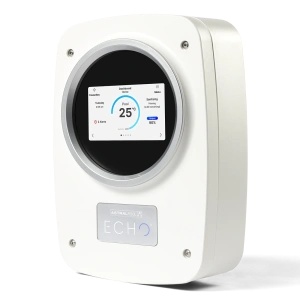

AstralPool Echo 18g - Salt Chlorinator

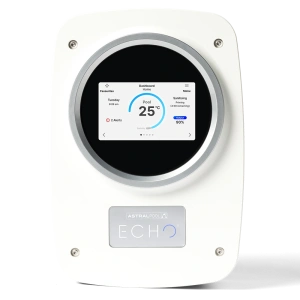

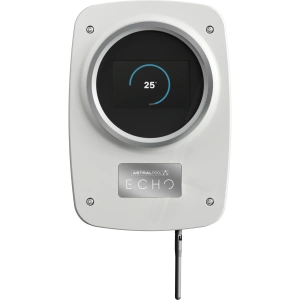

AstralPool Echo 18 Salt Chlorinator

The AstralPool Echo 18 is the smallest salt chlorinator in the Echo range, producing 18 grams of chlorine per hour for compact and courtyard pools. It is rated for pools up to 40,000 litres in tropical conditions, with capacity for a larger pool in a temperate climate. Made in Australia and certified to AS/NZS 3136, the Echo 18 also features sensorless acid feed for pH control. This allows acid to be dosed without a probe in the water, eliminating the need to calibrate, clean or replace a sensor. A separate doser kit is required.

KEY FEATURES

• Sensorless acid feed controls pH without a probe to calibrate, clean or replace. A separate doser kit is required.
• Titanium cell with a ruthenium and iridium coating, housed in clear acrylic for easy visibility.
• Automatic polarity reversal every 4 hours, adjustable up to 6 hours, helps clear scale from the cell plates.

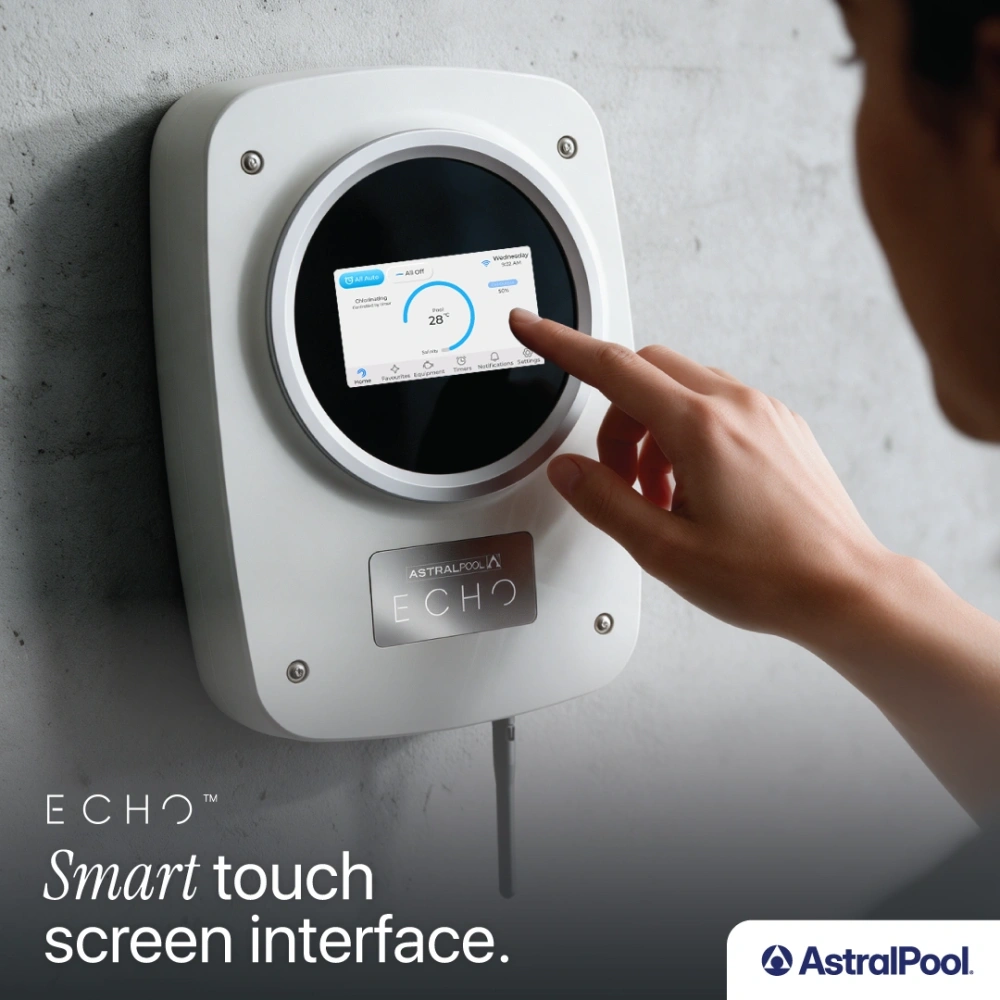

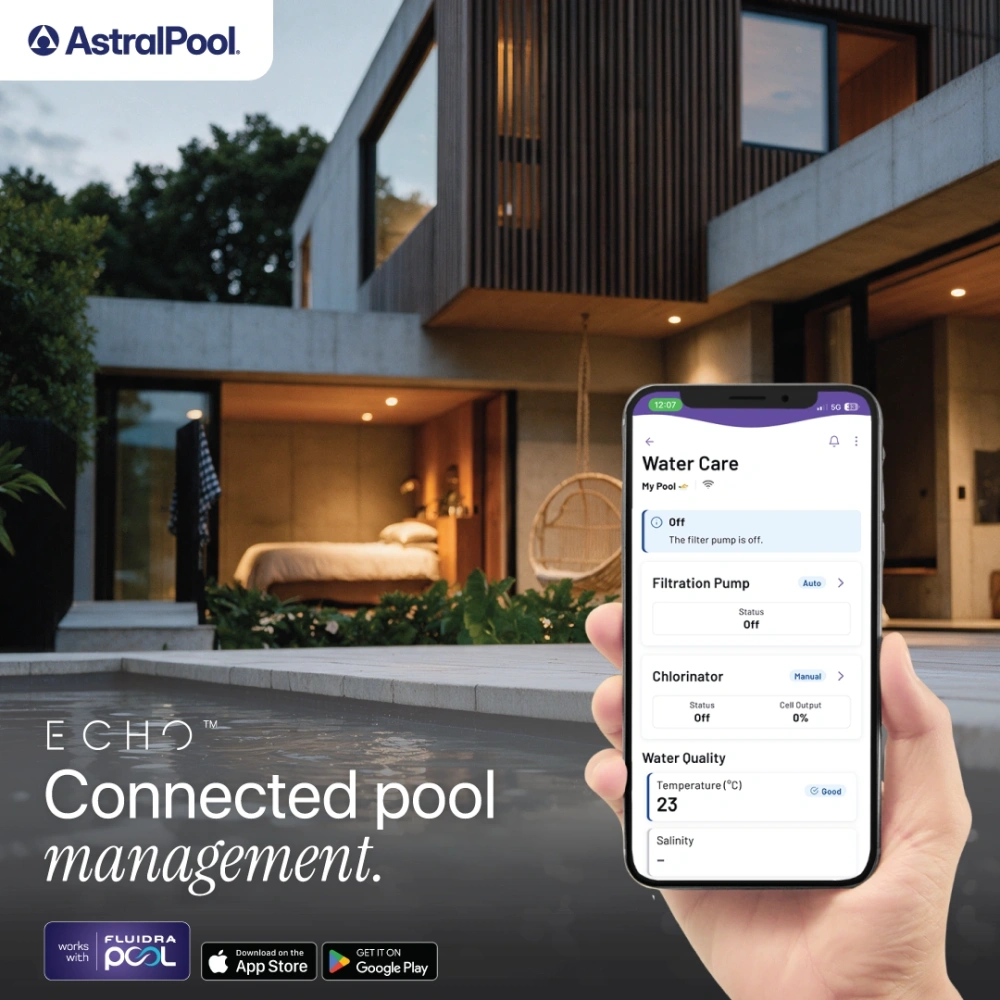

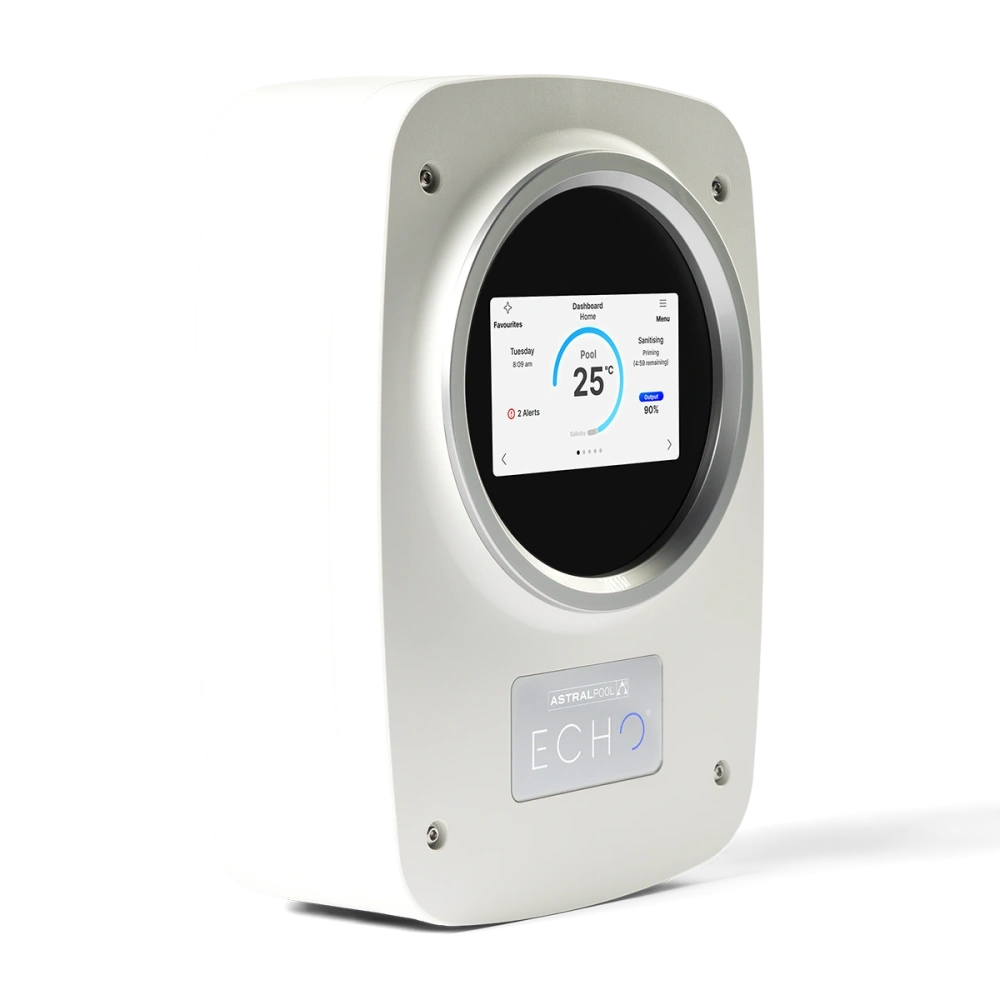

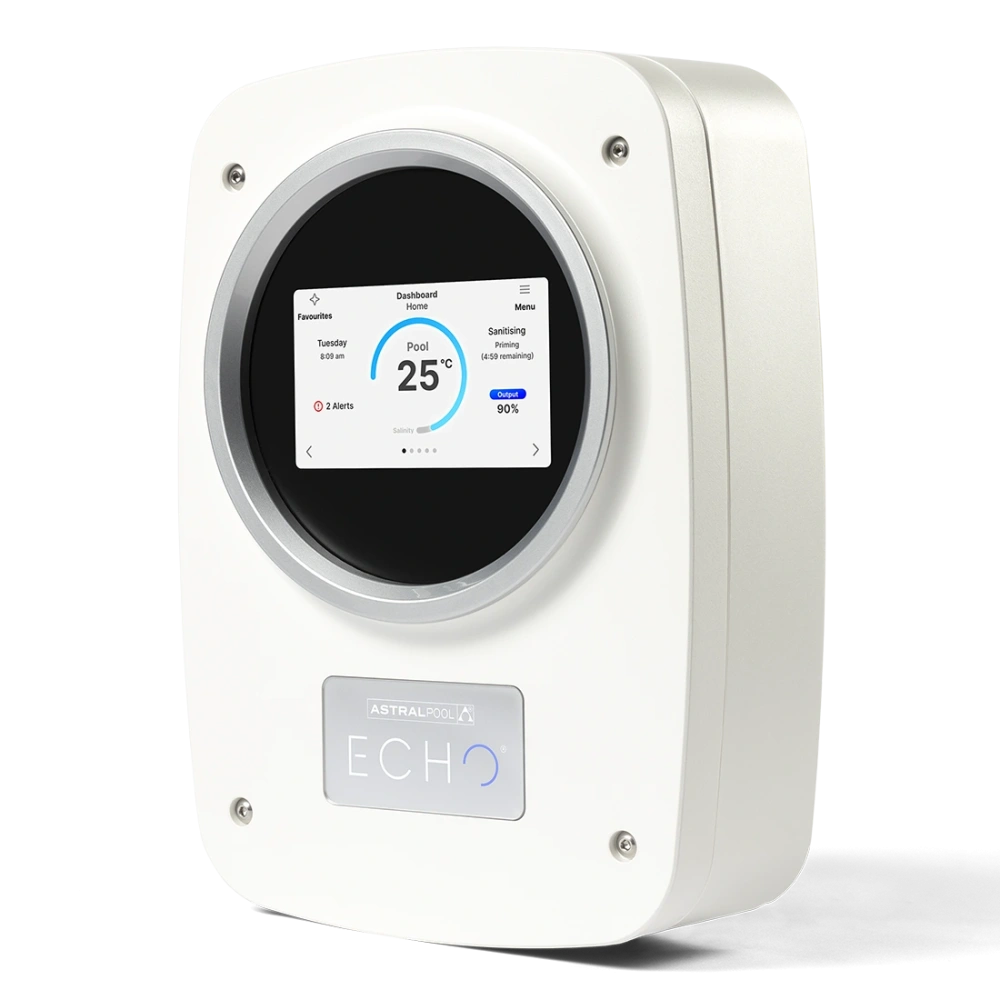

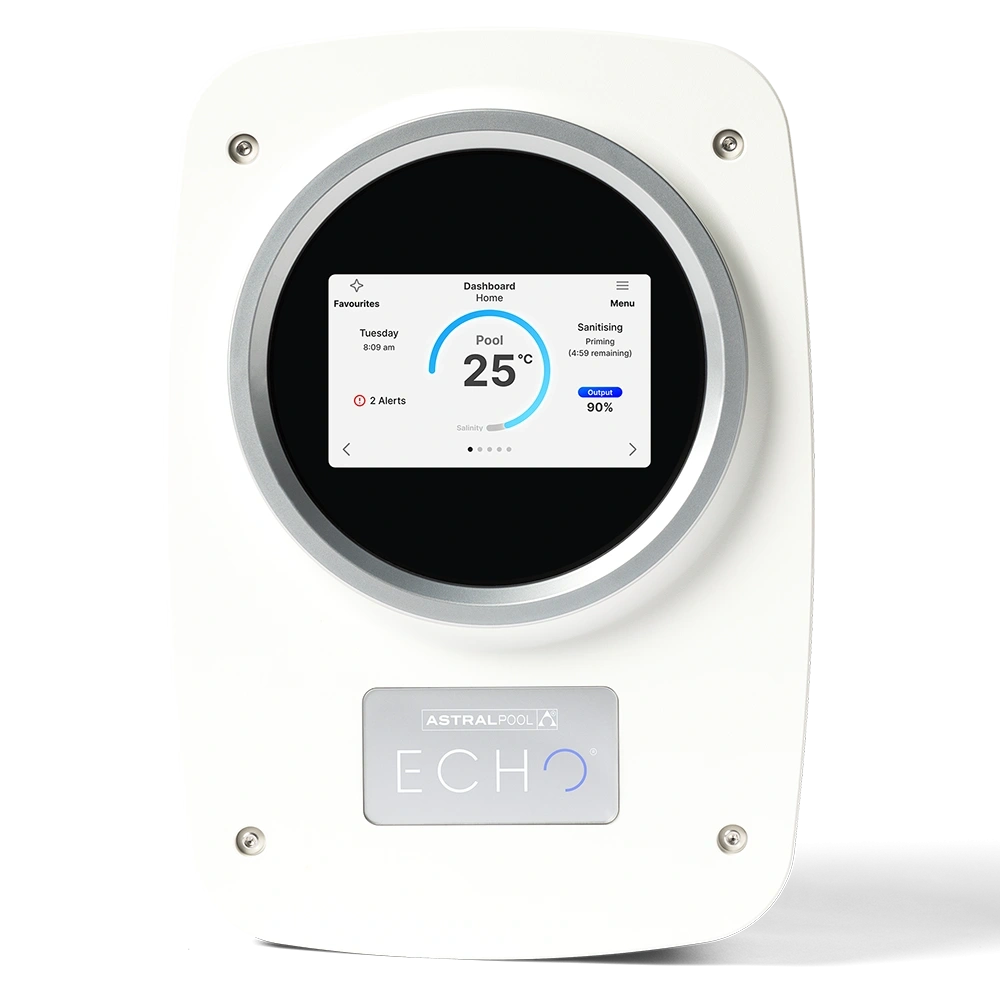

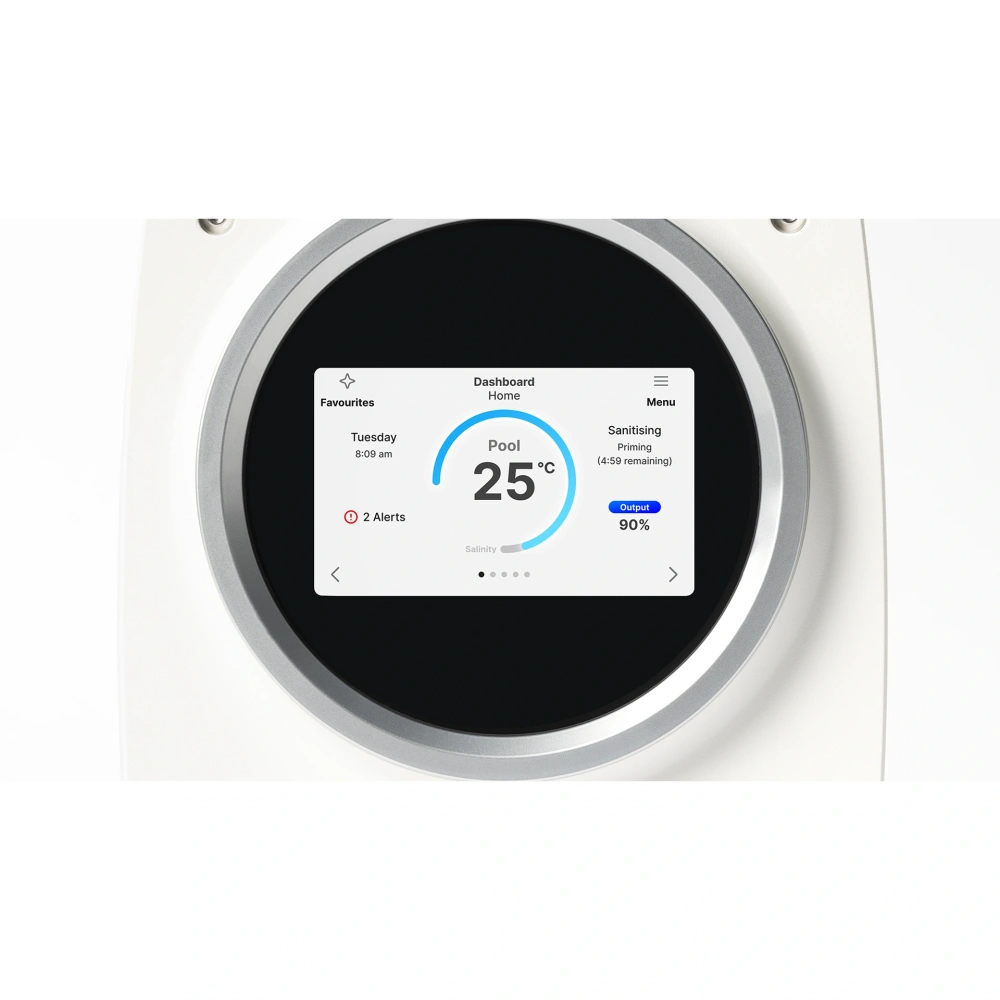

• Convenient control through the unit's touch screen or remotely using Bluetooth and Wi-Fi on your phone.
• Fine output adjustment lets you set chlorine production in smaller increments.
• All Seasons mode reduces chlorine production as the water temperature cools.
• Boost mode increases chlorine production to help meet demand during hot weather or periods of heavy pool use.
• Spa mode adjusts operation for a smaller volume of water.
• Built-in water-flow protection stops chlorine production when water is not flowing.
• High and low salt alarms alert you when the salt level is outside the required range.

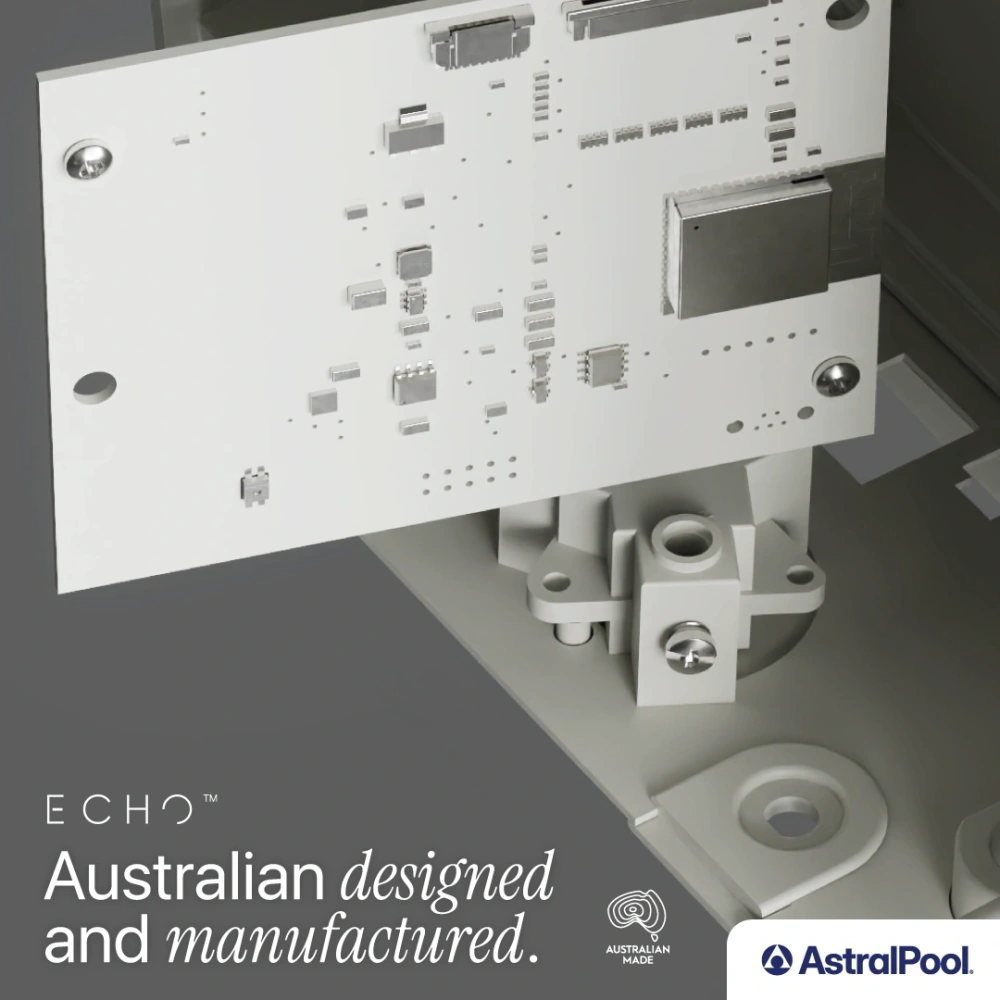

• Made in Australia and certified to AS/NZS 3136.
• Spare parts are available for at least 5 years.

WARRANTY

4 Years*
4 years on Powerpack, 3 Years on Cell/Electrode

SPECIFICATIONS

• Model: ECHO 18
• Chlorine output: 18 g/hr
• Max pool volume: 40,000 L (tropical)
• Climate / environment: Tropical
• Probe based / multi device: No probes, sensorless acid feed (needs additional doser kit)
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: Yes
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 11
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Plumbing connections: 40 and 50 mm
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
