AstralPool Echo 45g - Salt Chlorinator

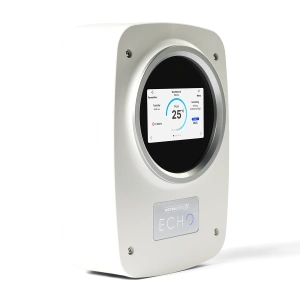

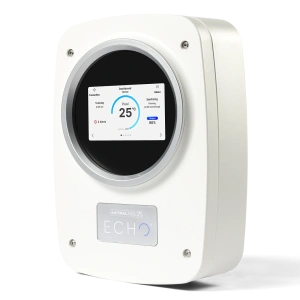

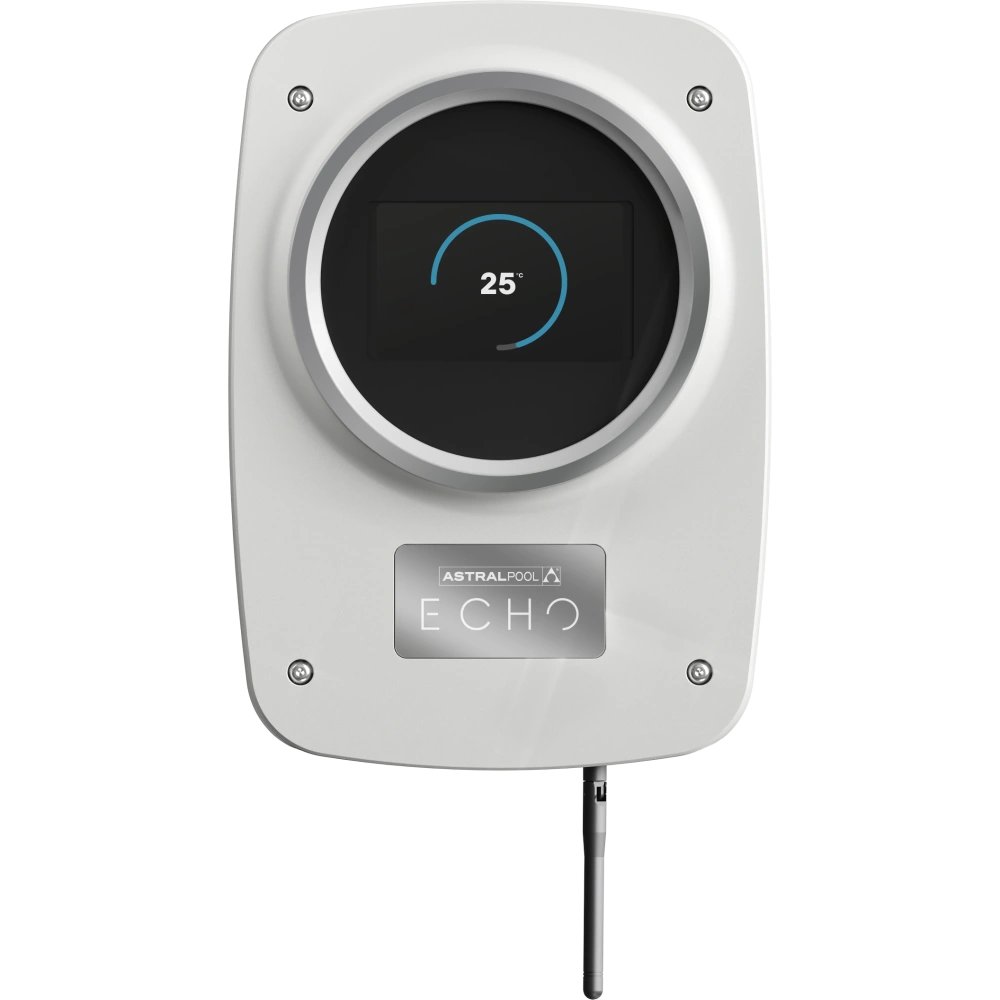

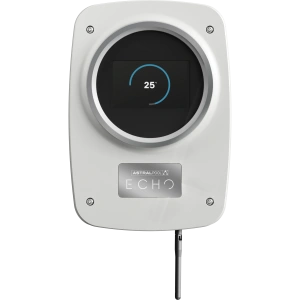

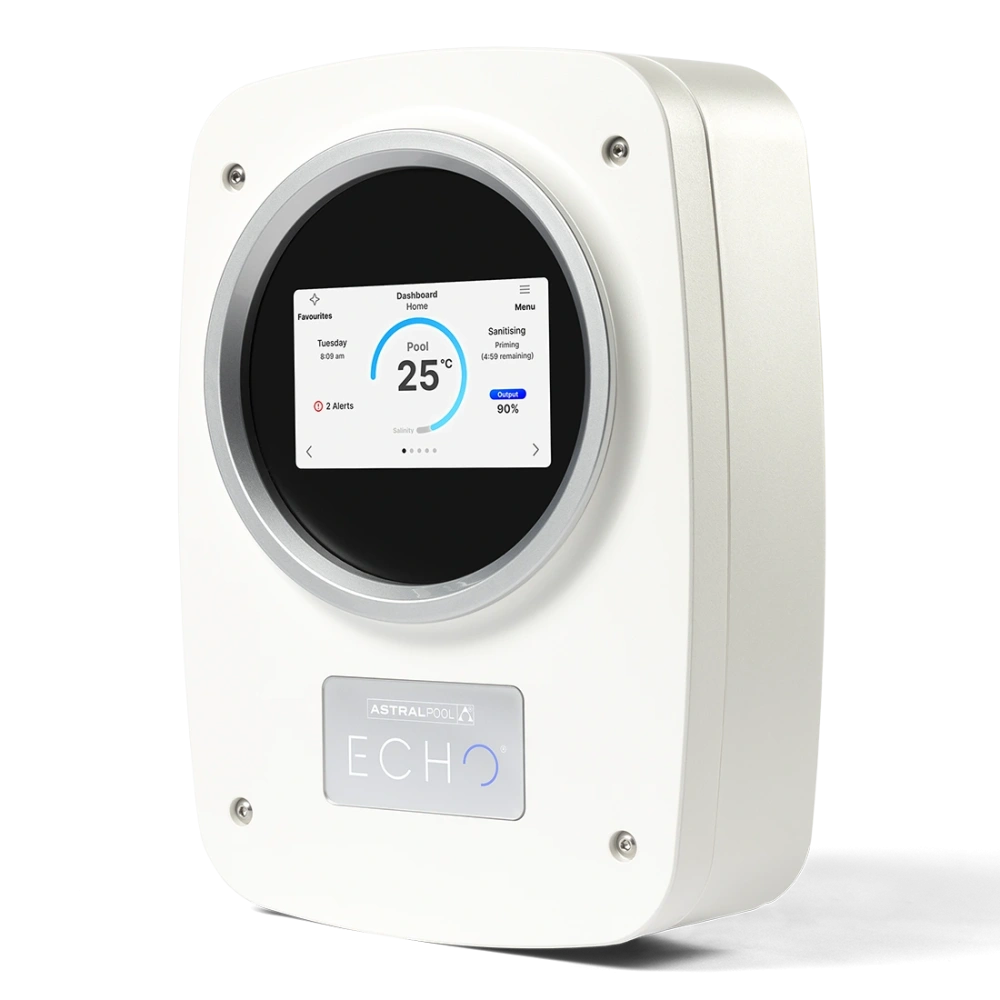

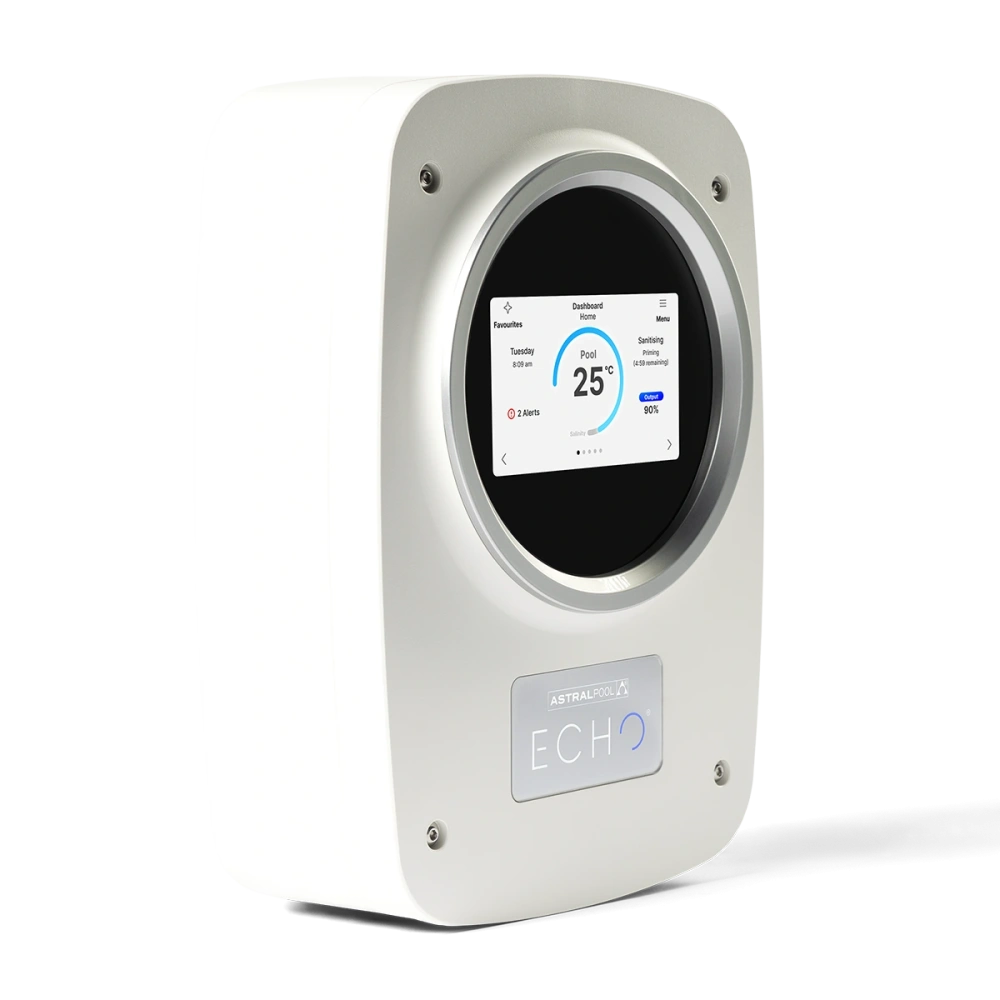

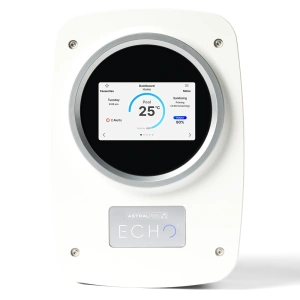

AstralPool Echo 45 Salt Chlorinator

The AstralPool Echo 45 is the highest-output model in the Echo range, producing 45 grams of chlorine per hour and rated for pools up to 105,000 litres in tropical conditions. It is made in Australia and certified to AS/NZS 3136. The unit also features sensorless acid feed, allowing acid to be dosed for pH control without a probe in the water. This removes the need to calibrate, clean or replace a sensor, although a separate doser kit is required. With touch screen controls and Bluetooth and Wi-Fi connectivity, settings and operating modes can be managed from the unit or a phone.

KEY FEATURES

• Highest chlorine output in the Echo range, producing 45 grams of chlorine per hour.

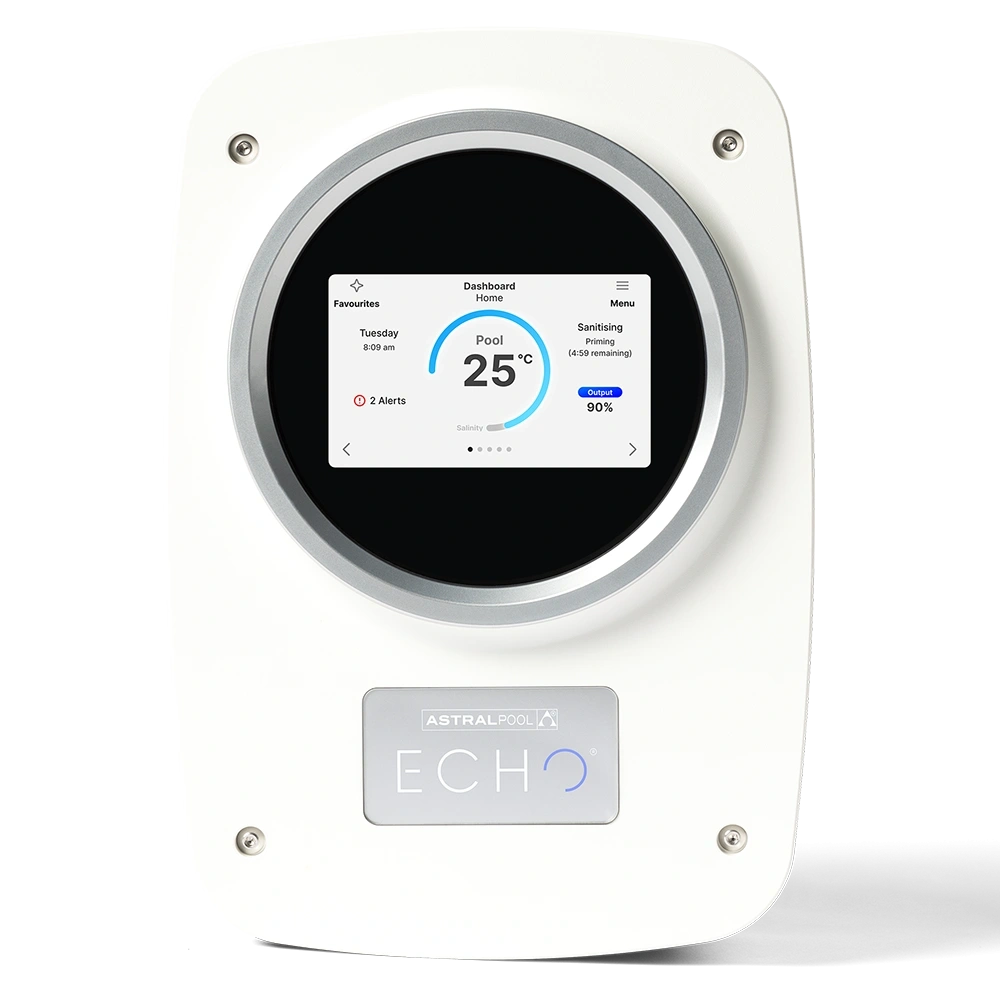

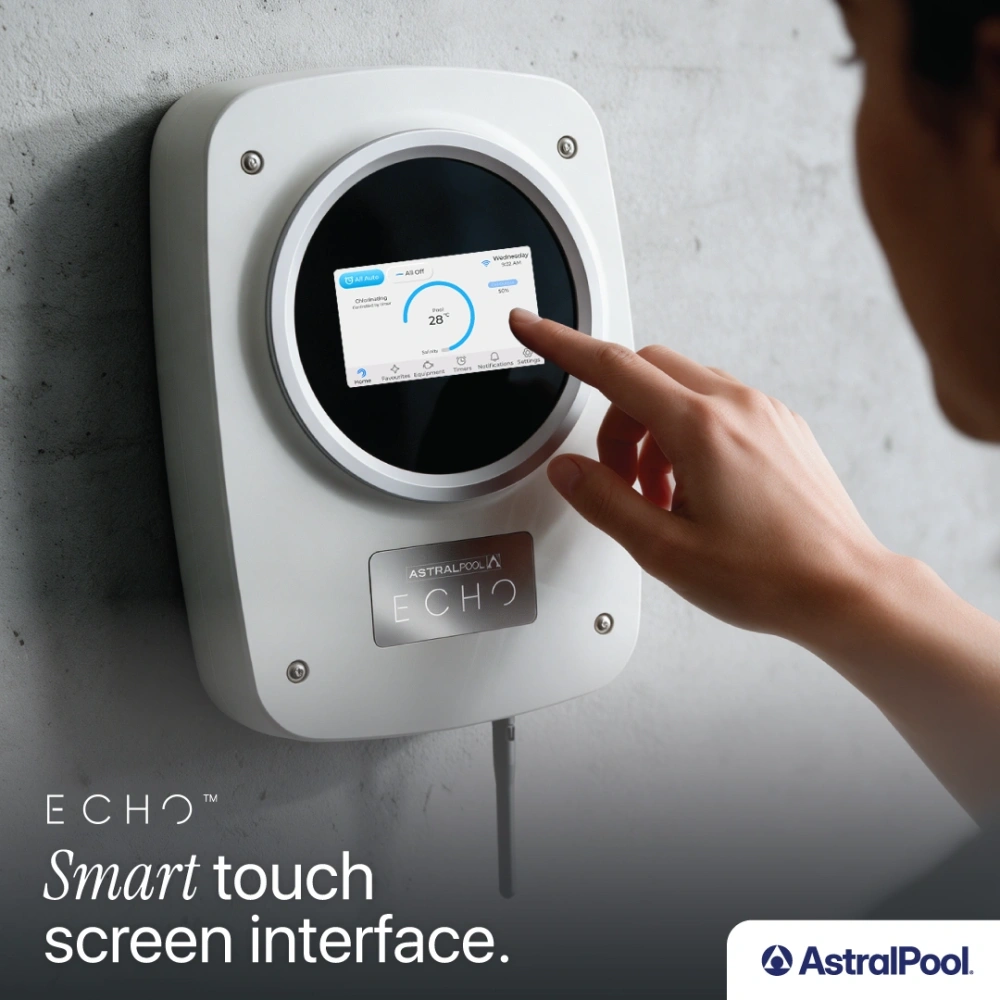

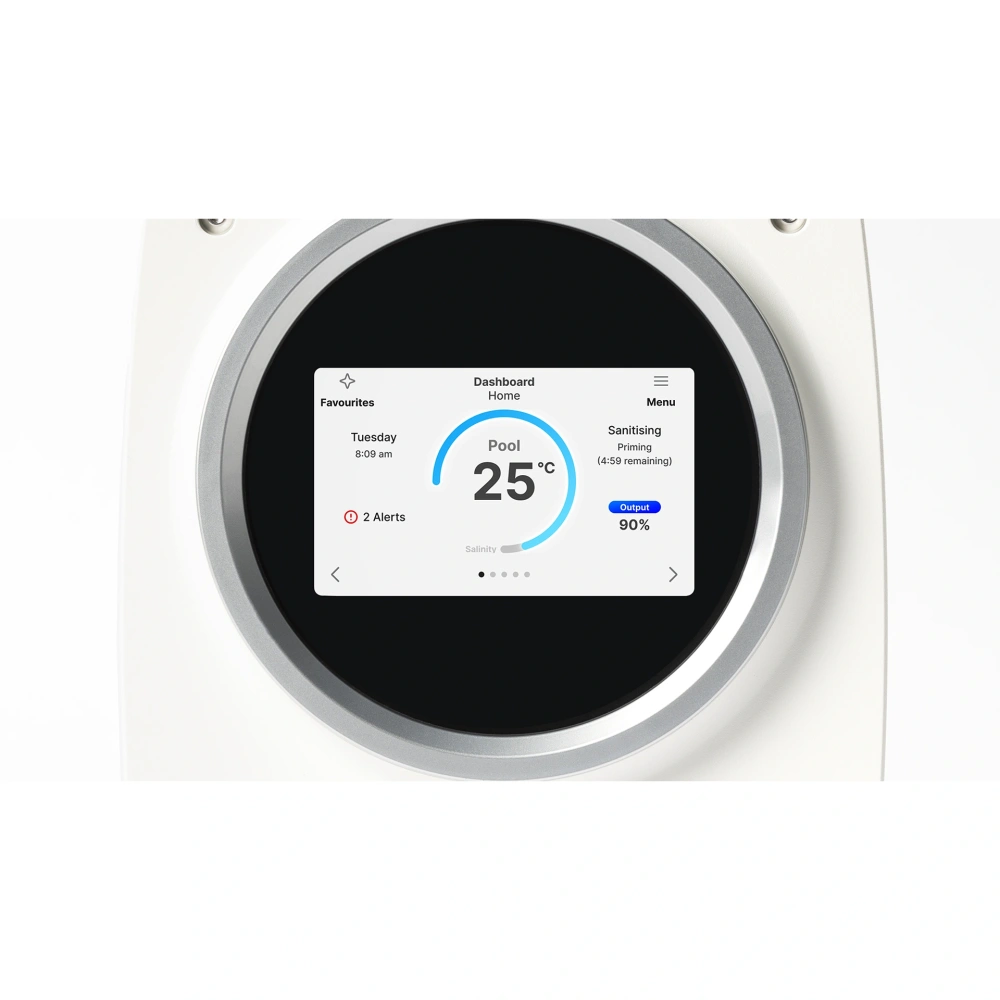

• Touch screen controls on the unit, with Bluetooth and Wi-Fi connectivity for phone control of output, timers and operating modes.
• Fine output adjustment lets you set chlorine production in smaller increments.
• Sensorless acid feed supports pH dosing without a probe in the water. An additional doser kit is required.
• Titanium cell with a ruthenium and iridium coating, housed in clear acrylic.
• Self-cleaning polarity reversal occurs every 4 hours and can be adjusted up to 6 hours to help control scale build-up.
• All Seasons mode reduces chlorine production during cooler months as water temperatures fall.
• Boost mode temporarily increases chlorine production, while Spa mode reduces output for smaller volumes of water.
• No-flow detection stops chlorine production when water is not flowing through the cell.
• A salt level alarm alerts you when salt levels are too high or too low.
• The cell's low-temperature stop can be enabled or disabled as required.
• Built-in overload and short circuit protection helps protect the unit during operation.

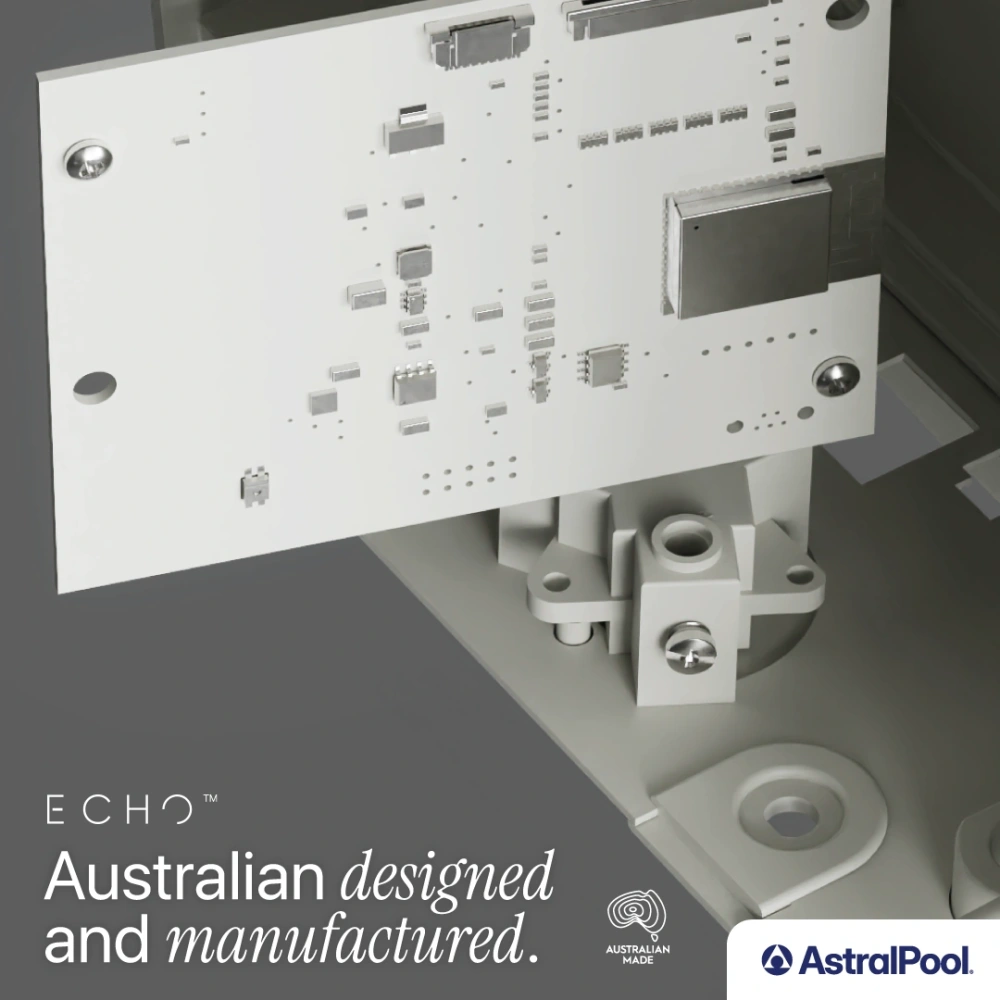

• Made in Australia and certified to AS/NZS 3136.
• Spare parts are available for at least 5 years.

WARRANTY

4 Years*
4 years on Powerpack, 3 Years on Cell/Electrode

SPECIFICATIONS

• Model: ECHO 45
• Chlorine output: 45 g/hr
• Max pool volume: 105,000 L (tropical)
• Climate / environment: Tropical
• Probe based / multi device: No probes, sensorless acid feed (needs additional doser kit)
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: Yes
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 14
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
