AstralPool Solo 18g - Salt Chlorinator

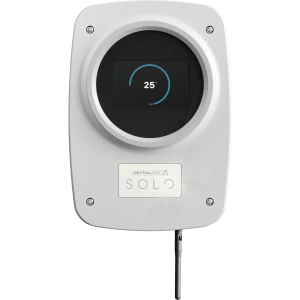

AstralPool Solo 18 Salt Chlorinator

The AstralPool Solo 18 is the entry model in the Solo range, producing 18 grams of chlorine per hour. Designed for compact and courtyard pools, it is rated for pools up to 40,000 litres in tropical conditions, with a greater capacity in temperate climates. Like the rest of the range, it is made in Australia and certified to AS/NZS 3136.

The Solo is a standalone chlorinator designed specifically for chlorination, with no probes or connected equipment. This keeps installation and day-to-day operation simple. Settings can be adjusted using the unit's touch screen or from your phone via Bluetooth and Wi-Fi, allowing the chlorinator to run independently once configured.

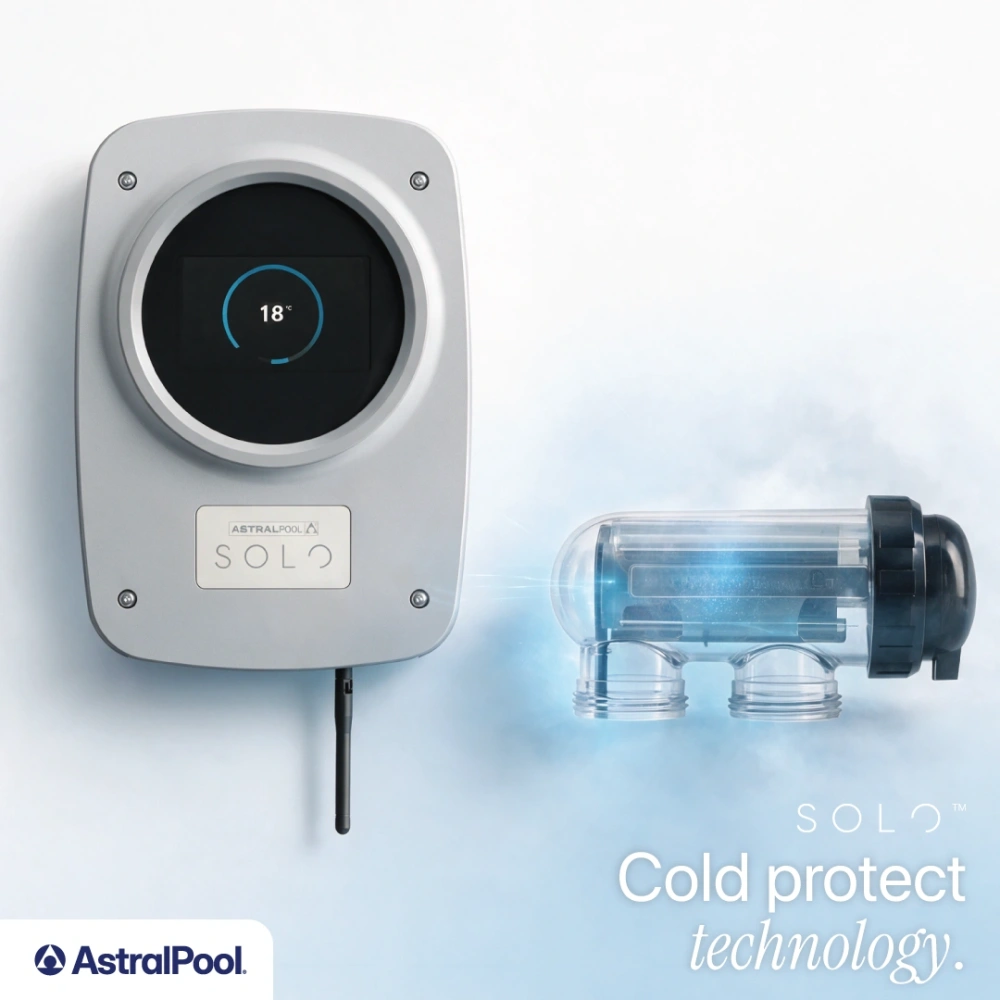

The cell features titanium plates with a ruthenium and iridium coating, housed in clear acrylic so its condition can be checked without removing it. Polarity reverses every four hours to help shed scale, while All Seasons mode reduces chlorine production as the water cools rather than maintaining summer output throughout the year.

KEY FEATURES

• Standalone chlorinator designed for chlorine production only, with no probes or connected equipment required.
• Produces 18 g/hr of chlorine and is rated for pools up to 40,000 litres in tropical conditions.

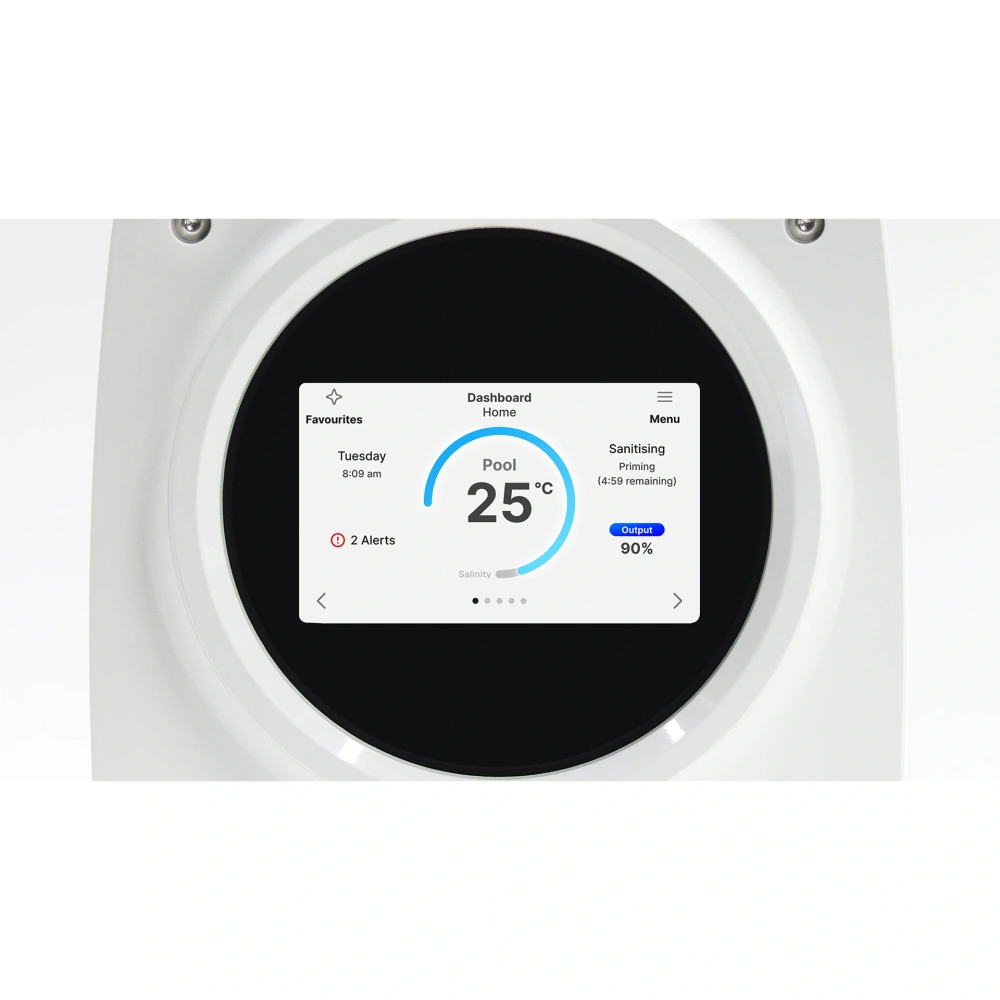

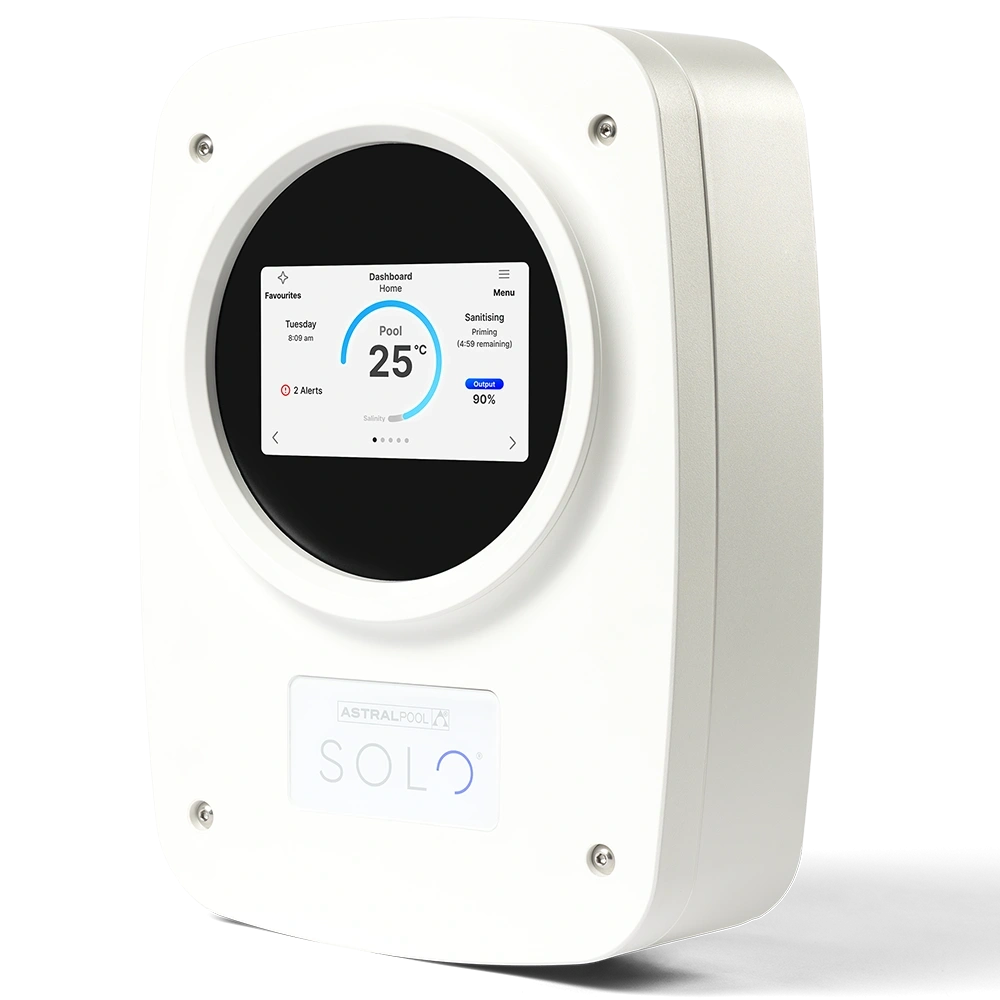

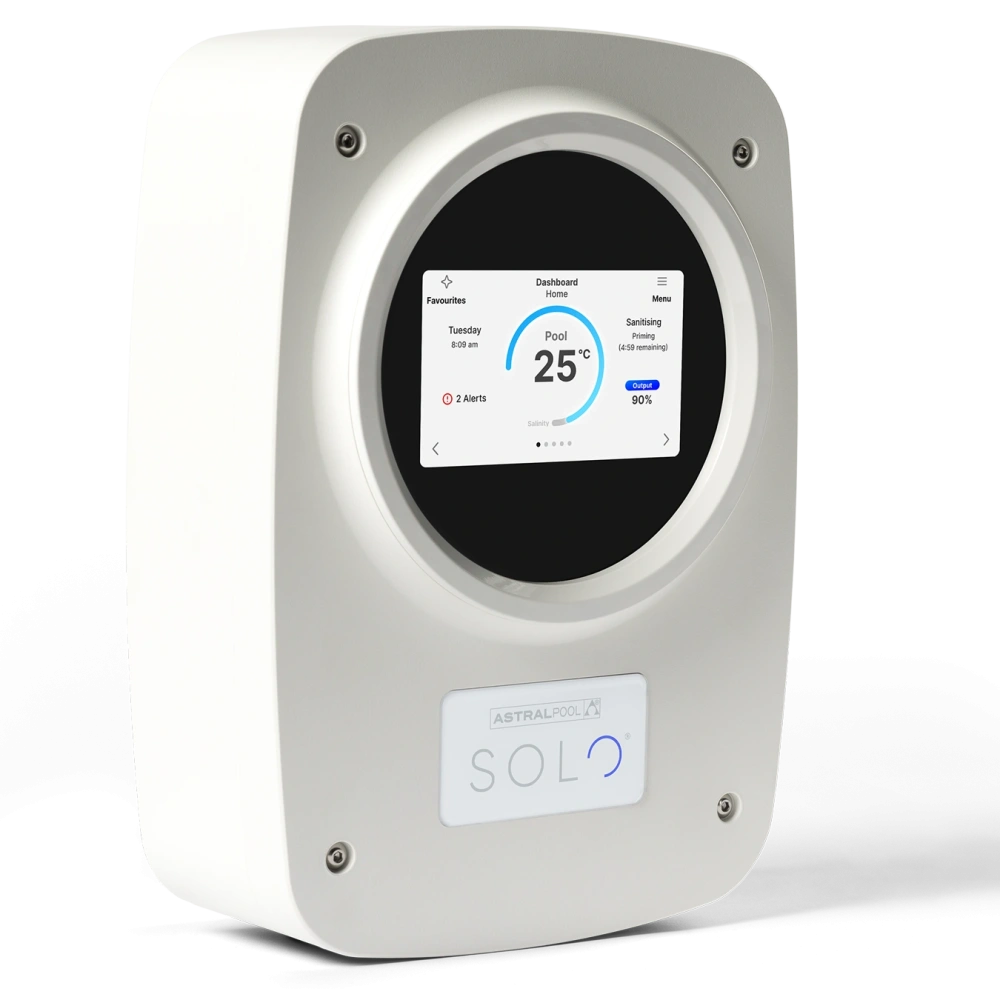

• Touch screen control on the unit makes it easy to adjust settings and operating modes.

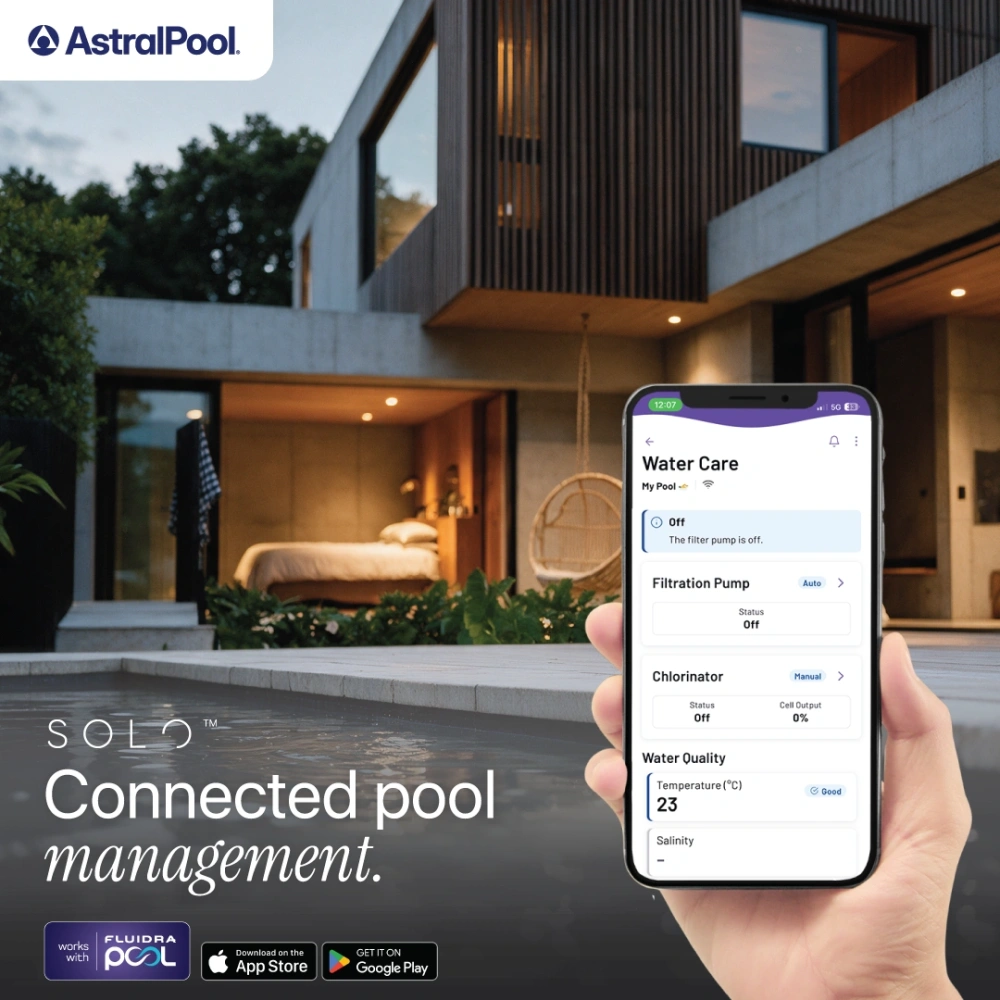

• Bluetooth and Wi-Fi connectivity allows you to control the chlorinator from your phone.
• Fine output adjustment and built-in timers provide flexibility when setting chlorine production.
• Titanium cell with ruthenium and iridium coating, featuring 11 plates in a clear acrylic housing.
• Automatic self-cleaning reverses cell polarity every 4 hours, with the interval selectable up to 6 hours.
• All Seasons mode reduces chlorine production as the water temperature drops.
• Boost mode increases output for hot weather or heavy use, while Spa mode is designed for smaller volumes of water.
• No-flow detection stops chlorine production when water is not flowing through the cell.
• High and low salt alarms alert you when the salt level is outside the required range.
• Protection includes a low-temperature cell stop that can be enabled or disabled, overload and short circuit protection, and high-temperature shutdown for the power supply.

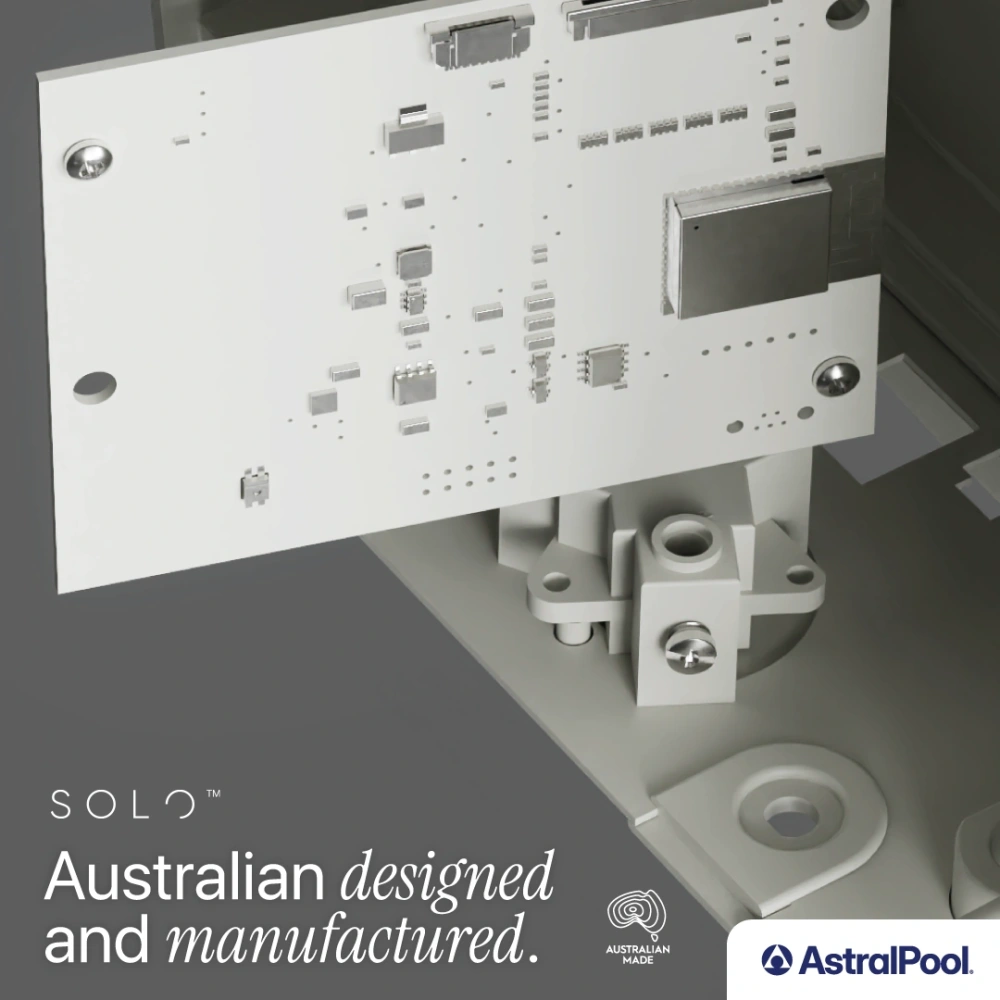

• Made in Australia and certified to AS/NZS 3136.
• Spare parts are available for at least 5 years.

WARRANTY

4 years on the power supply and 3 years on the cell/electrode. The cell has a life expectancy of 10,000 hours.

SPECIFICATIONS

• Model: SOLO 18
• Chlorine output: 18 g/hr
• Max pool volume: 40,000 L (tropical)
• Climate / environment: Tropical
• Probe based / multi device: No
• Display type: Touch Screen
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: 0.1
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 11
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Plumbing connections: 40 and 50 mm
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
