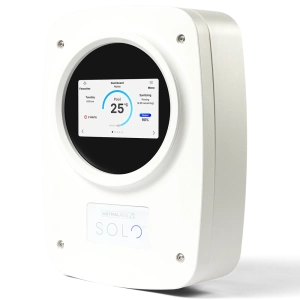

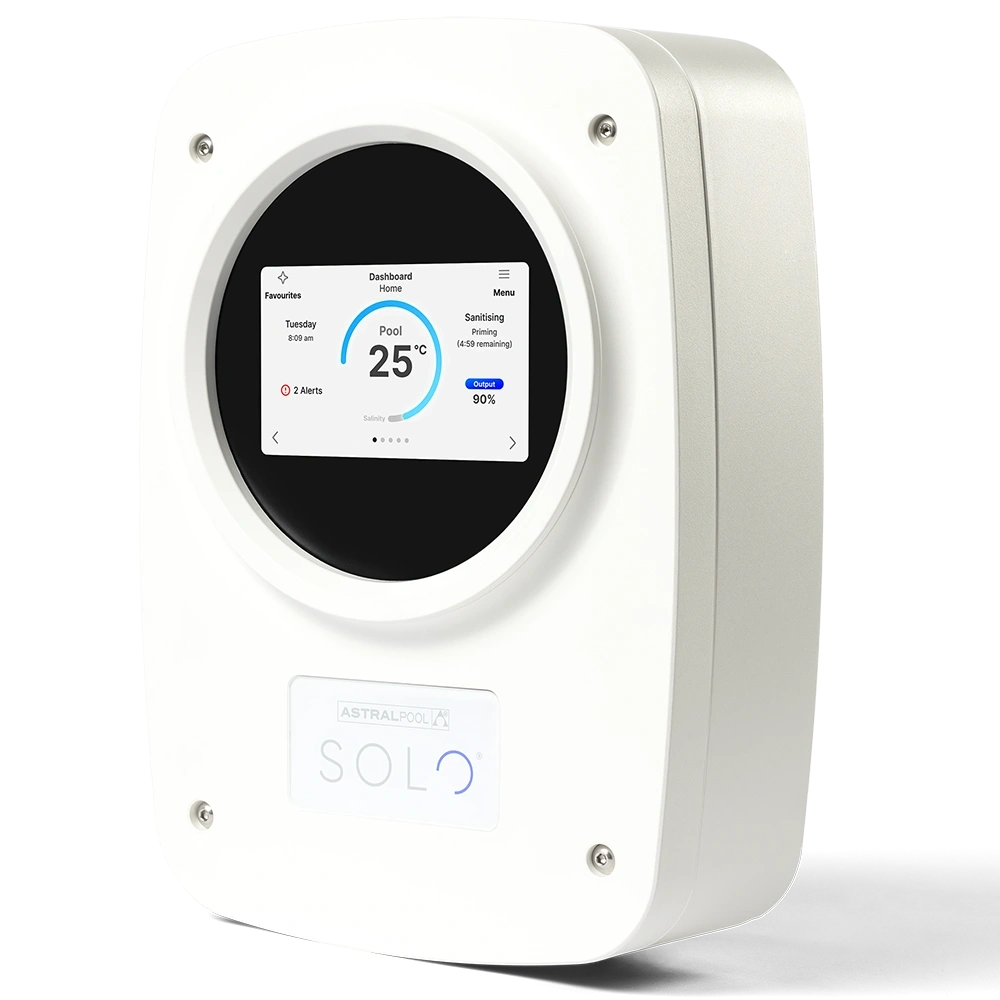

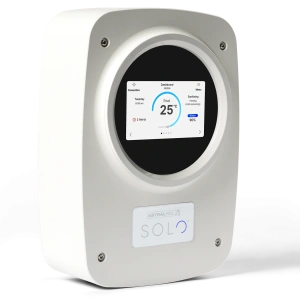

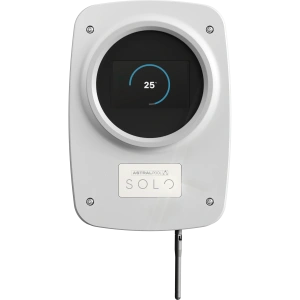

AstralPool Solo 35g - Salt Chlorinator

AstralPool Solo 35 Salt Chlorinator

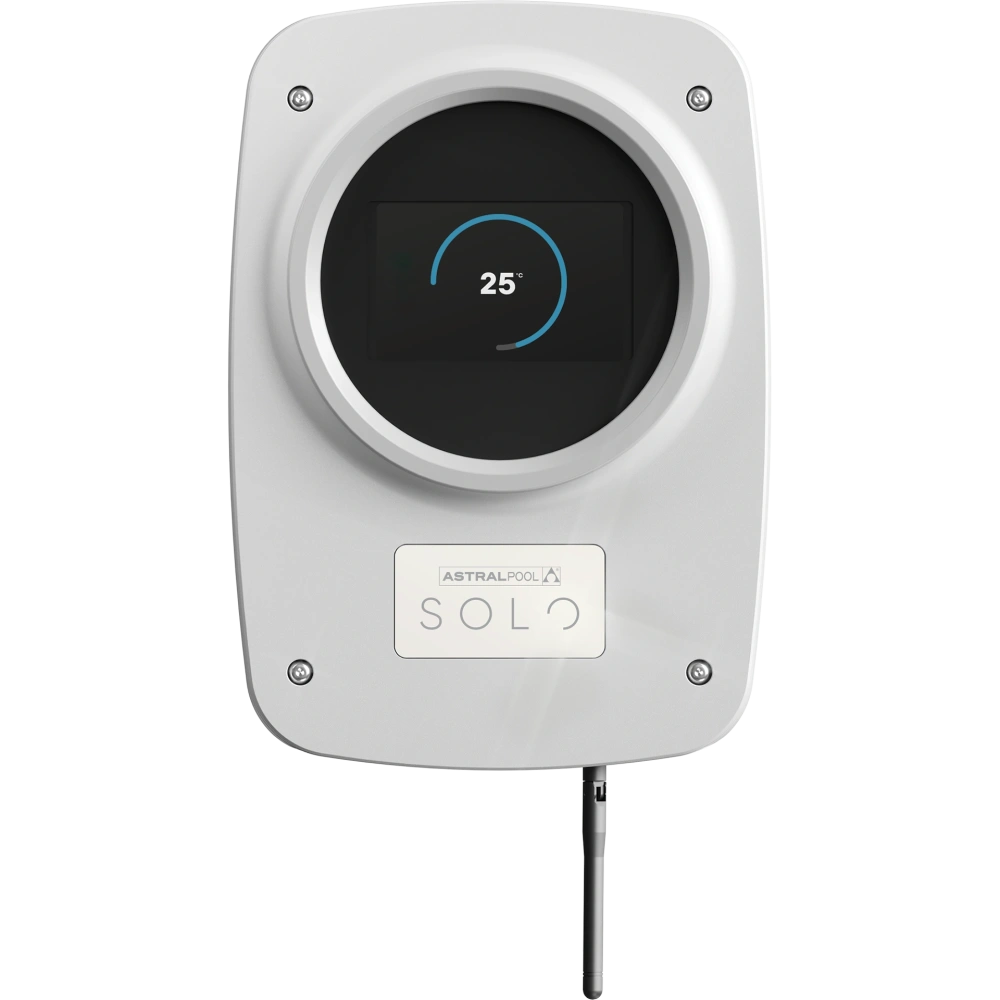

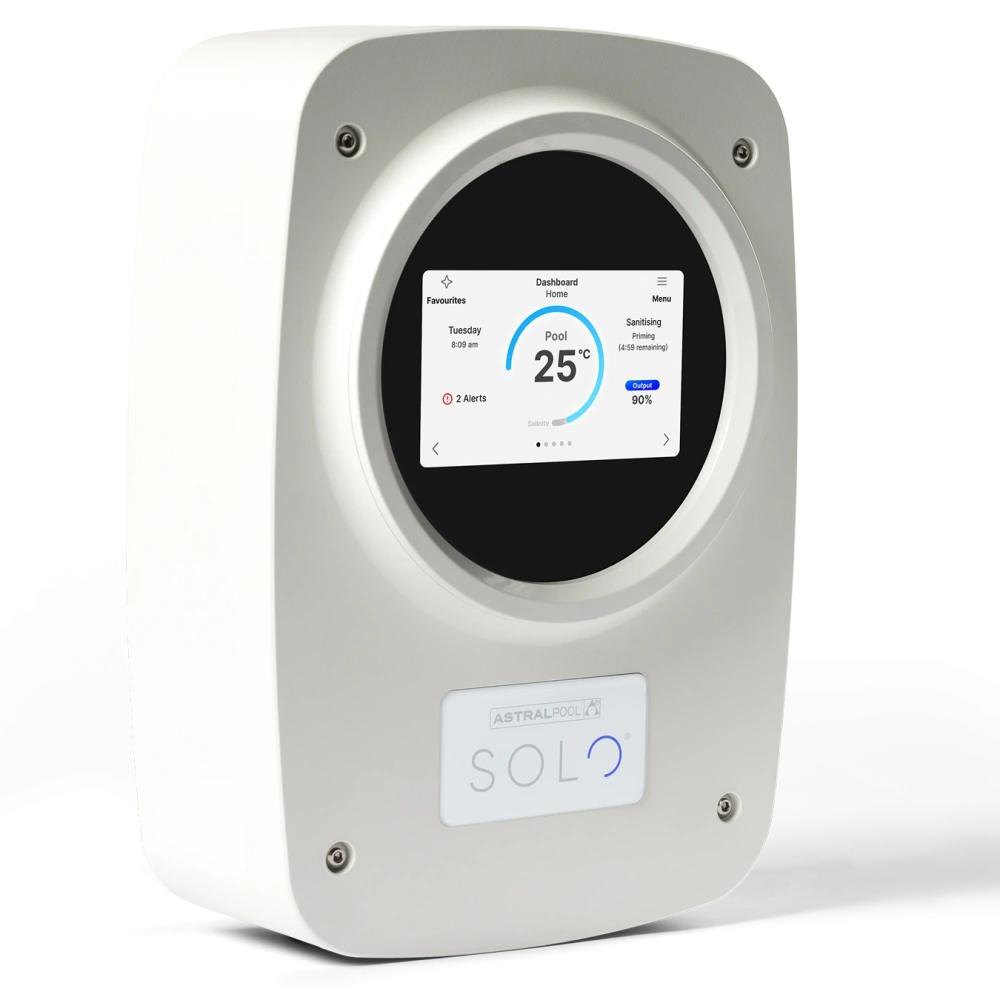

The AstralPool Solo 35 produces 35 grams of chlorine per hour for larger family pools and is rated for pools up to 80,000 litres in tropical conditions. It can be controlled using the unit's touch screen or from a phone via Bluetooth and Wi-Fi, with chlorine output adjustable in fine increments. The Solo 35 is made in Australia and certified to AS/NZS 3136.

As a standalone model, the Solo 35 manages chlorination without probes or other connected equipment. This keeps installation and daily use simple: configure the settings and let the unit operate independently.

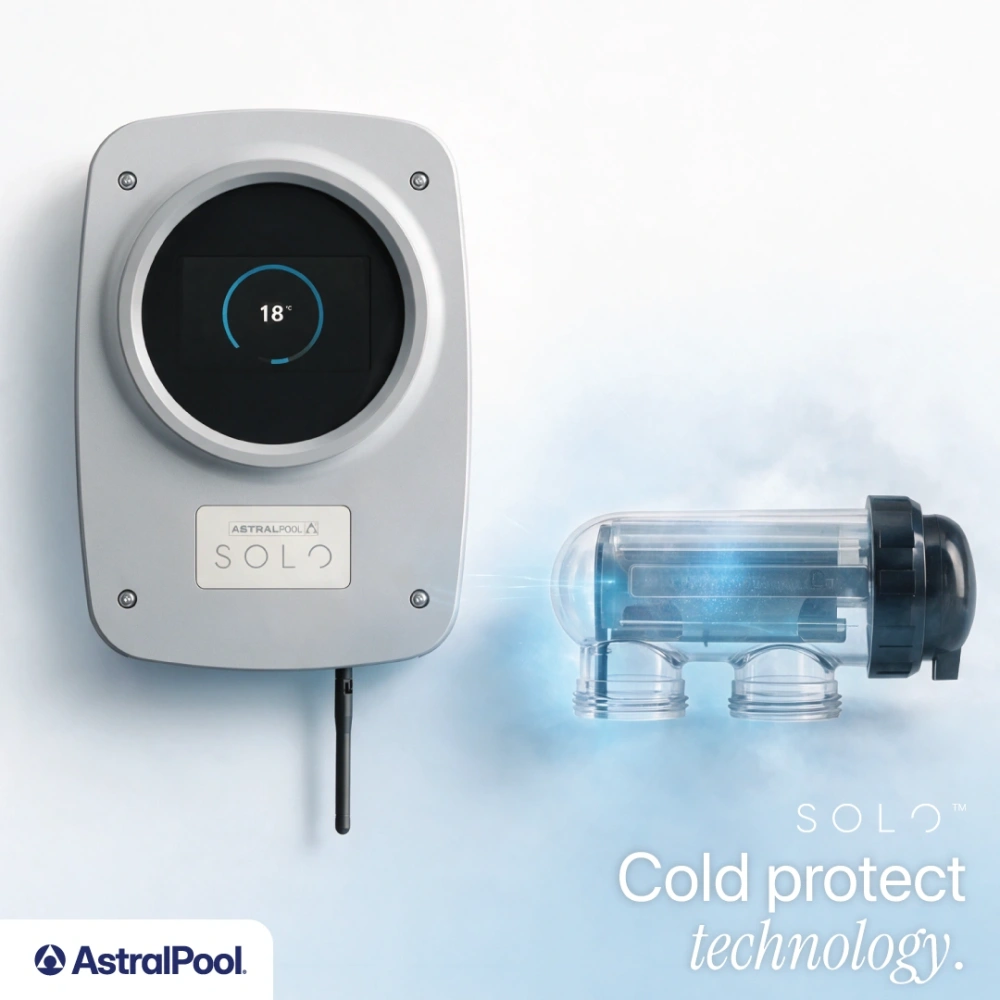

The cell features 13 titanium plates coated with ruthenium and iridium, housed in clear acrylic so its condition can be checked at a glance. Polarity reverses every four hours, with the interval selectable up to six hours, to help clear scale from the plates. All Seasons mode reduces chlorine production in cooler water, helping save salt and cell operating hours over winter.

KEY FEATURES

• Standalone chlorinator designed to manage chlorine production without probes or connected equipment.
• Produces 35 g/hr of chlorine and is rated for larger family pools up to 80,000 litres in tropical conditions.

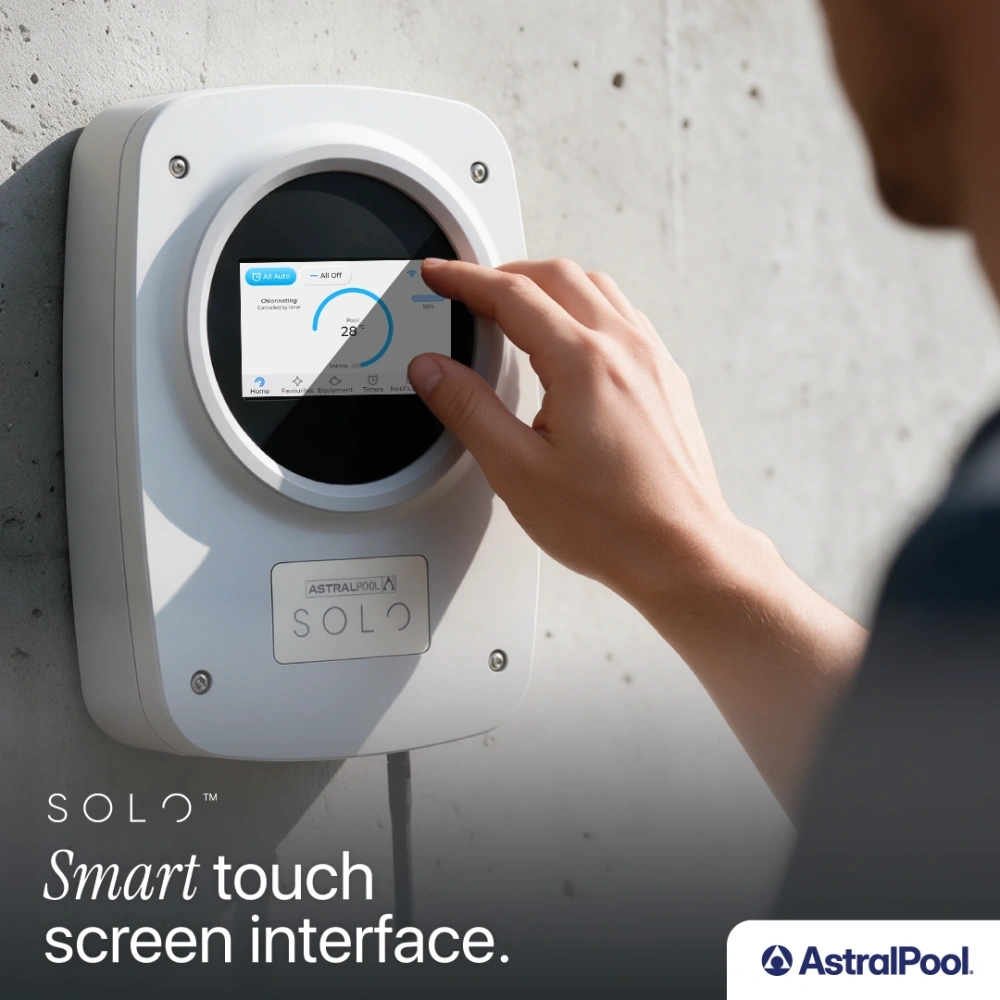

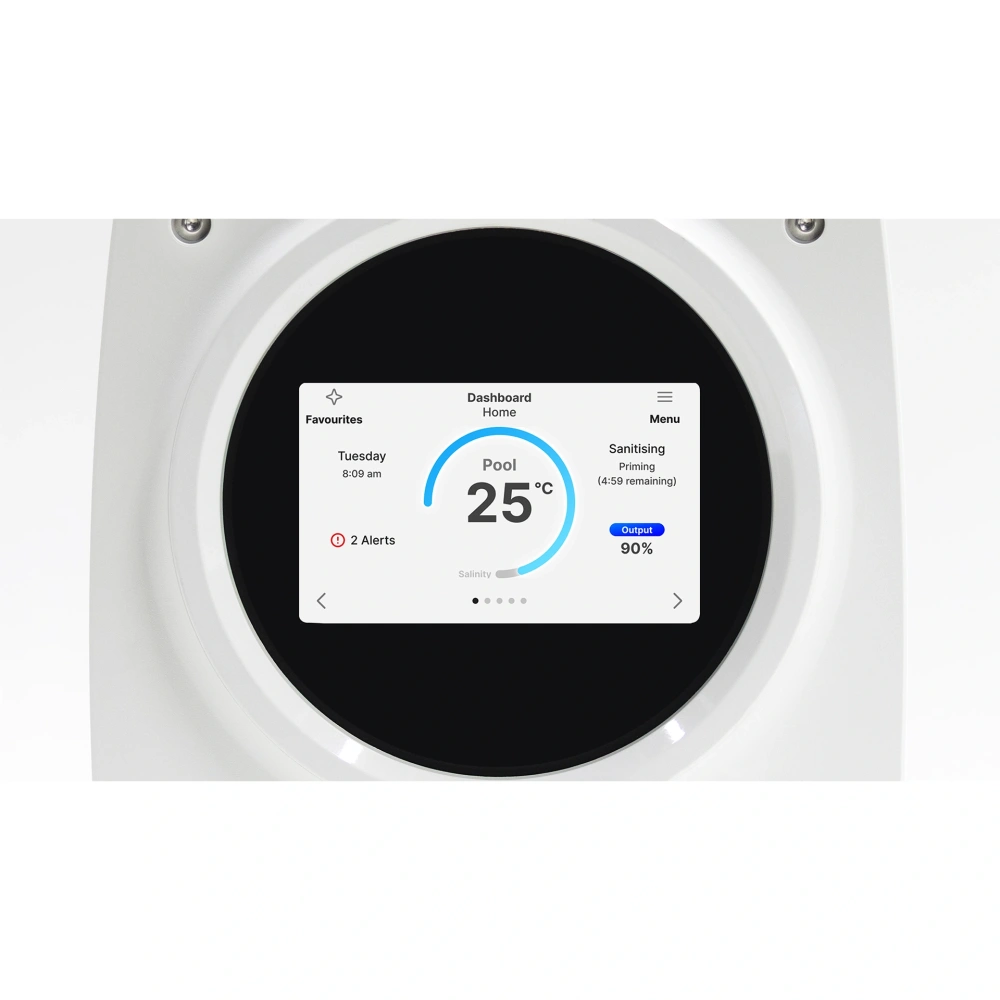

• Touch screen controls provide direct access to the chlorinator's settings and operating modes.

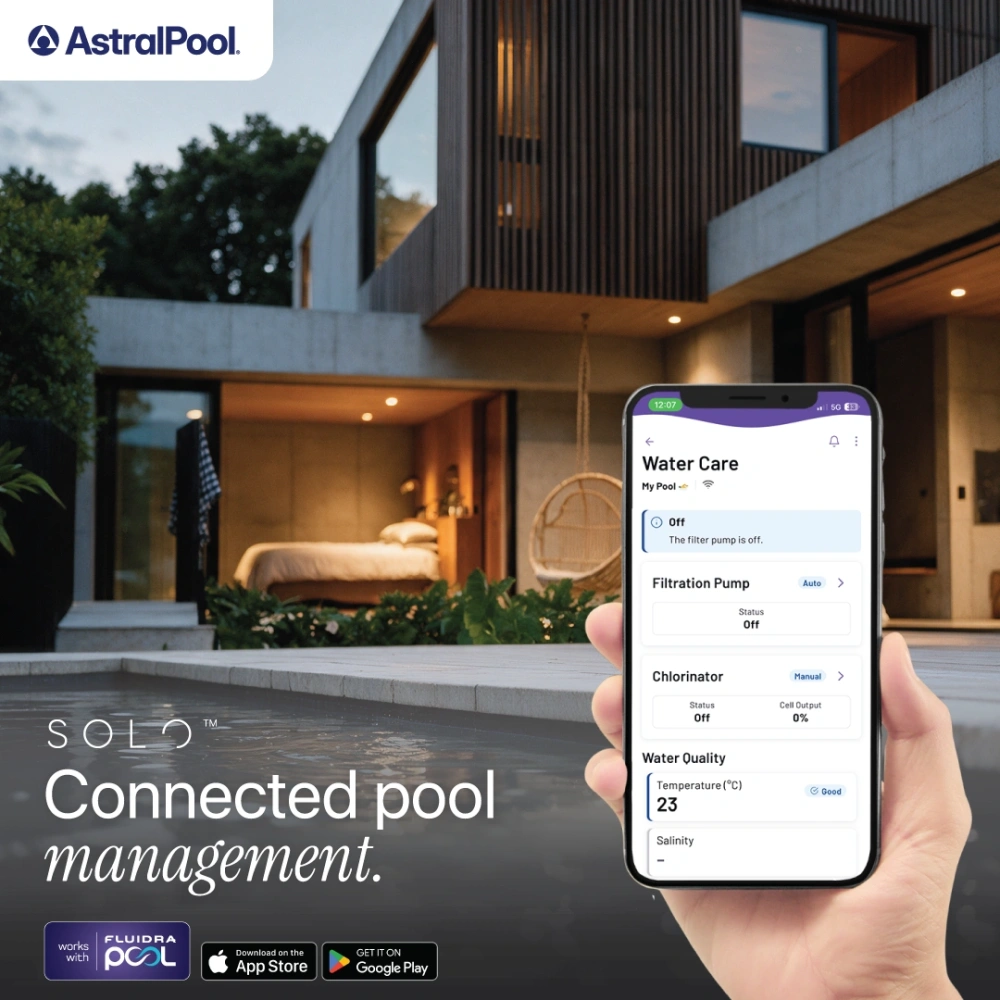

• Bluetooth and Wi-Fi connectivity allows you to control the unit from your phone, whether at the equipment pad or away from home.
• Fine output adjustment and built-in timers provide greater flexibility when setting chlorine production.
• Titanium cell with a ruthenium and iridium coating, featuring 13 plates housed in clear acrylic.
• Reverse-polarity self-cleaning operates every 4 hours, with the interval selectable up to 6 hours to help manage scale build-up.
• All Seasons mode reduces chlorine production as the water cools.
• Boost mode temporarily increases chlorine output, while Spa mode is designed for smaller water volumes.
• Chlorine production stops automatically if water stops flowing through the cell.
• A high and low salt alarm alerts you when salt levels are outside the required range.
• Protection includes a low-temperature cell stop that can be enabled or disabled, overload and short circuit protection, and high-temperature shutdown for the power supply.
• Made in Australia and certified to AS/NZS 3136.
• Spare parts are available for at least 5 years.

WARRANTY

4 years on the power supply and 3 years on the cell. The cell has a life expectancy of 10,000 hours.

SPECIFICATIONS

• Model: SOLO 35
• Chlorine output: 35 g/hr
• Max pool volume: 80,000 L (tropical)
• Climate / environment: Tropical
• Probe based / multi device: No
• Display type: Touch Screen
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: 0.1
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 13
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
