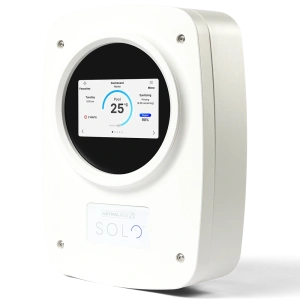

AstralPool Solo 45g - Salt Chlorinator

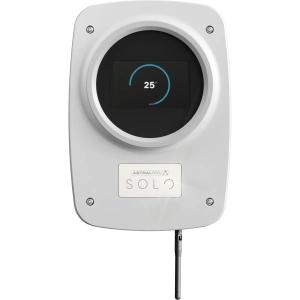

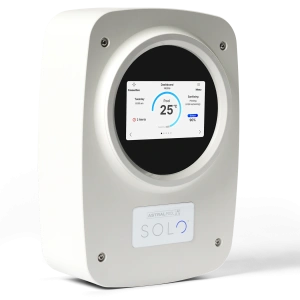

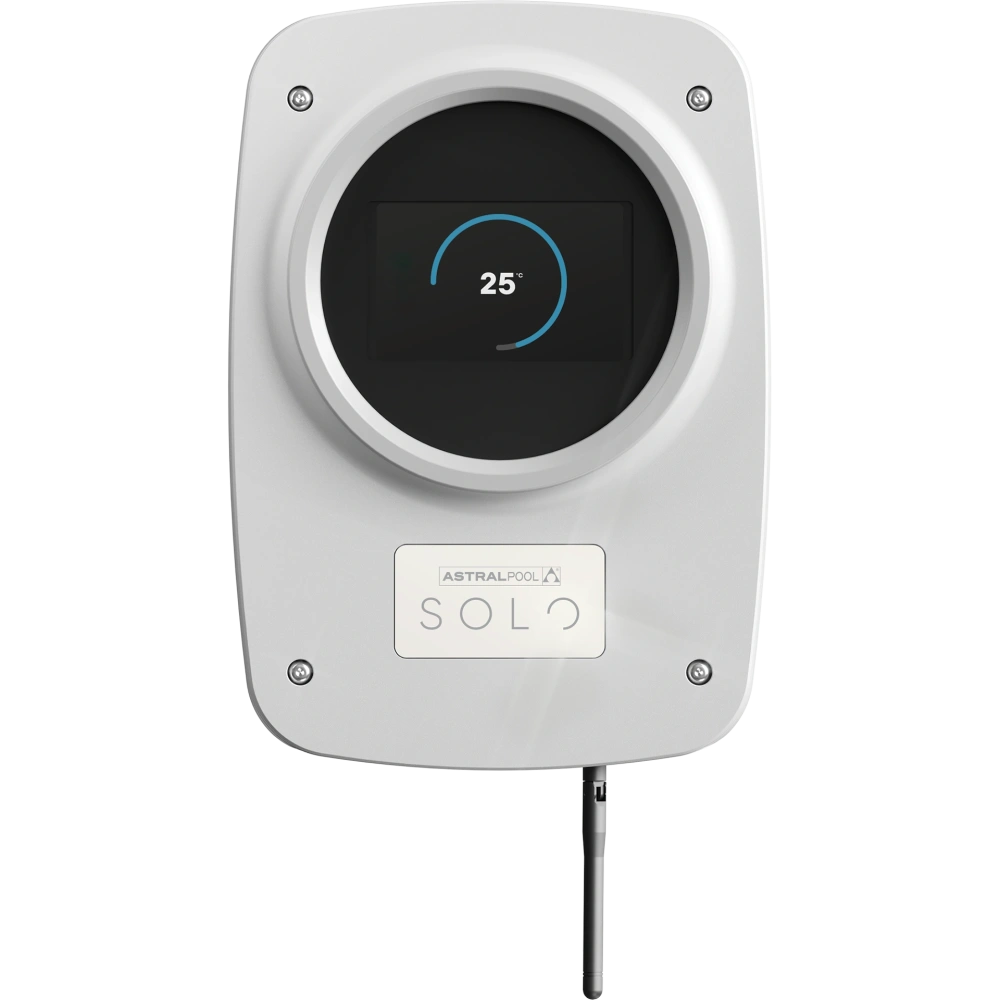

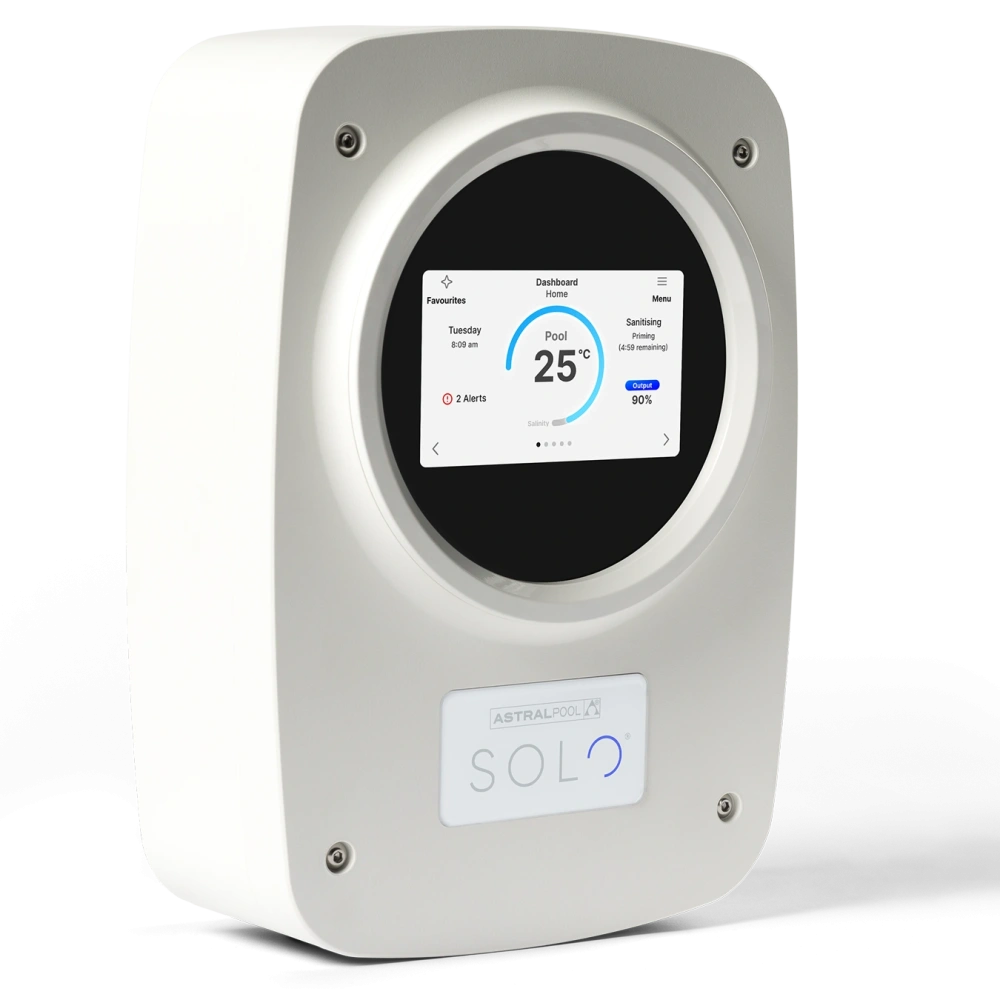

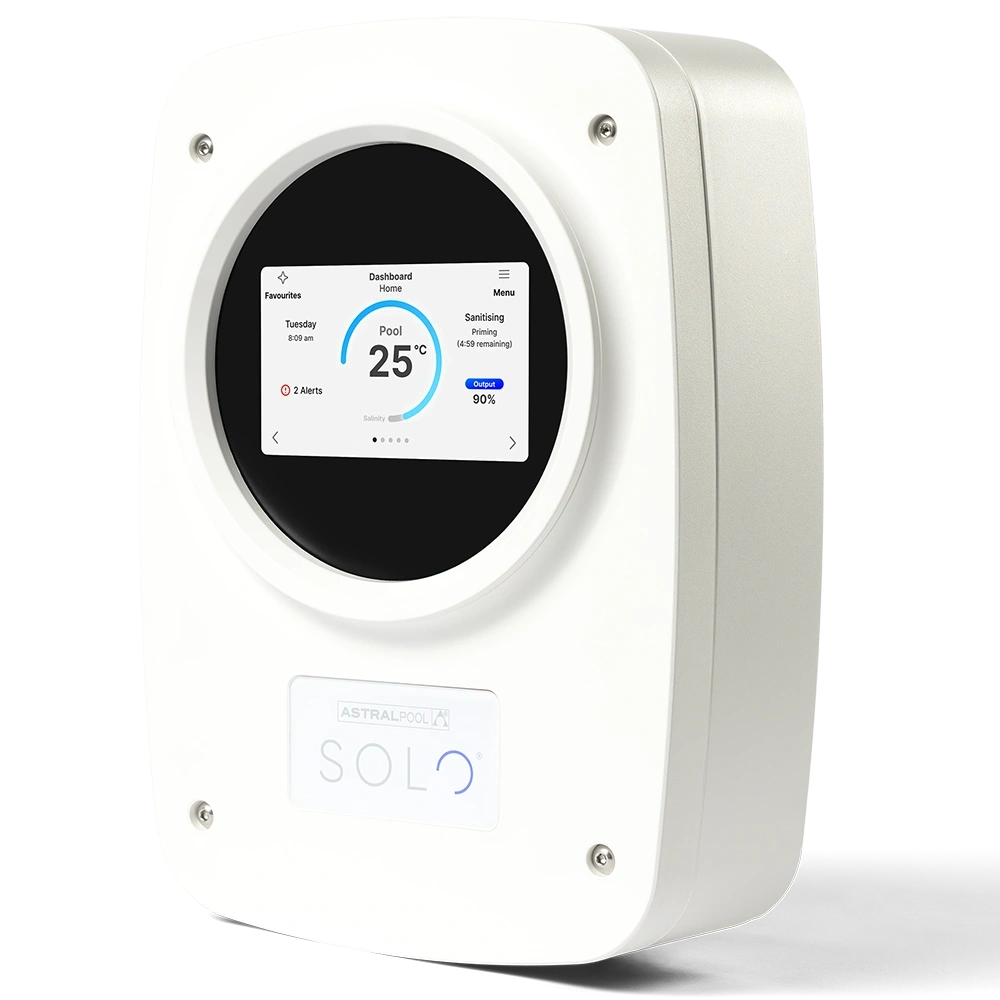

AstralPool Solo 45 Salt Chlorinator

Producing 45 grams of chlorine per hour, the AstralPool Solo 45 is the highest-output model in the Solo range and is intended for larger domestic pools. It is rated for pools up to 105,000 litres in tropical conditions, with greater capacity in temperate climates. The Solo 45 is made in Australia and certified to AS/NZS 3136.

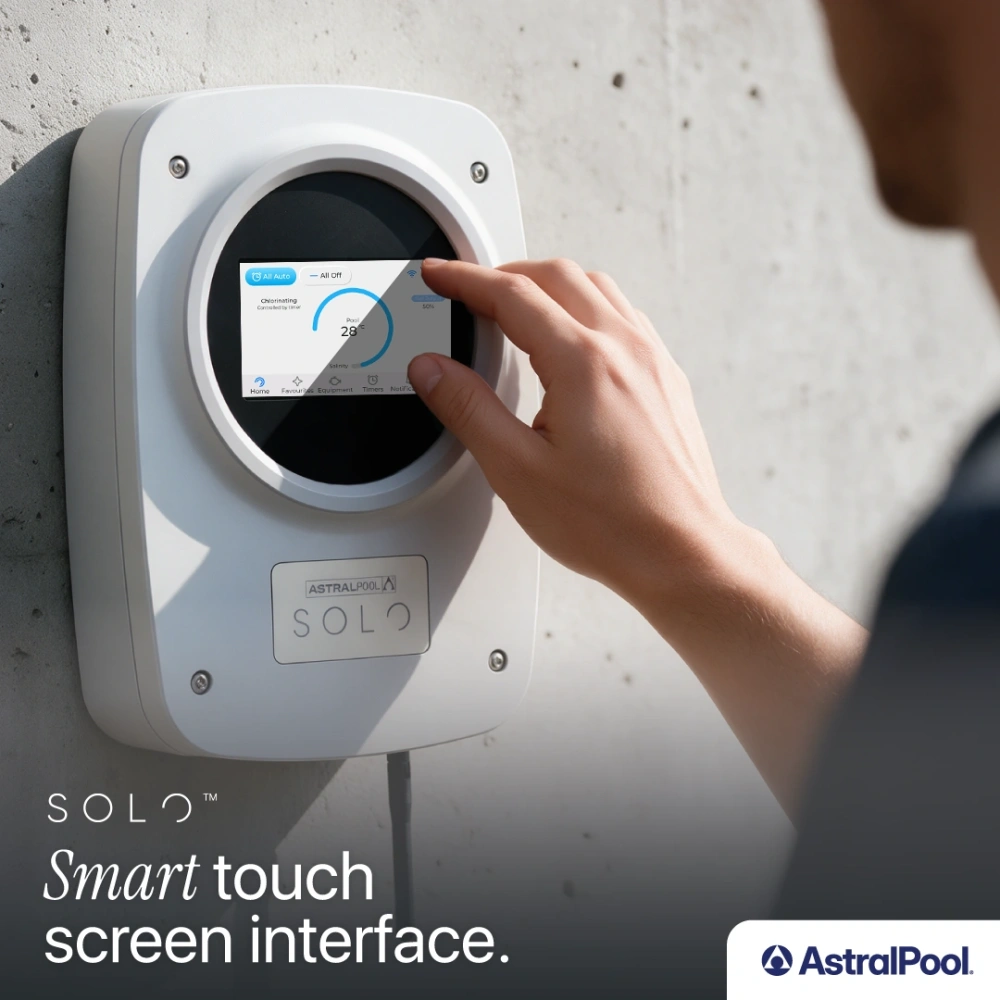

The Solo 45 is a standalone chlorinator designed for chlorine production without probes or connected equipment. Output, timers and operating modes can be set using the unit's touch screen or from a phone via Bluetooth and Wi-Fi. Chlorine output can be adjusted in fine increments, allowing the unit to manage chlorination once the settings are configured.

The cell contains 14 titanium plates with a ruthenium and iridium coating, housed in clear acrylic. Polarity reverses every four hours, or up to six hours if selected, to help clear scale from the plates. All Seasons mode reduces chlorine production during cooler months instead of maintaining summer output throughout the year.

KEY FEATURES

• Highest-output model in the Solo range, producing 45 g/hr of chlorine and rated for pools up to 105,000 litres in tropical conditions.
• Standalone design manages chlorination only, with no probes or connected equipment required.

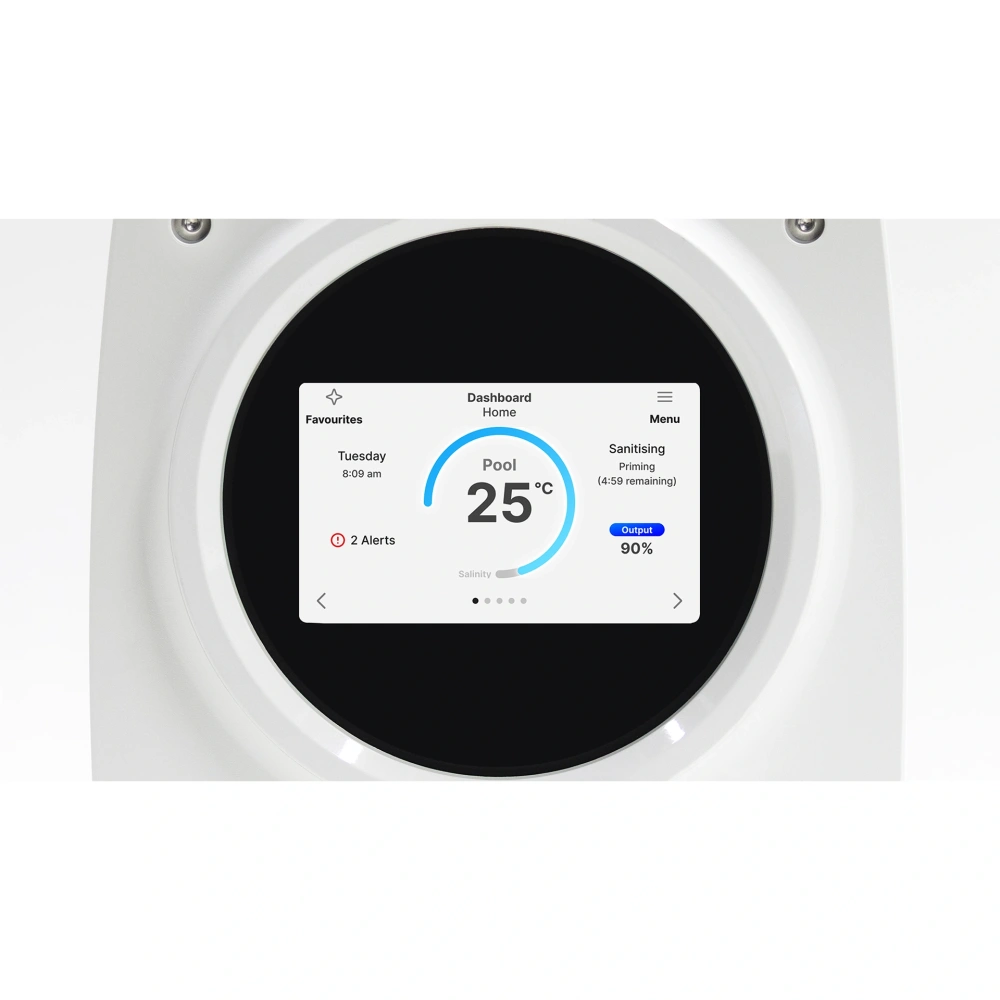

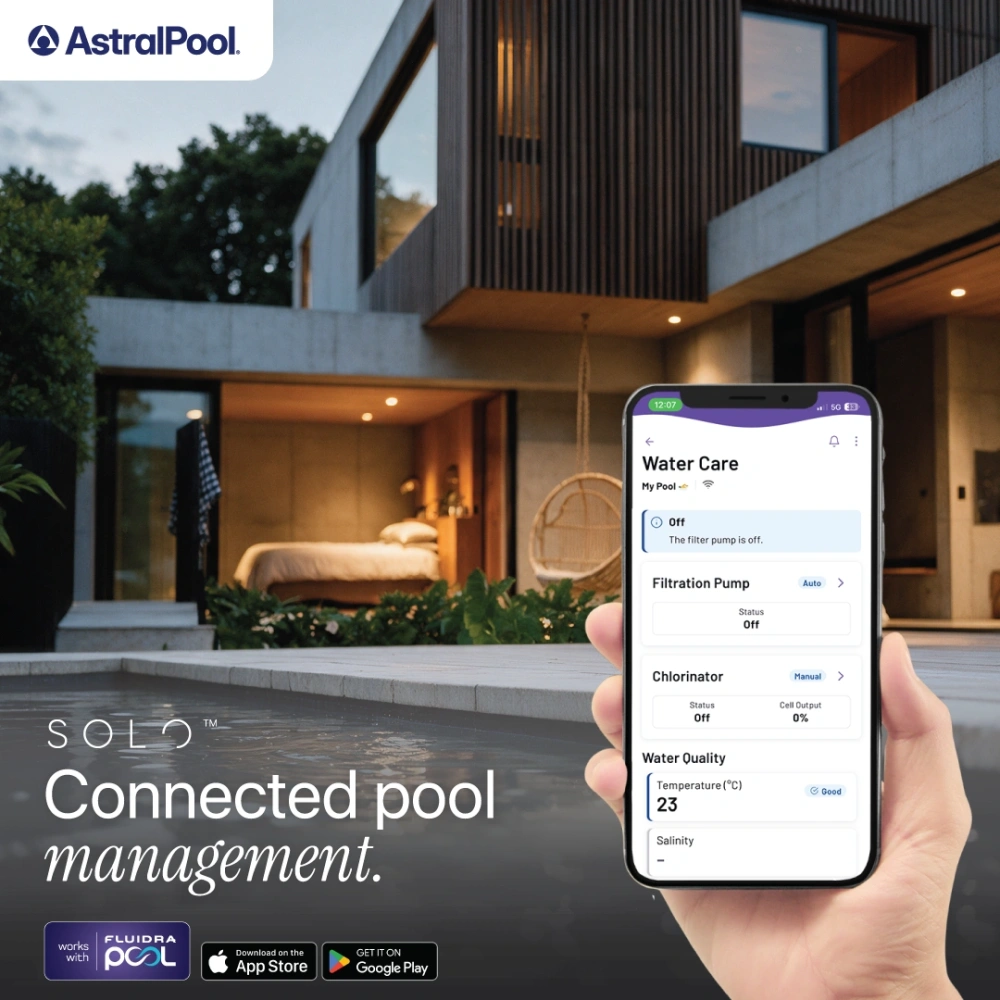

• Touch screen controls and Bluetooth and Wi-Fi connectivity provide convenient access to output settings, timers and operating modes.
• Fine output adjustment and built-in timers let you tailor chlorine production to your pool's requirements.
• 14-plate titanium cell with a ruthenium and iridium coating, housed in clear acrylic.
• Self-cleaning polarity reversal occurs every 4 hours, with the interval selectable up to 6 hours to help clear scale from the cell plates.
• All Seasons mode reduces chlorine production through the cooler months as water temperatures fall.
• Boost mode temporarily increases chlorine output, while Spa mode reduces production for smaller volumes of water.
• No-flow detection stops chlorine production when water is not flowing through the cell.
• A salt level alarm alerts you when salt levels are too high or too low.

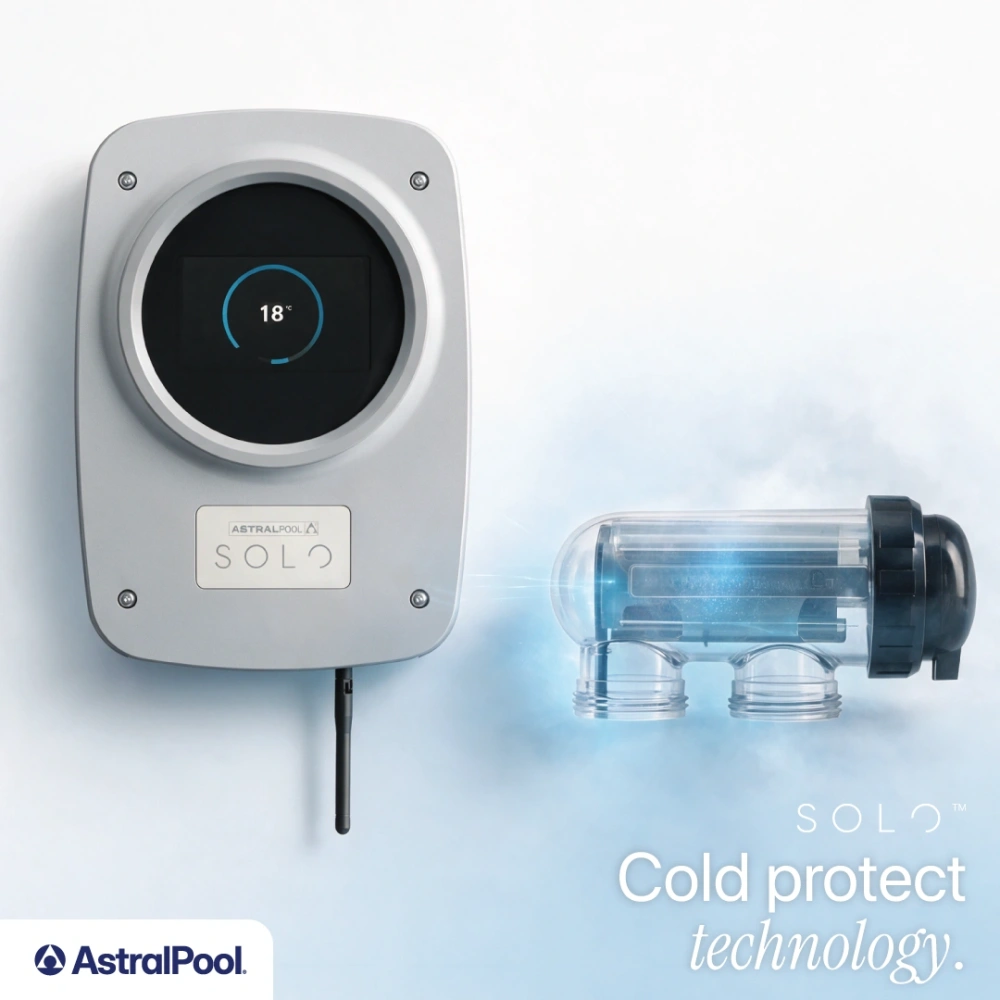

• The low-temperature cell stop can be enabled or disabled to suit operating requirements.
• Overload and short circuit protection, along with high-temperature shutdown for the power supply, help protect the unit.

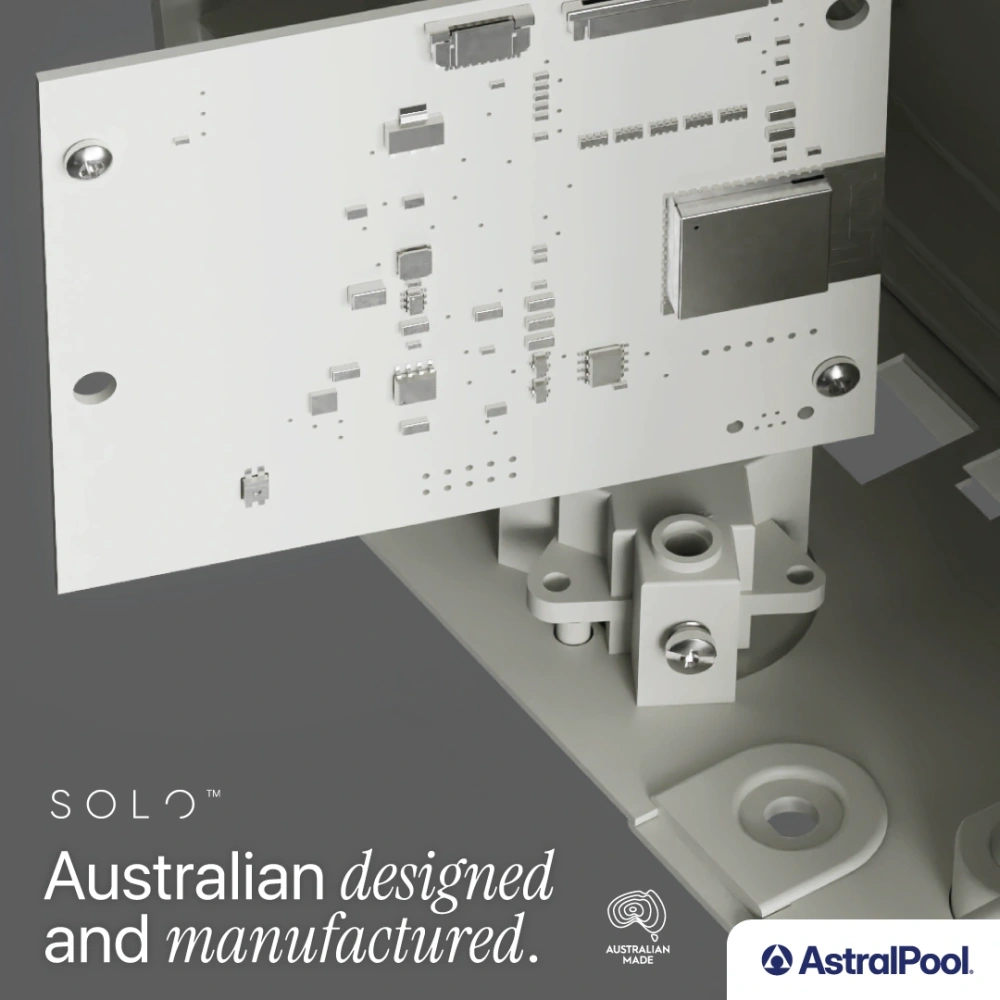

• Made in Australia and certified to AS/NZS 3136.
• Spare parts are available for at least 5 years.

WARRANTY

4 years on the power supply and 3 years on the cell. The cell has a life expectancy of 10,000 hours.

SPECIFICATIONS

• Model: SOLO 45
• Chlorine output: 45 g/hr
• Max pool volume: 105,000 L (tropical)
• Climate / environment: Tropical
• Probe based / multi device: No
• Display type: Touch Screen
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: 0.1
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 14
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
