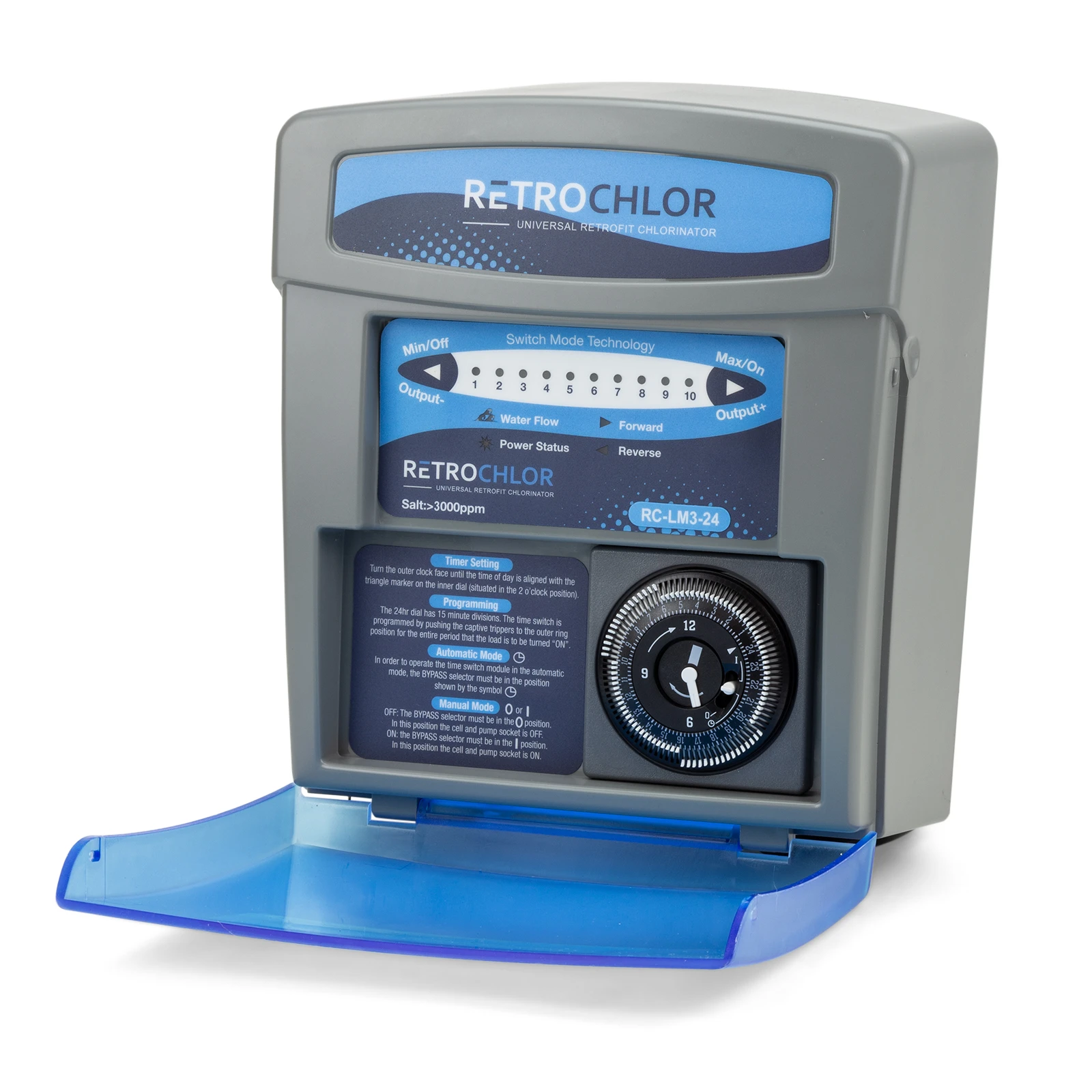

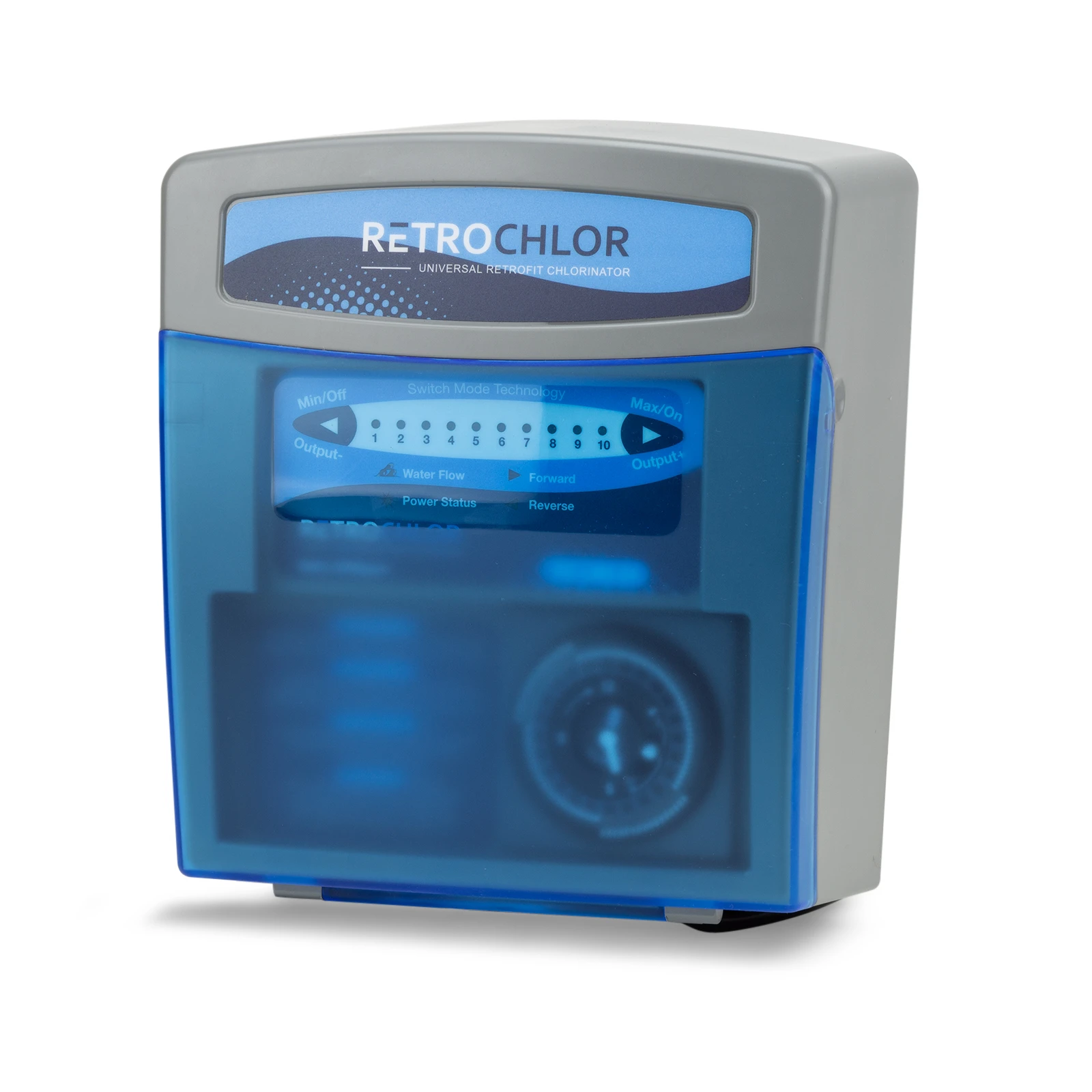

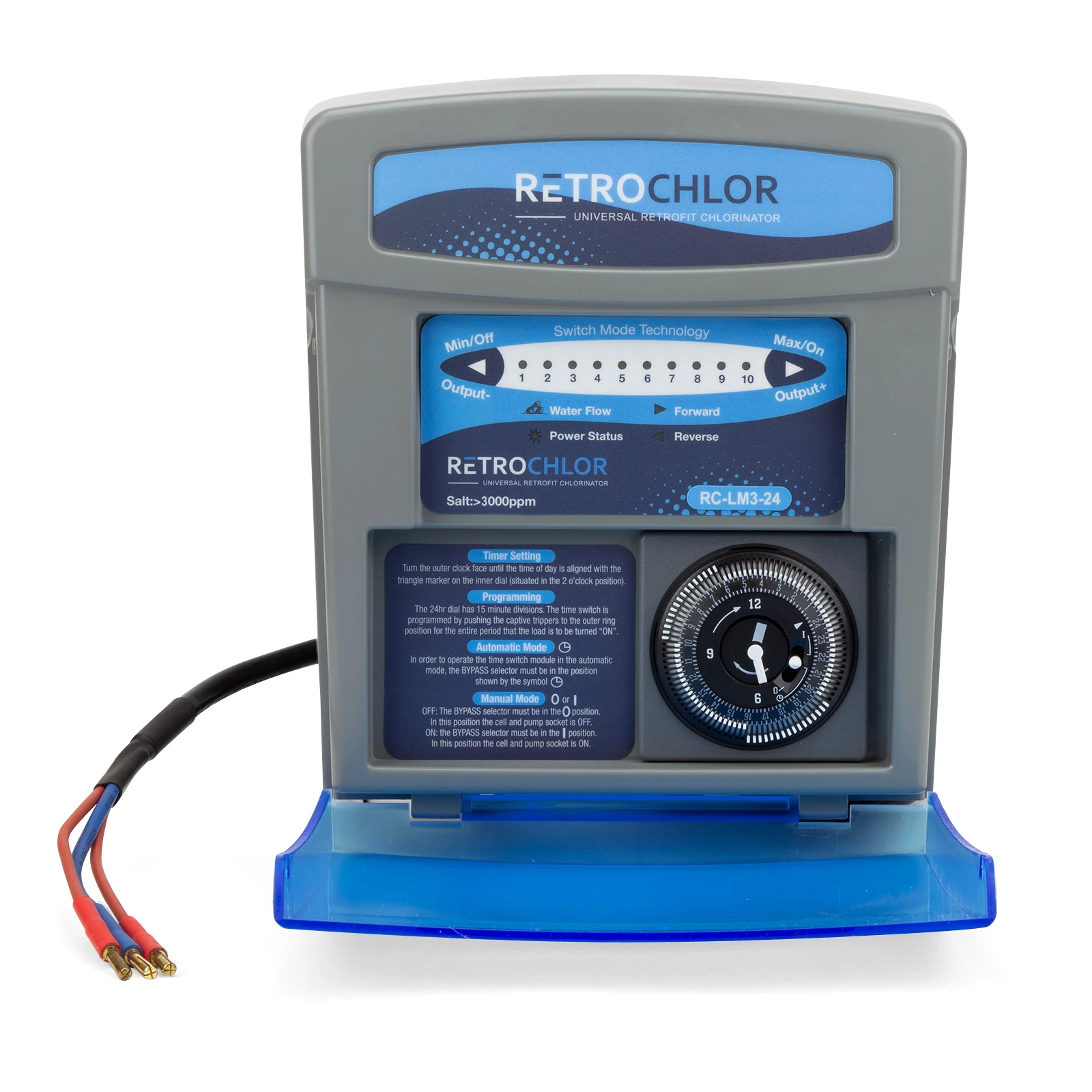

Zodiac LM3-30 / LM3-40 Chlorinator - RetroChlor RC-LM3-40 40 g/h - Generic

RetroChlor RC-LM3-40 - 40 g/h Universal Retrofit Chlorinator

The RetroChlor RC-LM3-40 is a plug and play universal retrofit chlorinator designed as a direct replacement for Zodiac LM3-30 and LM3-40 systems. It allows faulty or outdated saltwater chlorinators to be replaced in as little as 15 minutes, helping avoid expensive installation and service call-out costs.

Australian conditions such as heat, vermin, corrosion and power surges can accelerate damage to pool equipment. RetroChlor kits are designed to slot directly into existing pool setups, renewing this essential pool component without the need to replace plumbing or pipe systems.

FEATURES

Plug and Play Retrofit Solution

Designed to replace existing LM3 series chlorinators using the original cell housing. No replumbing required, making installation fast and straightforward.

Self-Cleaning Cell

Uses reverse polarity technology to automatically dissolve calcium build-up from the cell plates at programmed intervals, maintaining performance and extending cell life.

Energy Efficient Technology

Built with modern switch mode technology that reduces electrical resistance compared to older transformer-based systems. This lowers power consumption and can save up to 50 percent in running costs.

Designed for Harsh Conditions

Constructed with high-grade internal components and acrylic weather shielding. Includes over-current and temperature protection to ensure reliable operation in extreme heat and outdoor environments.

Key Features

• Universal retrofit chlorinator kit
• Chlorine output: 40 g/h
• Designed to retrofit Zodiac LM3-30 and LM3-40 systems
• Self-cleaning reverse polarity cell
• Energy efficient switch mode technology
• Low salt operation: 2500 to 3500 ppm
• Mechanical timer with battery backup
• Premium grade titanium salt cell

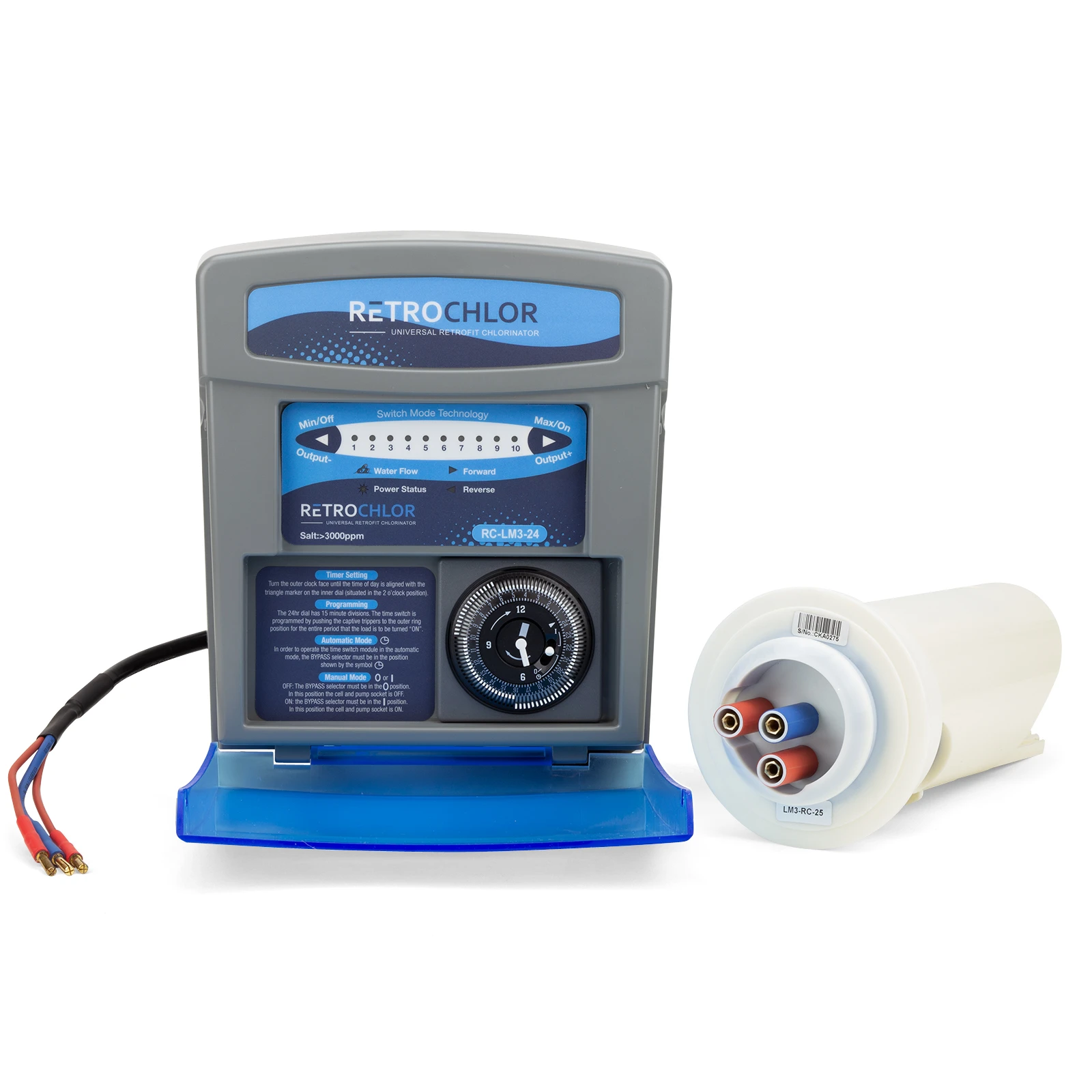

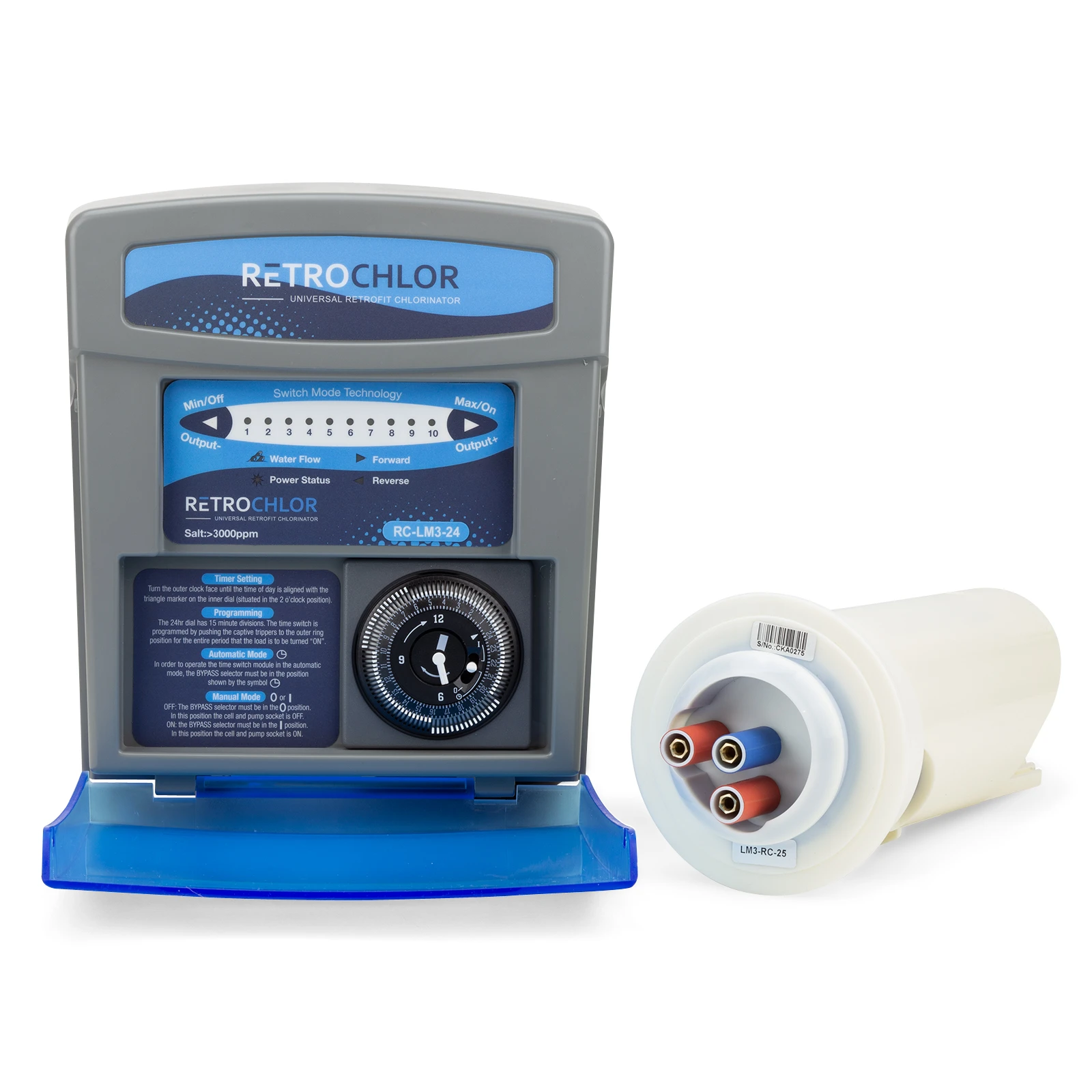

Package Contents

• 1 x Chlorinator control box
• 1 x Electrolytic salt cell
• 1 x Chlorinator output cable

Specifications

• Model: RC-LM3-40
• Chlorine Production: 40 g per hour
• Salt Level Range: 2500 to 3500 ppm (0.3 to 0.35 percent)
• Technology: Switch mode power supply
• Installation Type: Retrofit using existing LM3 series cell housing only

This unit is compatible only with an existing Zodiac LM3 series cell housing. Other RetroChlor kits are available for different brands and configurations.
