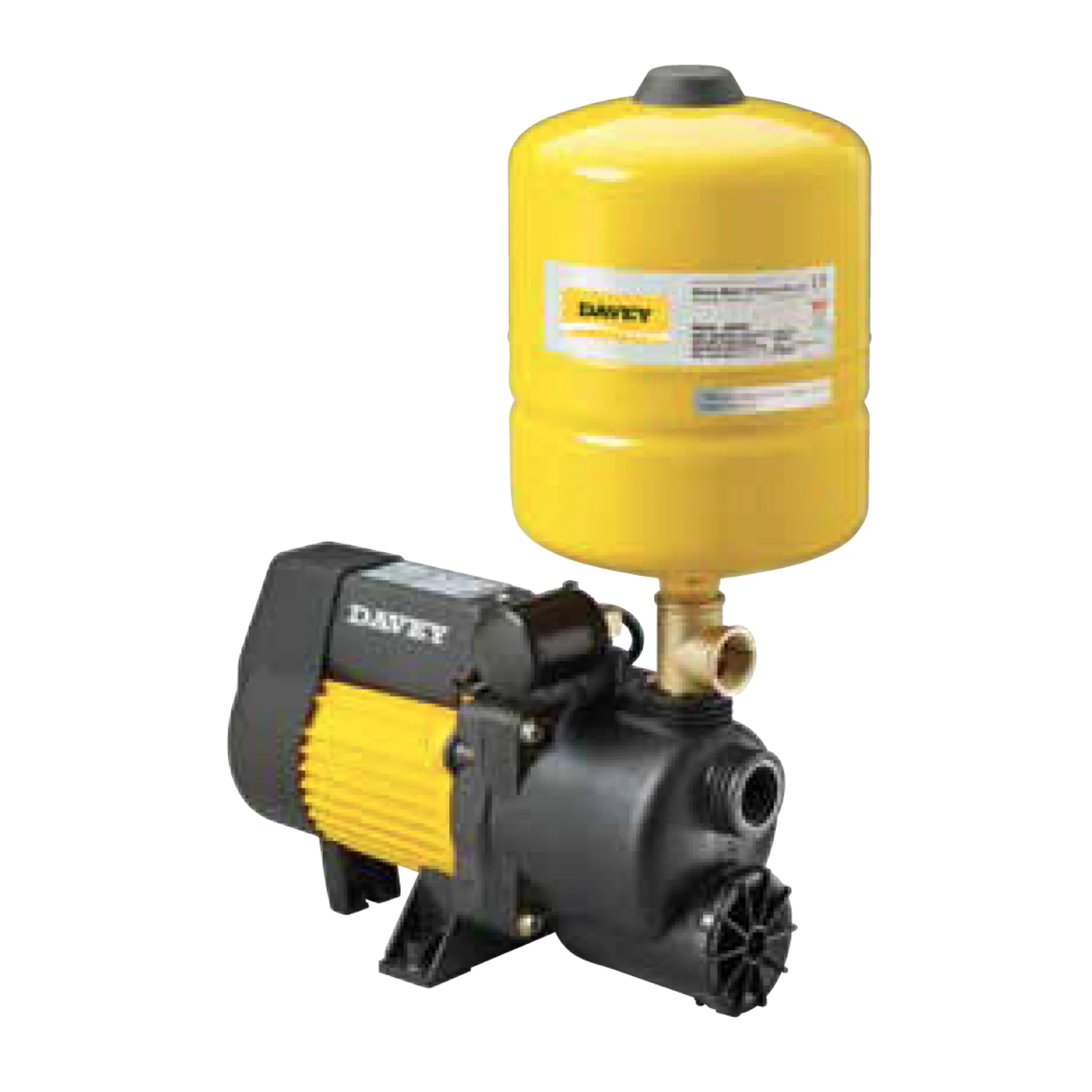

Davey XP45P8 Jet Assisted Centrifugal Pump - The Weekender Series W3 - 8L Pressure Tank

Davey XP45P8 Jet Assisted Centrifugal Pump - The Weekender Series W3

Economical, compact 45lpm domestic pressure system driven by a single stage jet assisted centrifugal pump. The unit features a TEFC motor and includes a Supercell 8P tank which provides 3 litre draw-off.

APPLICATIONS

• Ideal for small/average size homes, cottages, weekenders
• Domestic water supply
• Pressure boosting
• Automatic water transfer


WHY CHOOSE THE DAVEY WEEKENDER SERIES W2?

PUMP

• Single stage, jet assisted
• Closed vane impeller
• 304 stainless steel pump shaft
• Internal check valve
• Mechanical shaft seal
• O-ring casing seal
• Pressure switch control


​MOTOR

• Davey manufactured
• 2 pole, 2850rpm/50Hz or 3420rpm/60Hz
• TEFC with IP55 enclosure
• Class F insulation
• Permanently split capacitor design
• Double contact C3-HTG rated sealed ball bearings
• In-built thermal overload protection
• Plastic feet on motor shell


​PRESSURE TANK

• Captive diaphragm design
• Heavy duty Butyl diaphragm meets health requirements for potable water applications
• Deep drawn steel shell with appliance like 2 part paint finish


​BENEFITS

• Manufactured from quality corrosion resistant materials
• TEFC motor-corrosion resistant and excludes dust and dirt
• Motor and pump designed for frequent starts
• Discharge may be rotated through 180º - makes plumbing easier
• Quick and easy installation
• Low maintenance
• Easy to service if required

Davey XP45P8 Jet Assisted Centrifugal Pump - The Weekender Series W3

Specifications

• Supply Voltage: 220-240V
• Supply frequency: 50Hz
• Nominal speed: 2850rpm
• Input power (P1): 0.6kW
• Output power (P2): 0.45kW
• Full load current: 2.4 amps
• Locked rotor current: 12 amps
• Starting: P.S.C.
• Enclosure class: IP55
• Insulation class: Class F
• Pressure switch cut-in: 140kPa
• Pressure switch cut-out: 280kPa
• Capacities to: 45 lpm @ 140kPa
• Maximum service pressure: 35m
• Cut-in pressure: 140kPa
• Cut-out pressure: 280kPa
• Maximum liquid temperature: 50ºC
• Maximum ambient temperature: 45ºC
• Maximum suction lift: 6m
• Inlet size: 1" F
• Outlet size: 1" F
• Dimensions (LxWxH): 424mm x 200mm x565mm
• Weight: 6.21kg
