RETROFIT QC Series

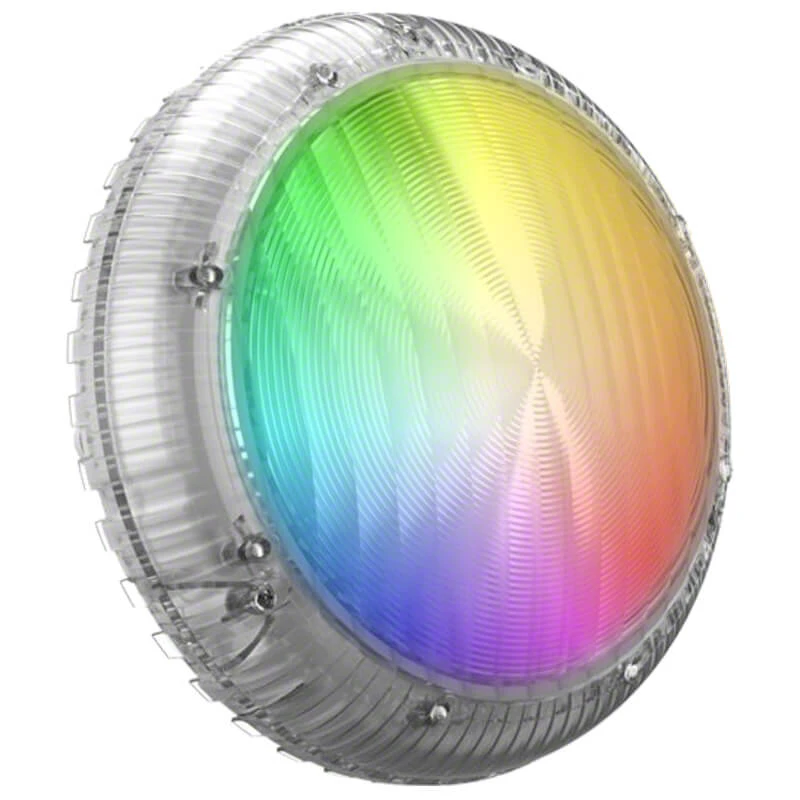

Aquaquip QC Concrete LED Niche Multi Colour Pool Light + Mounting Kit & 20m Cable

General
Documentation

Aquaquip QC Concrete LED Niche Multi Colour Pool Light + Mounting Kit & 20m Cable

Upgrade Your existing pool lights to Aqua-Quip without lowering the pool water level or changing the transformer.

Fixed Colour LEDs: The advantage Spectrum IX technology allows the user to program their favourite mode. Choose from a variety of scroll and flash modes or program your own favourite default colour by selecting from the innovative Colour Palette Selection Mode.

Variable Voltage Technology: Allows LED Retro-Fit lights to be operated from voltages between 12v AC to 32V AC.

Aqua-Quip Surface Mounted Retro-Fit Lights are able to convert the following brands in concrete pools:

Stroud Compact 150
Stroud SM400gm
Swimworld
Waterco
Filtrite
Spa Electrics
Poolrite
Autumn Solar, Questa, Chameleon

Package Contents - Aquaquip QC Concrete LED Niche Multi Colour Pool Light + Mounting Kit & 20m Cable

Features:

Amazing LED Colours
Energy efficient and super bright
Variable voltage technology
Quick connect feature
Universal mounting bracket
Australian made
Stylish Design Ring

Specification:

Power Requirement for Fixed Colour and Multi-Colour LEDs: 12V ~ 32V AC 50/60Hz
Pool Light Protection Rating: IPX8 to 2.0m depth
Temperature Range: 0°C ~ +40°C pool water temperature
Installation Location: 200mm ~ 400mm below water level
Power Consumption – Fixed Colour LEDs: : Maximum 16VA at all Voltages 12V ~ 32V
Power Consumption – (Multi Colour LEDs): : Maximum 22VA at all Voltages 12V ~ 32V
Voltage Tolerance (Fixed Colour and Multi-Colour LEDs): 10.5V AC ~ 35V AC
Light Colour: White >5,000K, Blue 475nm, Green 525nm
Light Output (Typical): White = 1050 Lumens, Blue = 300 Lumens, Green = 650 Lumens
Fault Protection: Power Cycle “Run Dry” thermal cut-out. Voltage transient clamping

Warranty - 12 Months

Aquaquip QC Brochure

View

Aquaquip QC Installation Guide

View

$505.00 Free Shipping
