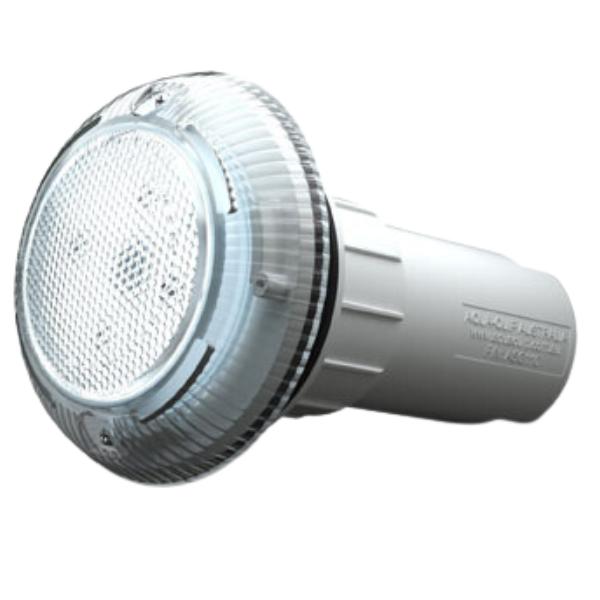

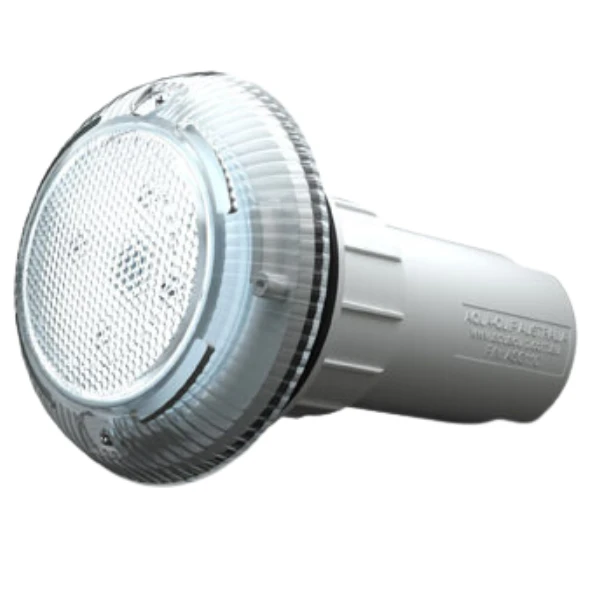

Aquaquip EVO CR Concrete LED Niche Multi Colour Pool Light w. 60mm Niche + 20m Cable
Available Online
-
General
Aquaquip EVO CR Concrete LED Niche Multi Colour Pool Light w. 60mm Niche + 20m Cable
The EvoCR Series LED Light has been developed for renovators of concrete pools.
The Housing is supplied with a 20mm socket for connection to 20mm rigid PVC conduit. The housing has a narrow diameter of just 60mm and is inserted and sealed into a hole that is core-drilled through the pool wall.
Pool light mounts into the existing Aqua-Star housing. The EvoCR LED Retro Fit Light is supplied with a factory-sealed light and a Quick Connect Plug Kit.
The plug kit connects to the existing cable and is then connected to the rear of the light by tightening the supplied lock nut.
Features:
- Operated by extremely safe extra low voltage supply (12V AC)
- Low power consumption, long life-span
- Easy installation and operation.
Specification:
Operated by extremely safe extra low voltage supply (12V AC), low power consumption, long life-span, easy installation and operation.- Nominal Supply Voltage: 12V AC 50/60 Hz
- Voltage Tolerance: +20%, -20%
- Protection Rating: IPX8 (to 2.0m depth)
- Temperature Range: 0°C ~ +40°C water temperature
- Power Consumption: White, blue and green = 8 VA
- Power Consumption: Spectrum III Multi Colour = 16 VA maximum
- Light Output (typical): White-550 lumens, blue-180 lumens, green-500 Lumens
- Fault Protection: Power-cycle “run dry” thermal cut-out. Voltage transient clamping
Warranty - 12 Months
-
Documentation
Aquaquip EVO CR Brochure
