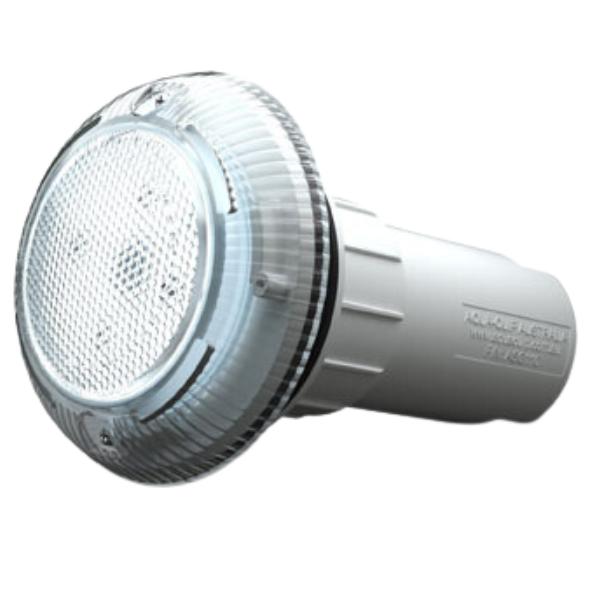

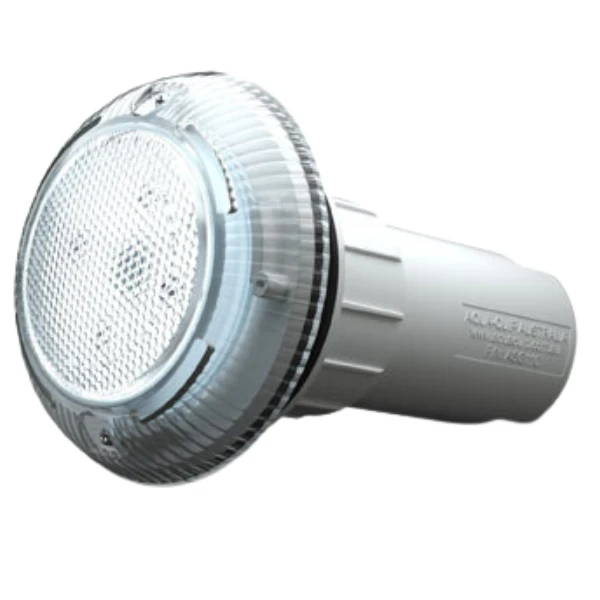

Aquaquip EVO CR Concrete LED Niche Blue Pool Light w. 95mm Niche + 30m Cable

The EvoCR Series LED Light has been developed for renovators of concrete pools.

The Housing is supplied with a 20mm socket for connection to 20mm rigid PVC conduit. The housing has a narrow diameter of just 60mm and is inserted and sealed into a hole that is core-drilled through the pool wall.

Pool light mounts into the existing Aqua-Star housing. The EvoCR LED Retro Fit Light is supplied with a factory-sealed light and a Quick Connect Plug Kit.

The plug kit connects to the existing cable and is then connected to the rear of the light by tightening the supplied lock nut.

Features:

Operated by extremely safe extra low voltage supply (12V AC)
Low power consumption, long life-span
Easy installation and operation.

Specification:
Operated by extremely safe extra low voltage supply (12V AC), low power consumption, long life-span, easy installation and operation.

Nominal Supply Voltage: 12V AC 50/60 Hz
Voltage Tolerance: +20%, -20%
Protection Rating: IPX8 (to 2.0m depth)
Temperature Range: 0°C ~ +40°C water temperature
Power Consumption: White, blue and green = 8 VA
Power Consumption: Spectrum III Multi Colour = 16 VA maximum
Light Output (typical): White-550 lumens, blue-180 lumens, green-500 Lumens
Fault Protection: Power-cycle “run dry” thermal cut-out. Voltage transient clamping

Warranty - 12 Months

Aquaquip EVO CR Brochure
