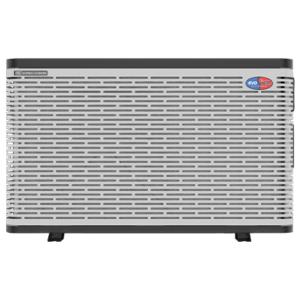

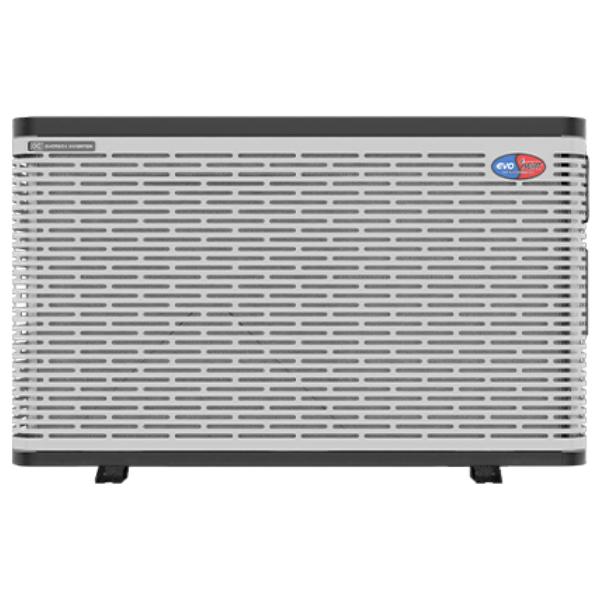

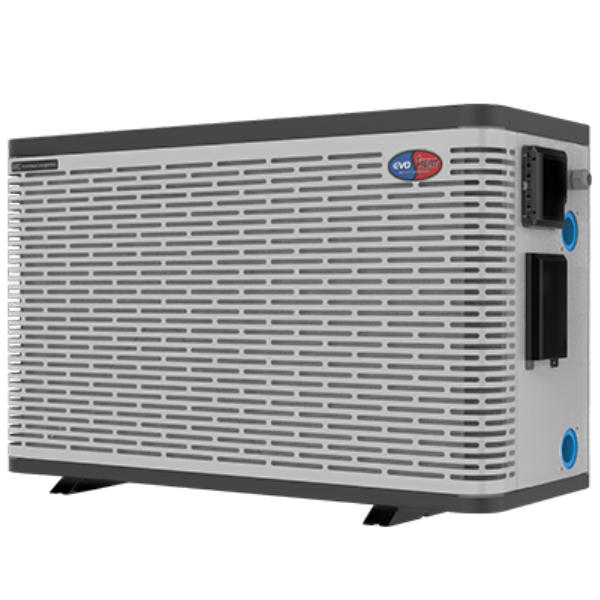

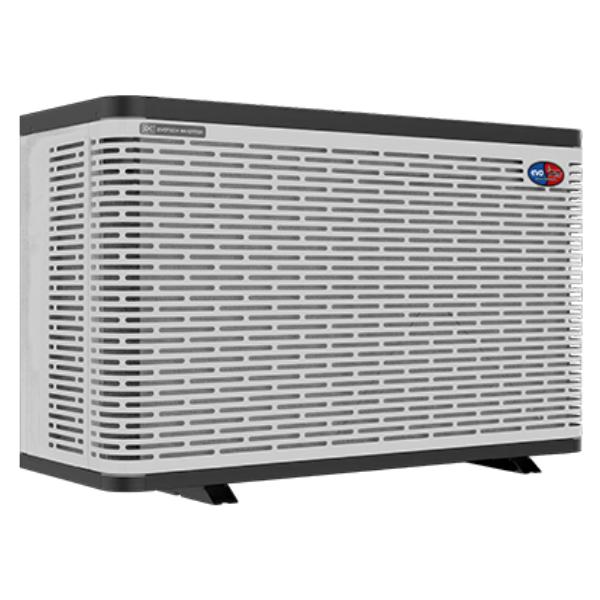

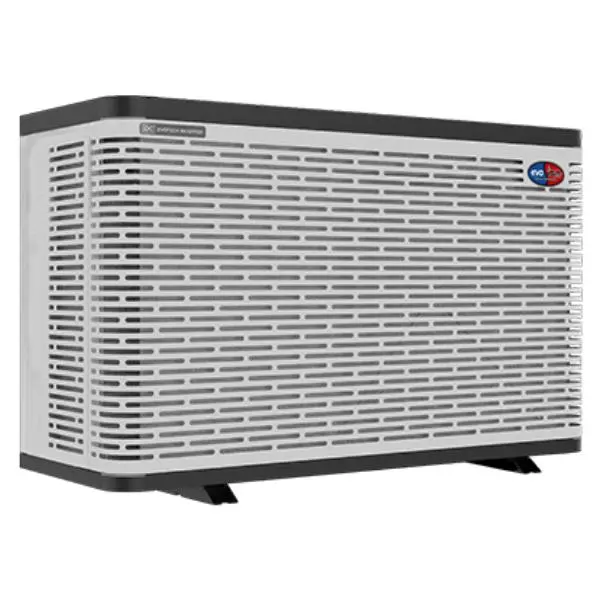

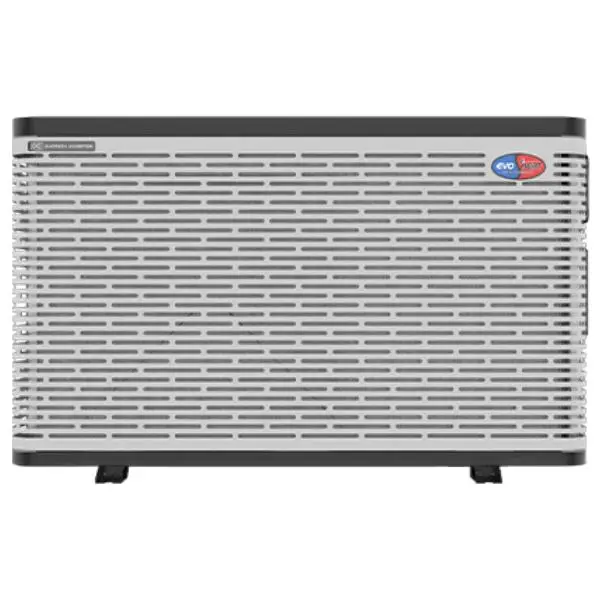

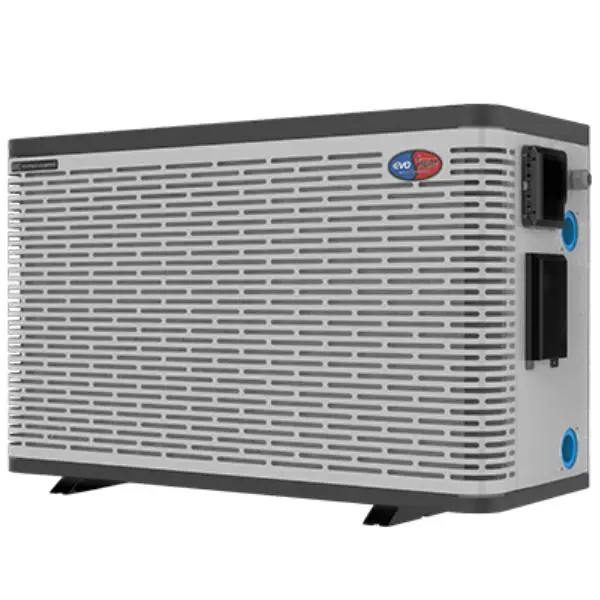

EvoHeat Edge i20 - 20kW Pool & Spa Heat Pump
Introducing the cutting-edge Evo Edge-i inverter heat pump, a true game-changer in domestic pool and spa heating! Say goodbye to installation limitations and hello to convenience! With its innovative side air discharge and rear air intake, the Evo Edge-i heat pump can be conveniently installed almost anywhere. Ideal for wall mounting and tight installations, the Evo Edge-i boasts a cutting-edge space saving design.
Equipped with the latest stepless full DC inverter compressors, fans, and control systems, the Evo Edge-i heat pump delivers optimal year-round heating and cooling at the lowest possible operating costs. Upgrade your pool today and embrace the comfort, maximise your savings and start swimming more with the Evo Edge-i.
Features:
Warranty: 25 years on the titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.
MODEL | EDGE-I 7 | EDGE-I 9 | EDGE-I 13 | EDGE-I 17 | EDGE-I 20 | |
---|---|---|---|---|---|---|
Heating Output (27°C air/26°C water) | kW | 7.45 | 9.17 | 11.47 | 16.02 | 18.10 |
Heating Output (15°C air/26°C water) | kW | 5.34 | 6.62 | 8.55 | 11.38 | 13.20 |
Heating Output (10°C air/26°C water) | kW | 3.63 | 3.63 | 3.91 | 6.04 | 7.78 |
C.O.P at 27°C Air | 11.24~6.07 | 11.24-5.73 | 12.19-5.69 | 12-5.43 | 11.53-6.11 | |
Consumed Power at 27°C Air | kW | 0.29-1.227 | 0.29-1.6 | 0.295-2.016 | 0.55-2.95 | 0.57-2.96 |
Power Supply | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
Max Running Current | A | 7 | 9.5 | 10.3 | 14 | 14 |
Connection Type | 10amp | 10amp | 15amp | Hardwired | Hardwired | |
Fan Quantity | 1 | 1 | 1 | 1 | 1 | |
Fan Speed | RPM | 600-800 | 600-800 | 500-900 | 500-800 | 500-850 |
Noise at 1m | dB(A) | 40-46.5 | 40-46.5 | 43-50 | 43-53 | 39.5-52.5 |
Noise at 1m (Silent Mode) | dB(A) | 40 | 40 | 43 | 43 | 39.5 |
Refrigerant | R32 | R32 | R32 | R32 | R32 | |
PVC Water Connection | mm | 40 | 40 | 40 | 40 | 40 |
Water Flow Volume | L/min | 66.67 | 66.67 | 76.67 | 115 | 128.33 |
Water Pressure Drop (Max) | kPa | 3.2 | 3.2 | 4 | 7.5 | 8.8 |
Net Dimensions (LxWxH) | mm | 1034/450/626 | 1034/450/626 | 1034/450/626 | 1040/490/768 | 1171/510/858 |
Net Weight | kg | 67 | 67 | 67 | 87 | 98 |
EvoHeat Edge i20 - 20kW Pool & Spa Heat Pump
Introducing the cutting-edge Evo Edge-i inverter heat pump, a true game-changer in domestic pool and spa heating! Say goodbye to installation limitations and hello to convenience! With its innovative side air discharge and rear air intake, the Evo Edge-i heat pump can be conveniently installed almost anywhere. Ideal for wall mounting and tight installations, the Evo Edge-i boasts a cutting-edge space saving design.
Equipped with the latest stepless full DC inverter compressors, fans, and control systems, the Evo Edge-i heat pump delivers optimal year-round heating and cooling at the lowest possible operating costs. Upgrade your pool today and embrace the comfort, maximise your savings and start swimming more with the Evo Edge-i.
Features:
Warranty: 25 years on the titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.
MODEL | EDGE-I 7 | EDGE-I 9 | EDGE-I 13 | EDGE-I 17 | EDGE-I 20 | |
---|---|---|---|---|---|---|
Heating Output (27°C air/26°C water) | kW | 7.45 | 9.17 | 11.47 | 16.02 | 18.10 |
Heating Output (15°C air/26°C water) | kW | 5.34 | 6.62 | 8.55 | 11.38 | 13.20 |
Heating Output (10°C air/26°C water) | kW | 3.63 | 3.63 | 3.91 | 6.04 | 7.78 |
C.O.P at 27°C Air | 11.24~6.07 | 11.24-5.73 | 12.19-5.69 | 12-5.43 | 11.53-6.11 | |
Consumed Power at 27°C Air | kW | 0.29-1.227 | 0.29-1.6 | 0.295-2.016 | 0.55-2.95 | 0.57-2.96 |
Power Supply | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | |
Max Running Current | A | 7 | 9.5 | 10.3 | 14 | 14 |
Connection Type | 10amp | 10amp | 15amp | Hardwired | Hardwired | |
Fan Quantity | 1 | 1 | 1 | 1 | 1 | |
Fan Speed | RPM | 600-800 | 600-800 | 500-900 | 500-800 | 500-850 |
Noise at 1m | dB(A) | 40-46.5 | 40-46.5 | 43-50 | 43-53 | 39.5-52.5 |
Noise at 1m (Silent Mode) | dB(A) | 40 | 40 | 43 | 43 | 39.5 |
Refrigerant | R32 | R32 | R32 | R32 | R32 | |
PVC Water Connection | mm | 40 | 40 | 40 | 40 | 40 |
Water Flow Volume | L/min | 66.67 | 66.67 | 76.67 | 115 | 128.33 |
Water Pressure Drop (Max) | kPa | 3.2 | 3.2 | 4 | 7.5 | 8.8 |
Net Dimensions (LxWxH) | mm | 1034/450/626 | 1034/450/626 | 1034/450/626 | 1040/490/768 | 1171/510/858 |
Net Weight | kg | 67 | 67 | 67 | 87 | 98 |
