Balboa GS501Z 3.0KW Controller - Titanium

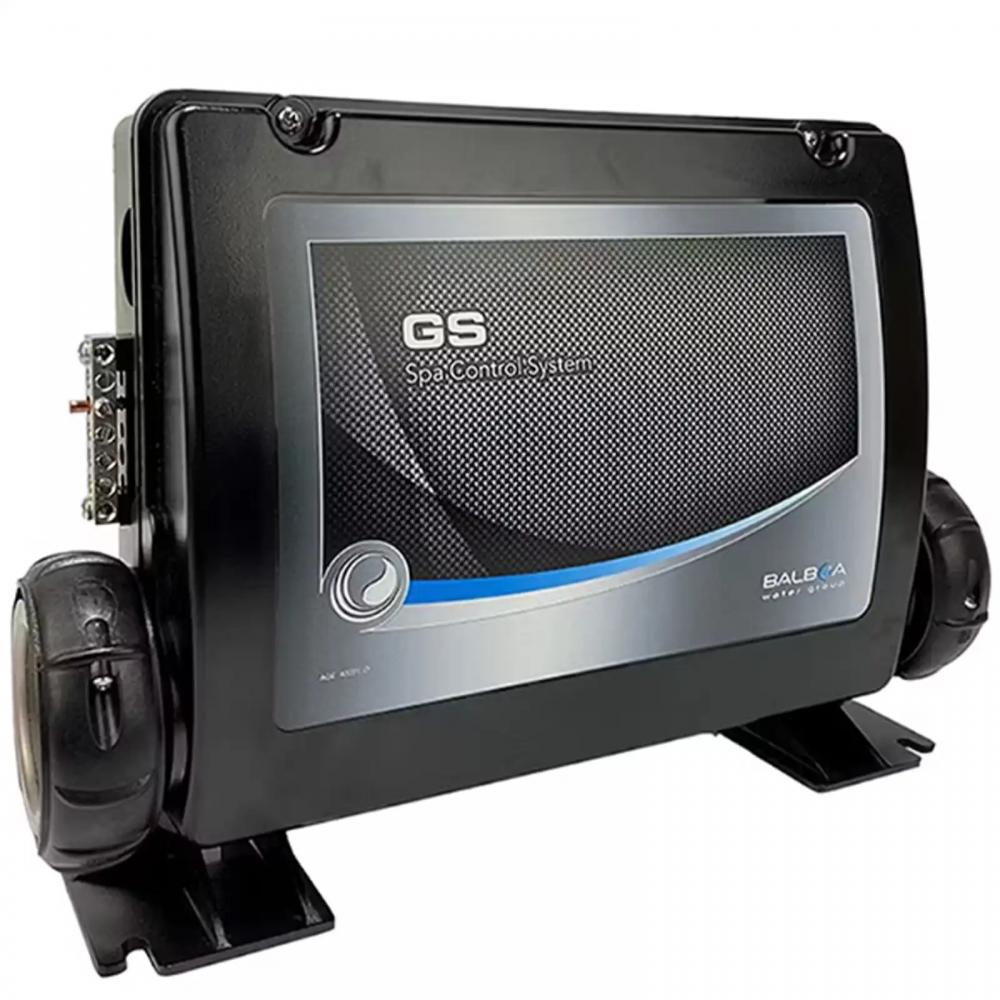

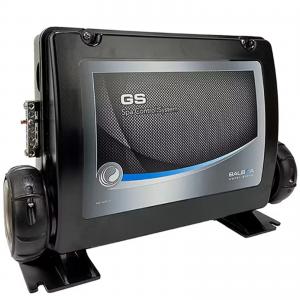

Balboa GS501Z 3.0KW (Titanium) Controller

The Balboa GS501Z 3.0KW (Titanium) Controller is a high-performance spa control system engineered for precision and durability. Designed to support various pump and accessory configurations, this unit provides efficient spa operation with advanced functionality. Featuring built-in temperature sensors, programmable settings, and robust construction, it ensures reliable control and energy efficiency for your spa system.

Touchpad sold separately - Model B-54094.

FEATURES

Versatile Output Configuration

The GS501Z controller includes multiple 240V output sockets to accommodate different spa setups. It supports circulation pumps, single or two-speed pumps, blowers, and ozone systems for flexible operation and integration.

Smart Control and Safety

Equipped with in-heater temperature sensors for accurate monitoring and protection. Features adjustable filtration cycles, Sleep and Economy Modes, and programmable load shedding to optimize energy use and maintain system safety.

Convenient Connectivity

Includes dual touchpad outlets and a dedicated low-voltage light outlet for enhanced control and illumination. Integrated IR receiver enables remote functionality for added convenience.

240V Output Sockets

• CPUMP: Circulation pump (must be used if Pump 1 is a single-speed pump)
• PUMP 1: Either a single-speed pump (with circulation pump) or a two-speed pump
• BLOWER: Blower connection
• 240V: Constant 240V outlet (not switchable)
• O3/UV: Dedicated outlet for ozone system only

Low Voltage Outlets

• 2 × Touchpad outlets
• 1 × Light outlet

Key Features

• In-heater temperature sensors
• Maximum temperature setting: 40°C
• Adjustable filtration cycles
• Sleep and Economy Modes
• Programmable load shedding
• Infrared receiver included
• Touchpad sold separately - B-54094

Specifications

• Heater Wattage: 3000W (Titanium)
• Maximum Current: 32A
• Power Lead: Hard wired
• Power Lead Length: N/A
• Heater Unions: 50mm

Controller Dimensions

• Length: 382mm
• Height: 275mm
• Width: 110mm
• Weight: 3.8kg

Warranty

• 1 Year Warranty (Return to base)
• Refer to manufacturer’s terms and conditions for details
