AstralPool Echo 25g - Salt Chlorinator

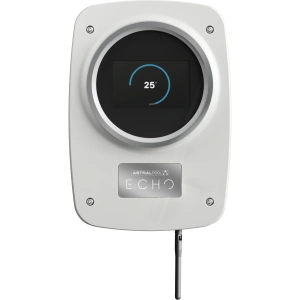

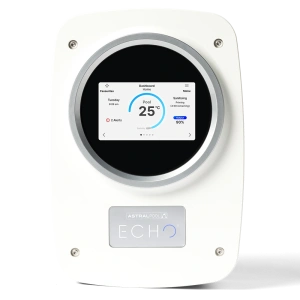

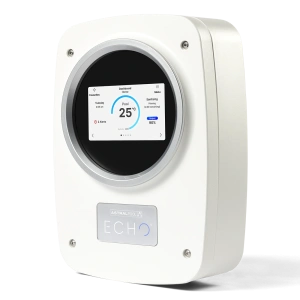

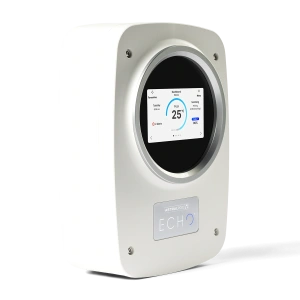

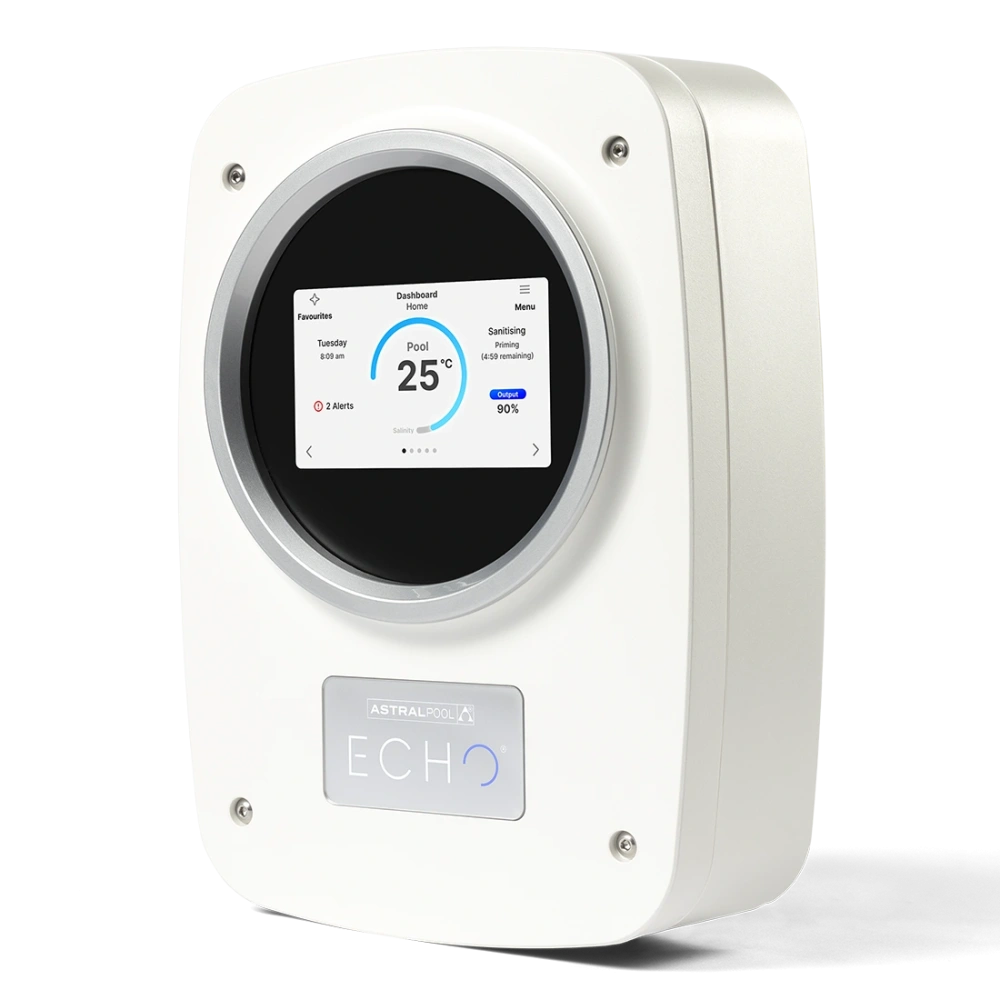

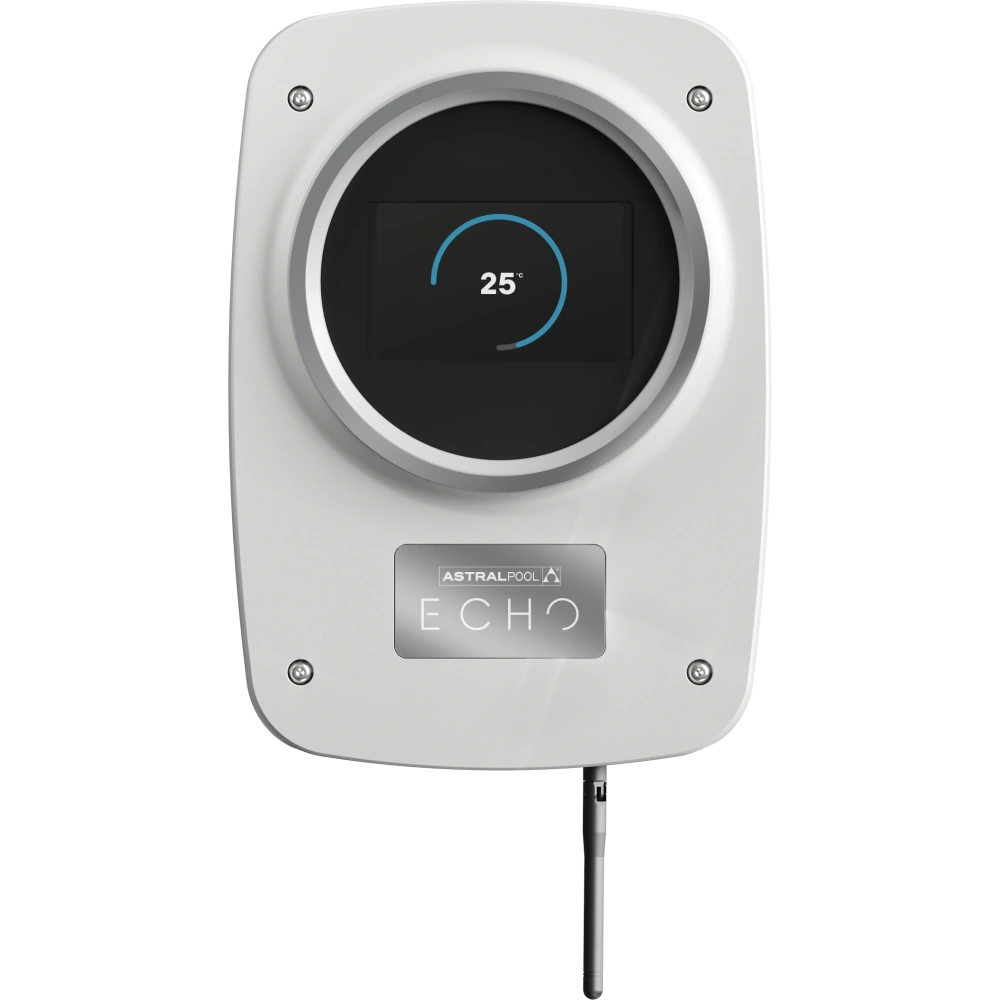

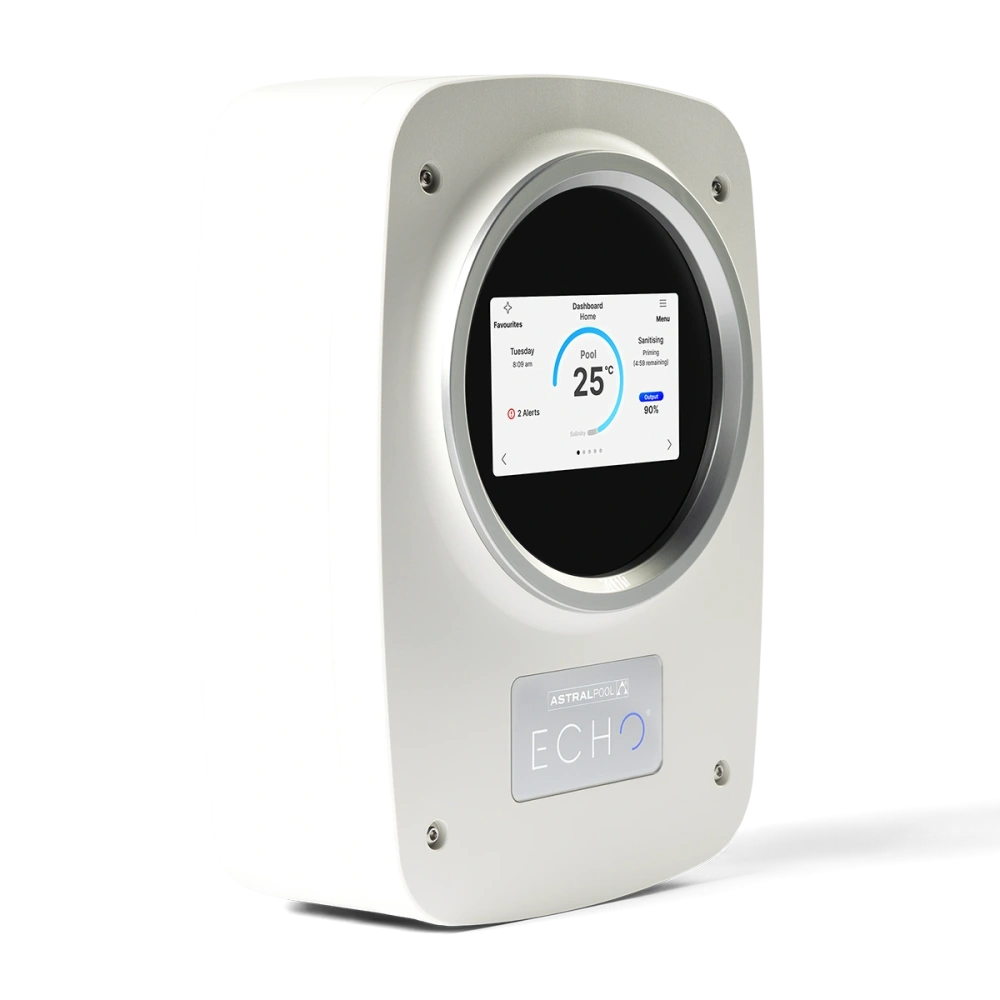

AstralPool Echo 25 Salt Chlorinator

The AstralPool Echo 25 produces 25 grams of chlorine per hour and is intended for standard domestic pools up to 60,000 litres in tropical conditions. Its sensorless acid feed feature allows acid to be dosed for pH control without a probe in the water, so there is no sensor to calibrate, clean or replace. A separate doser kit is required. Made in Australia and certified to AS/NZS 3136, the Echo 25 combines convenient controls with adjustable chlorine production and built-in operating modes.

KEY FEATURES

• Sensorless acid feed manages pH without a probe in the water, removing the need to calibrate, clean or replace a sensor. A separate doser kit is required.

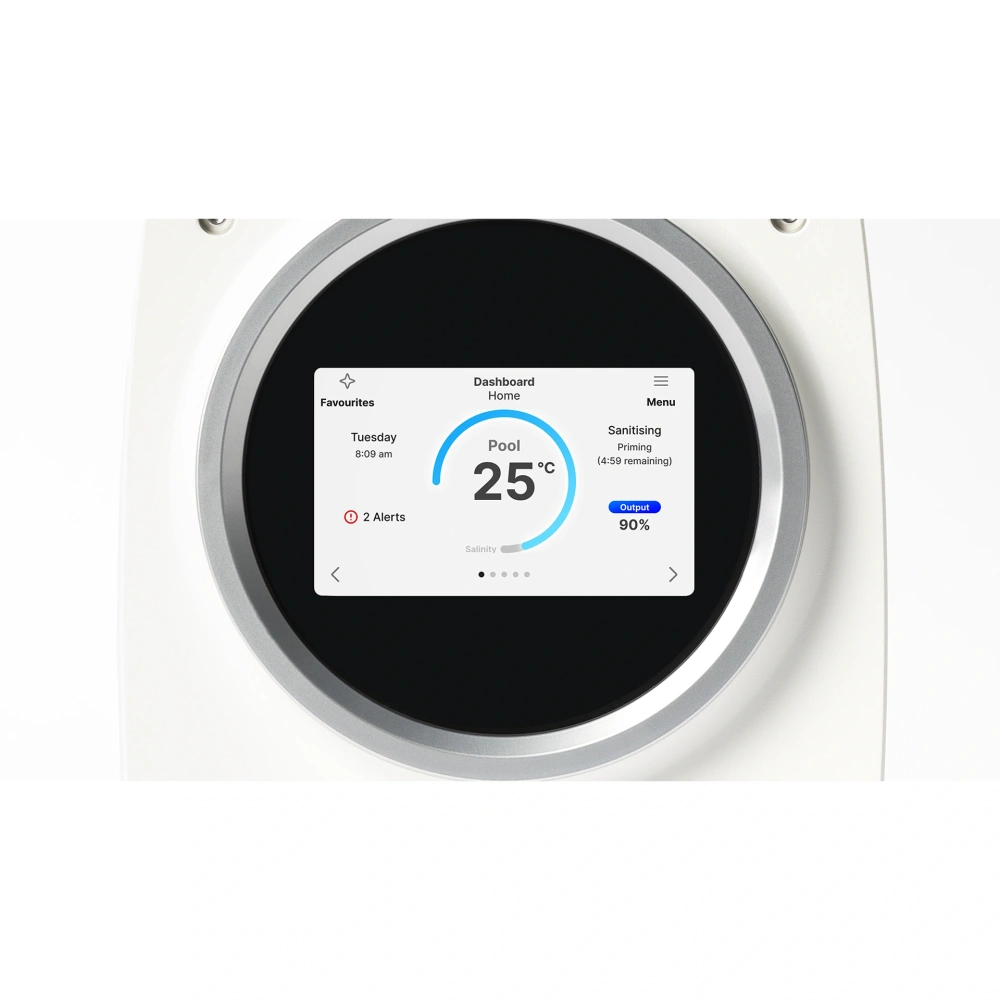

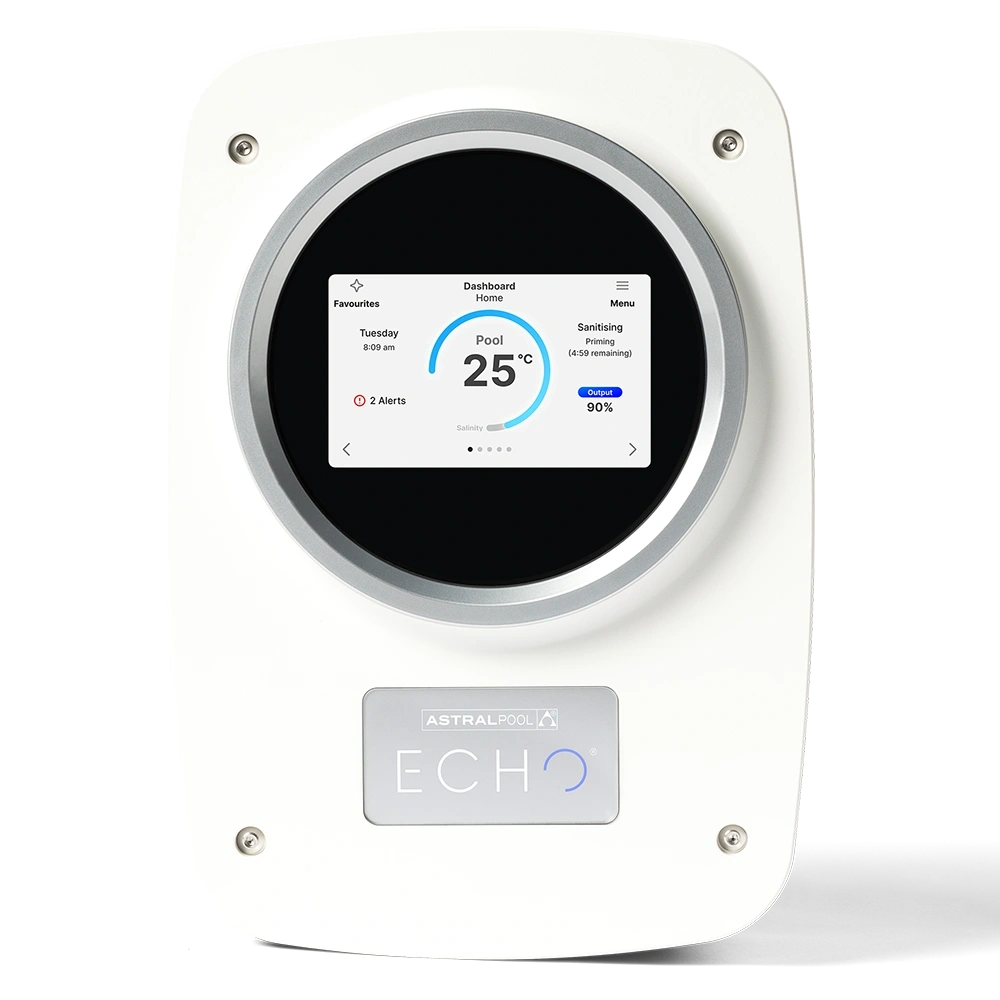

• Control the chlorinator using the unit's touch screen or connect through Bluetooth and Wi-Fi for phone control.
• Built-in timers and fine output adjustment provide flexibility when setting chlorine production.
• Titanium plates with a ruthenium and iridium coating are housed in a clear acrylic cell.
• Automatic polarity reversal every 4 hours, adjustable up to 6 hours, helps shed scale from the cell plates.
• All Seasons mode lowers chlorine output as the water temperature falls.
• Boost mode provides a temporary increase in chlorine production, while Spa mode reduces output for smaller volumes of water.
• No-flow detection stops production when water is not flowing through the cell, and high and low salt alarms alert you to salt levels outside the required range.
• The low-temperature stop can be switched on or off to suit operating requirements.
• Built-in overload and short circuit protection helps protect the unit during operation.

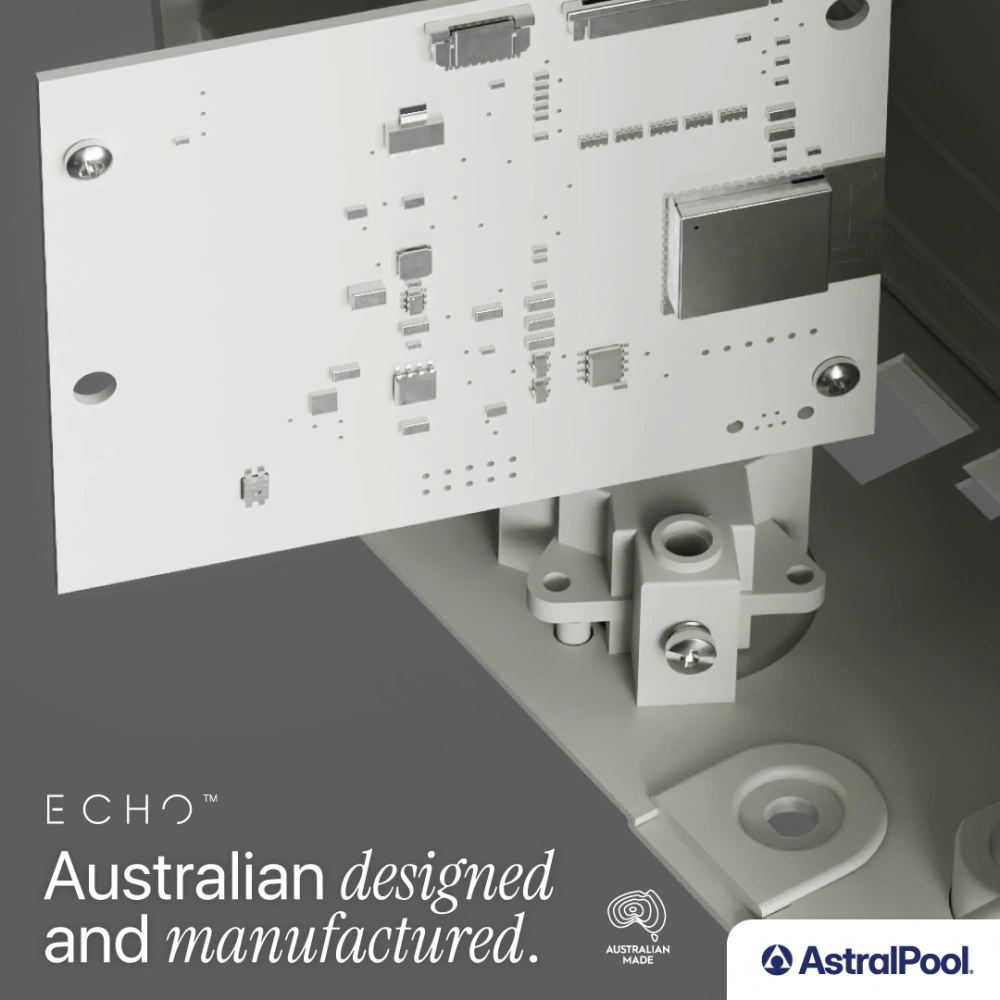

• Made in Australia and certified to AS/NZS 3136.
• Spare parts are available for at least 5 years.

WARRANTY

4 Years*
4 years on Powerpack, 3 Years on Cell/Electrode

SPECIFICATIONS

• Model: ECHO 25
• Chlorine output: 25 g/hr
• Max pool volume: 60,000 L (tropical)
• Climate / environment: Tropical
• Probe based / multi device: No probes, sensorless acid feed (needs additional doser kit)
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: Yes
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 12
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
