AstralPool Echo 35g - Salt Chlorinator

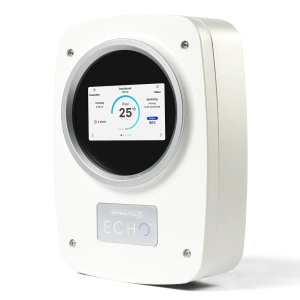

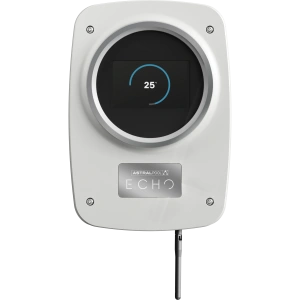

AstralPool Echo 35 Salt Chlorinator

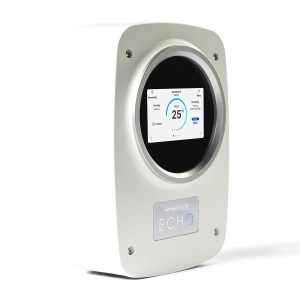

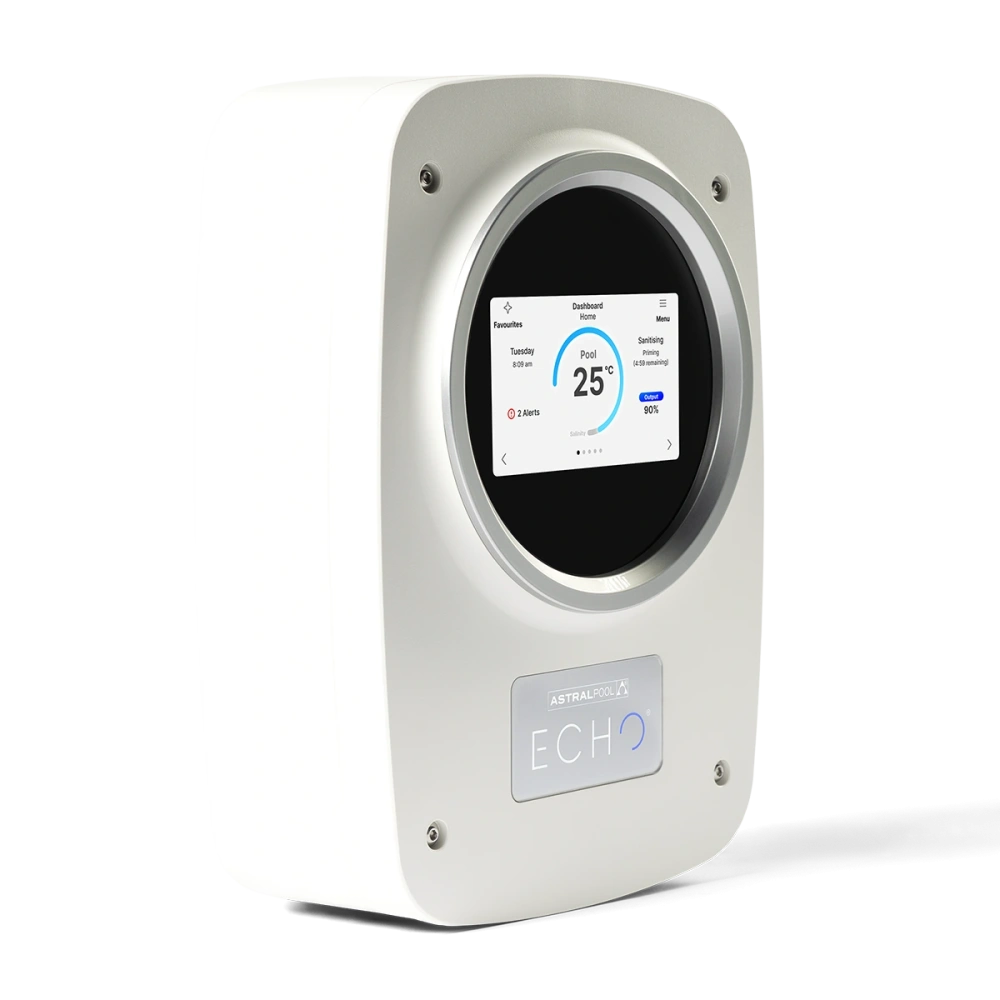

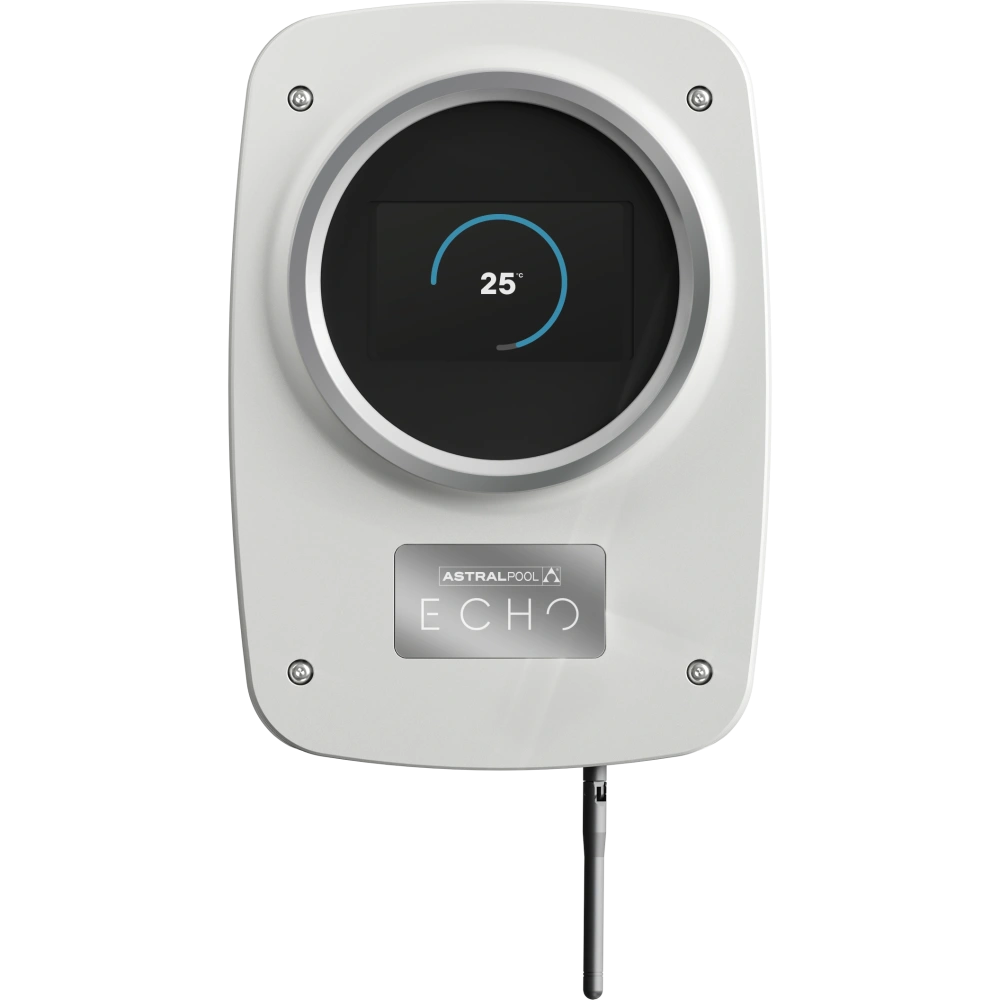

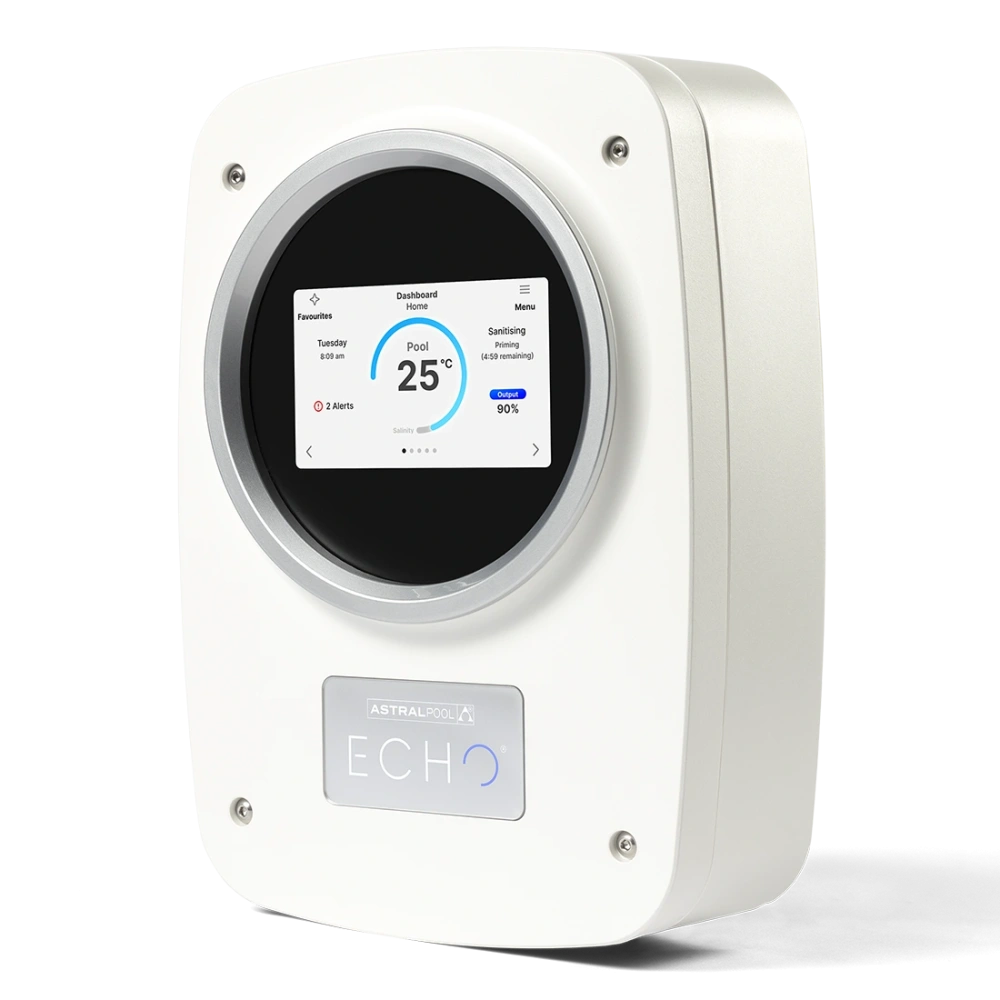

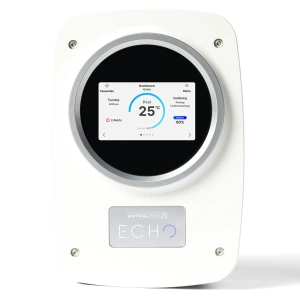

The AstralPool Echo 35 is a salt chlorinator that produces 35 grams of chlorine per hour. It features a touch screen for on-unit control, along with Bluetooth and Wi-Fi connectivity for phone control, making it convenient to adjust settings and chlorine output. Its sensorless acid feed supports pH dosing without a probe in the water, so there is no sensor to calibrate, clean or replace. A separate doser kit is required. The Echo 35 is made in Australia and certified to AS/NZS 3136.

KEY FEATURES

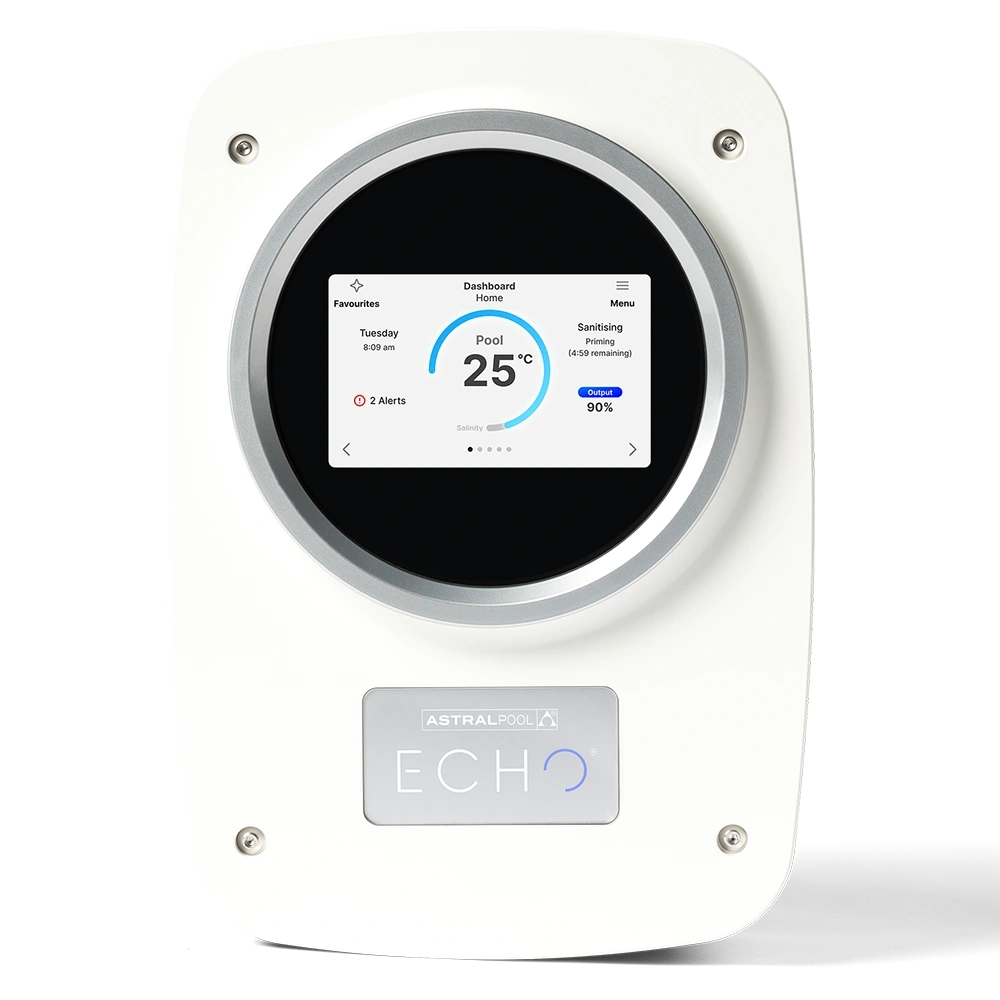

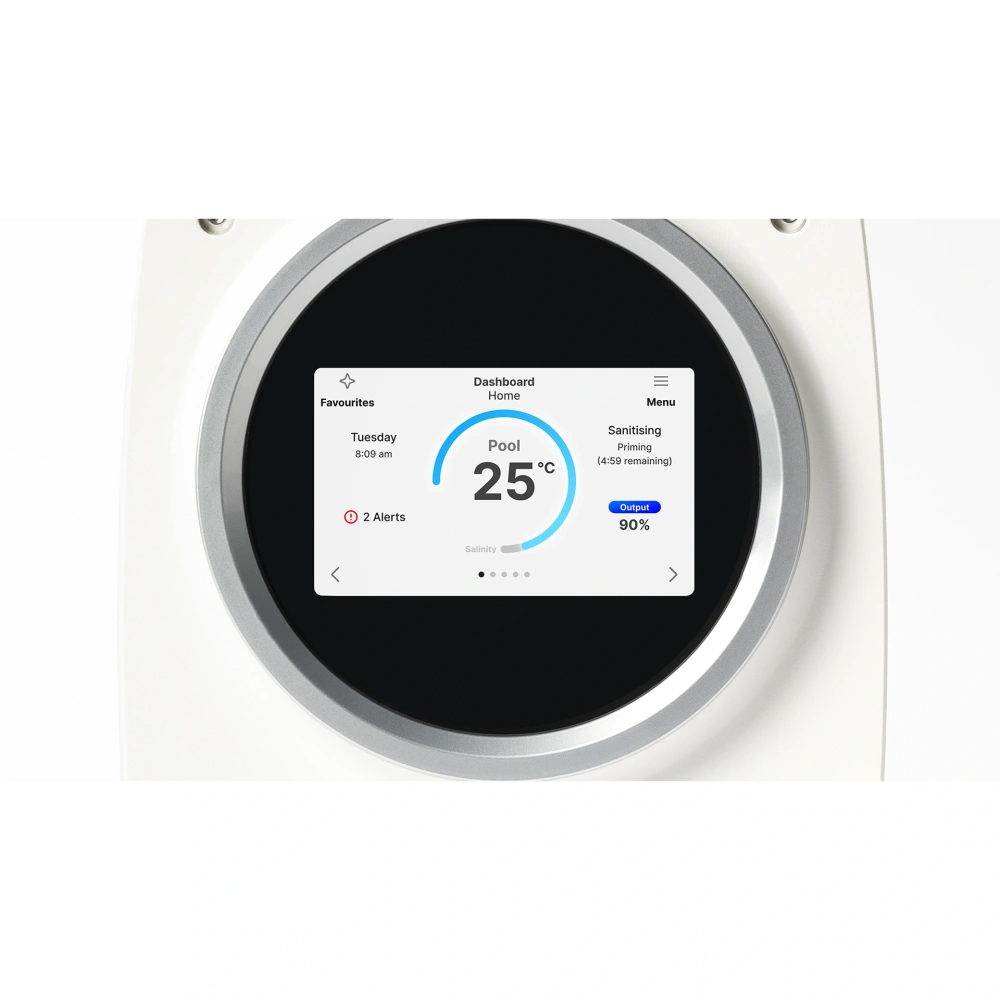

• Control the unit directly through its touch screen or remotely from your phone using Bluetooth and Wi-Fi connectivity.
• Adjust chlorine production in fine increments to give you greater control over the output setting.
• Sensorless acid feed allows pH dosing without a probe in the water. A separate doser kit is required.
• Titanium cell with a ruthenium and iridium coating, housed in transparent acrylic.
• Automatic polarity reversal every 4 hours, adjustable to 6 hours, helps control scale build-up on the cell plates.
• Built-in timers provide convenient control over the chlorinator's operation.
• All Seasons mode reduces chlorine output as the water temperature drops.
• Boost mode temporarily increases chlorine production when additional chlorination is needed.
• Spa mode adjusts operation for smaller bodies of water.
• Chlorine production stops if water flow through the cell stops.
• A high and low salt alarm alerts you when salt levels are outside the required range.

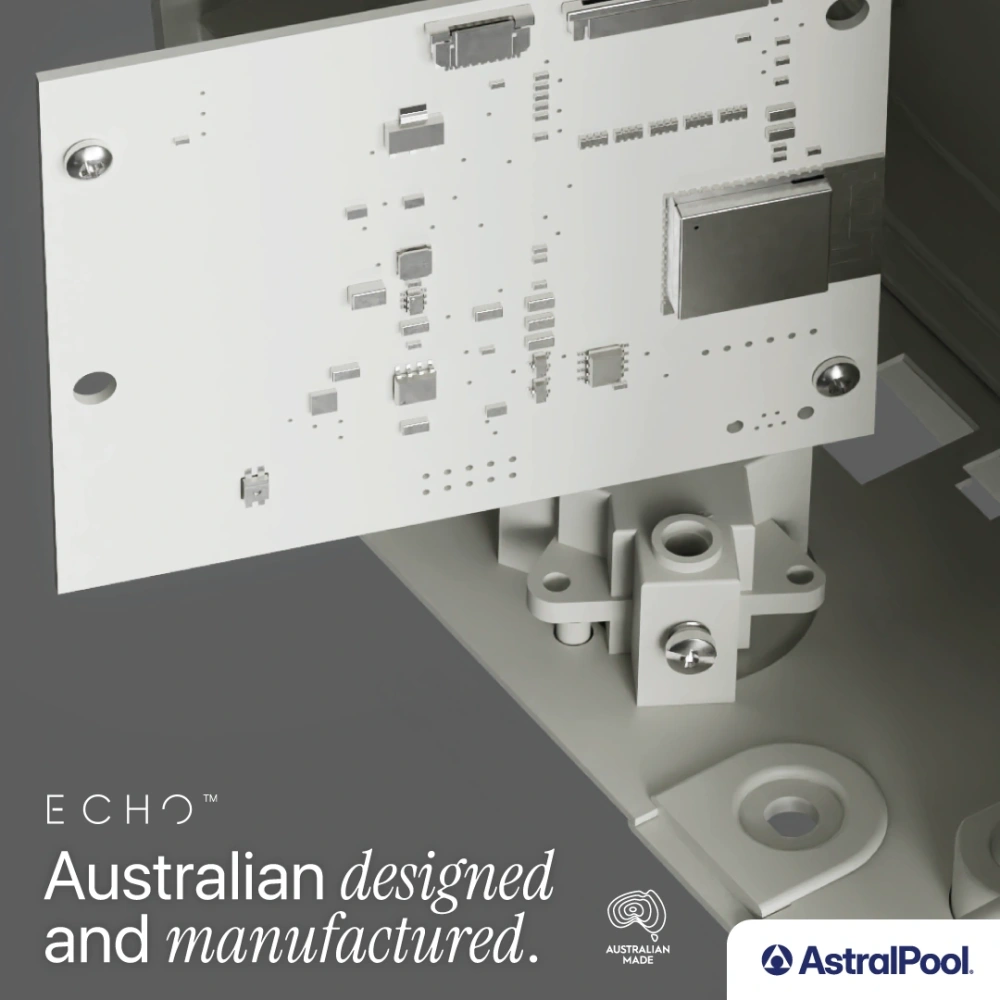

• Made in Australia and certified to AS/NZS 3136.
• Spare parts for the Echo range are available for at least 5 years.

WARRANTY

4 Years*
4 years on Powerpack, 3 Years on Cell/Electrode

SPECIFICATIONS

• Model: ECHO 35
• Chlorine output: 35 g/hr
• Climate / environment: Tropical
• Probe based / multi device: No probes, sensorless acid feed (needs additional doser kit)
• Connectivity: Bluetooth and Wi-Fi
• Built-in timers: Yes
• Spa mode: Yes
• Boost / super chlorinate: Yes
• Winter mode: All Seasons mode
• Output adjustment steps: Yes
• Self-cleaning (reverse polarity): Yes
• Polarity reversal time: 4 hrs (selectable up to 6 hrs)
• Electrode material / coating: Titanium - Ru/Ir
• Number of plates: 12
• Cell housing material: Acrylic
• Cell life expectancy: 10,000 hrs
• Output voltage to cell: 24 V
• Min salinity: 3000 ppm
• Optimal salinity: 4000 ppm
• Max salinity: 8000 ppm
• High / low salt alarm: Yes
• No flow / low flow detect: Yes
• Low temp stop (cell): Yes (can be enabled/disabled)
• Overload / short circuit: Yes
• High temp shutdown (PSU): Yes
• Cooling method: Heat sink
• Min water flow rate: 80
• Max water flow rate: 300
• Max operating pressure: 250 kPa
• Input voltage and frequency: 230 Vac 50 Hz
• Max current: 7.5 A
• Max power consumption: 200 W
• Control unit housing material: Flame retardant ASA/PC
• EMC / interference: CISPR14.1 - AS/NZS2468 - AS/NZS2772.2
• Electrical safety standard: AS/NZS 3136
• Country of origin: Made in Australia
• Spare parts availability: 5 years
• Power supply warranty: 4 years
• Cell warranty: 3 years
• Dimensions: 317 mm x 223 mm x 129 mm
• Weight: 8 kg
