Zodiac LM3-15 / LM3-20 / LM3-24 Chlorinator - RetroChlor RC-LM3-24 25 g/h - Generic

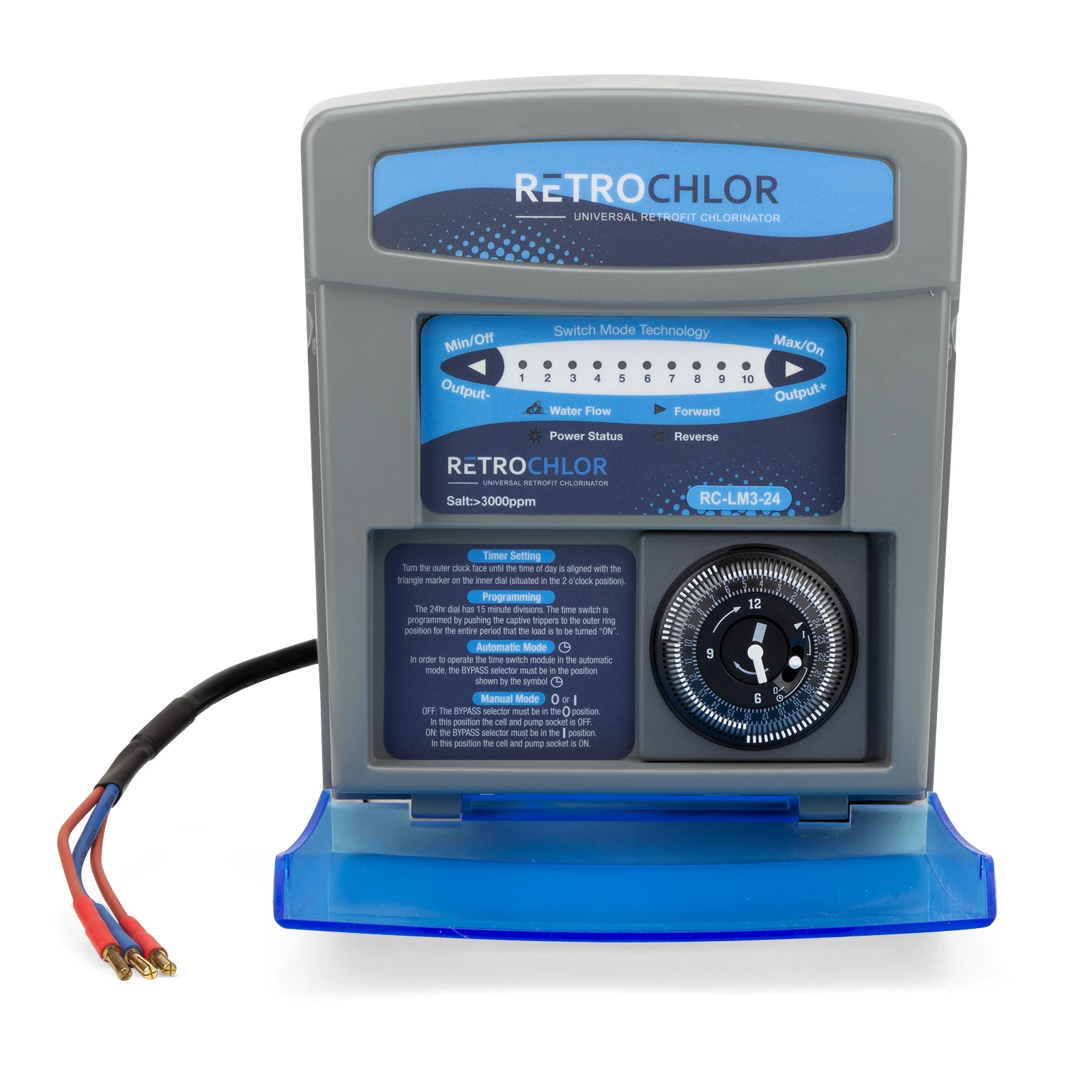

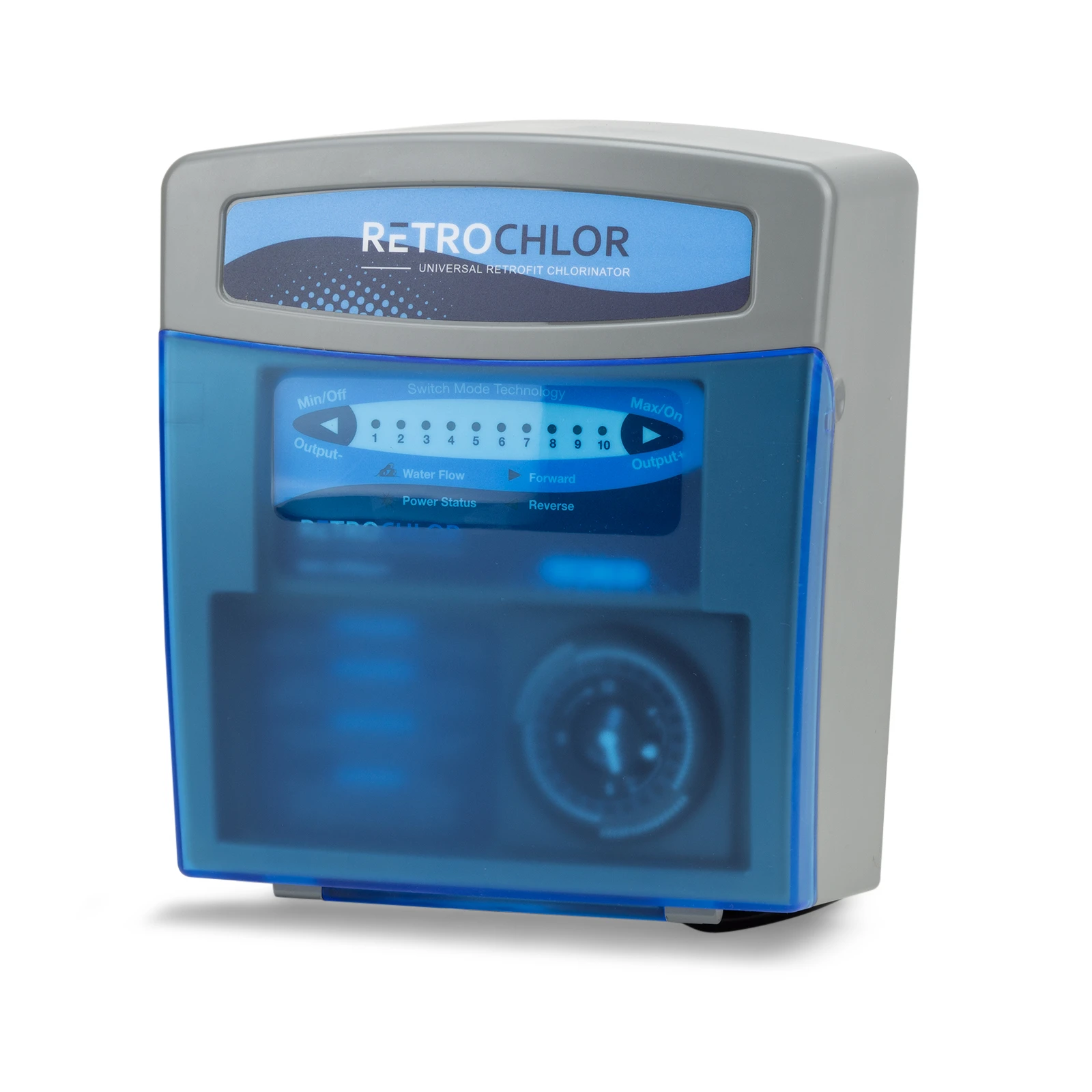

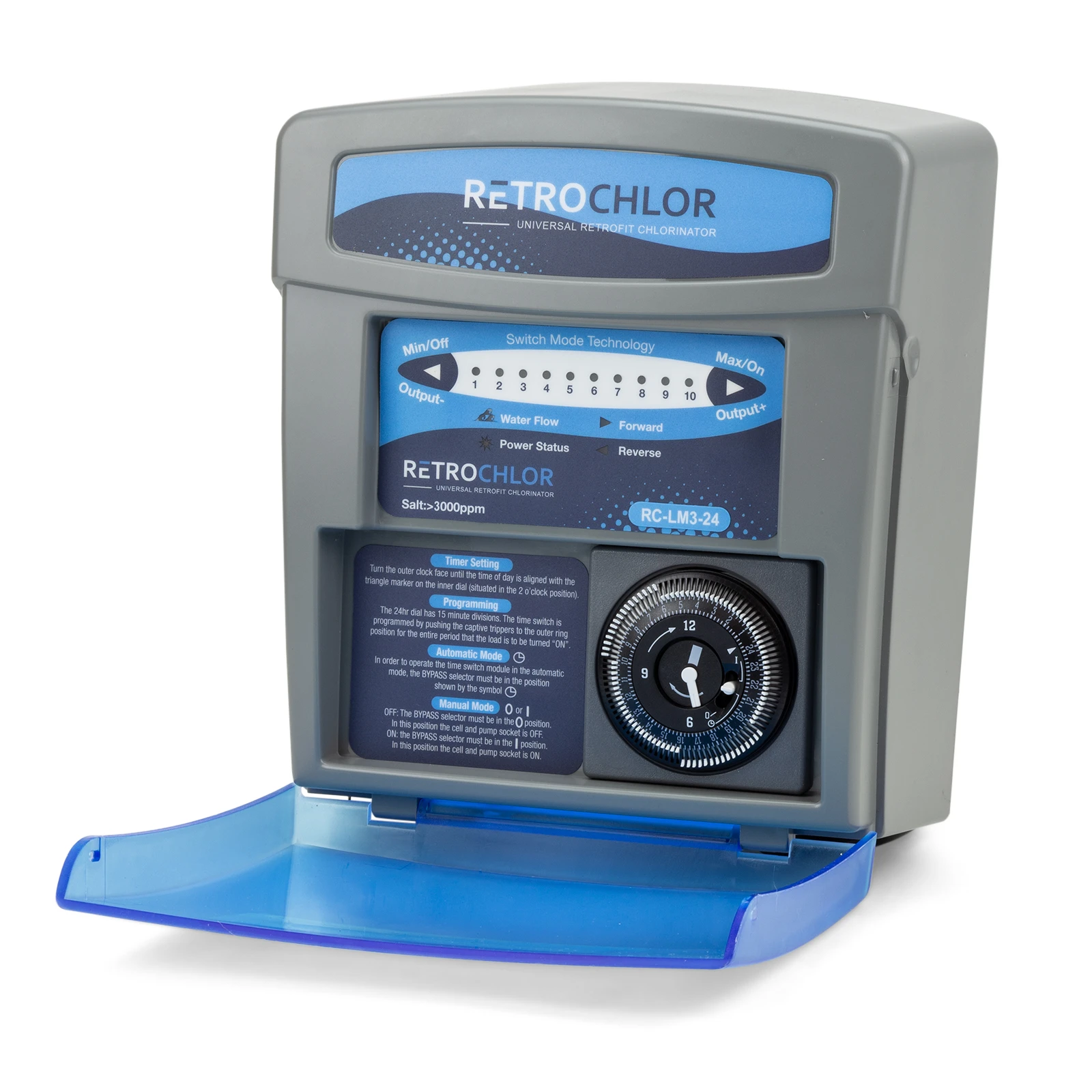

RetroChlor RC-LM3-24 - 25 g/h Universal Retrofit Chlorinator

The RetroChlor RC-LM3-24 is a plug and play universal retrofit chlorinator designed as a generic replacement for Zodiac LM3-15, LM3-20 and LM3-24 systems. It allows faulty or outdated saltwater chlorinators to be replaced in as little as 15 minutes, helping you avoid expensive installation fees and unnecessary plumbing changes.

Australian conditions such as heat, vermin, corrosion and power surges can accelerate wear on pool equipment. RetroChlor kits are engineered to slot directly into existing pool equipment setups, renewing this essential pool component without the cost of replacing entire pipe systems.

FEATURES

Plug and Play Retrofit Design

Designed to fit directly into existing LM3 series cell housings, allowing quick replacement without replumbing or complex electrical work.

Self-Cleaning Cell Technology

Uses reverse polarity technology to change the direction of current at programmed intervals, dissolving calcium build-up from the cell plates and maintaining consistent chlorine production.

Energy Efficient Operation

Built with modern switch mode technology that reduces electrical resistance compared to older transformer-based chlorinators. This lowers power consumption and helps reduce running costs.

Designed for Harsh Outdoor Conditions

Constructed with high-grade internal components and acrylic weather shielding. Over-current and temperature protection ensure reliable operation in extreme heat and outdoor environments.

Key Features

• Universal retrofit chlorinator kit
• Chlorine output: 25 g/h
• Designed to retrofit Zodiac LM3-15, LM3-20 and LM3-24 systems
• Self-cleaning reverse polarity cell
• Energy efficient switch mode technology
• Low salt operation: 3000 to 3500 ppm
• Mechanical timer with battery backup
• Premium grade titanium salt cell

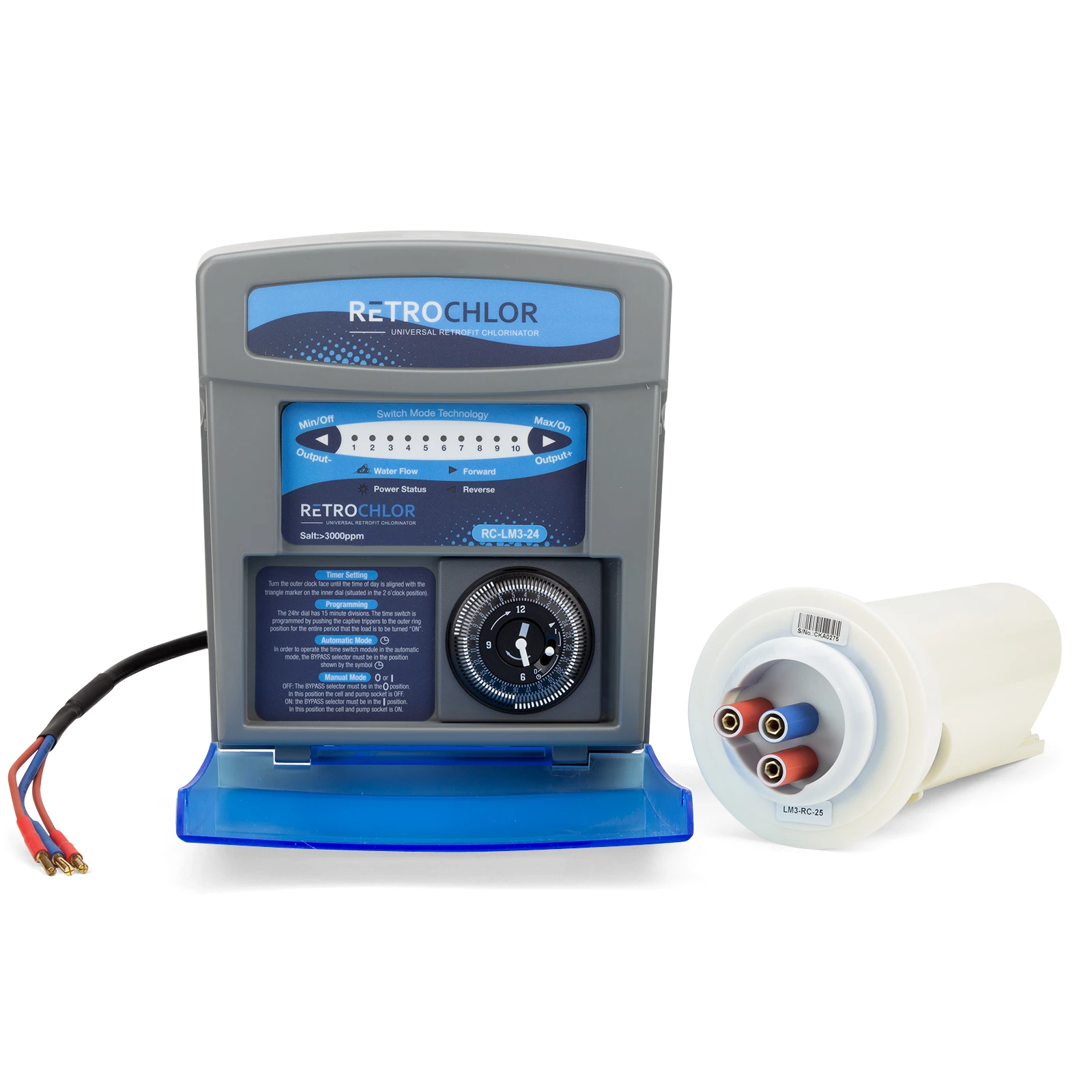

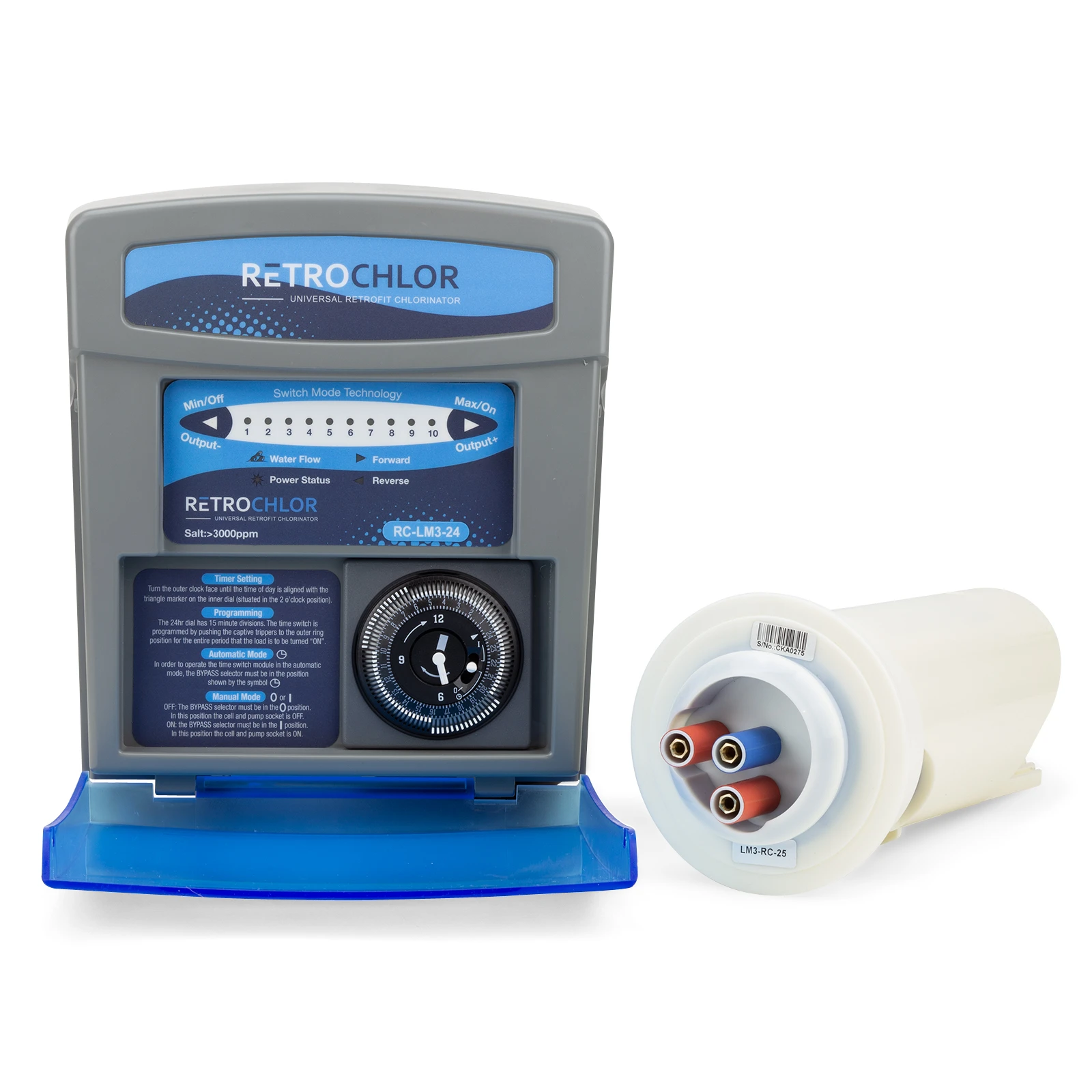

Package Contents

• 1 x Chlorinator control box
• 1 x Electrolytic salt cell
• 1 x Chlorinator output cable

Specifications

• Model: RC-LM3-24
• Chlorine Production: 25 g per hour
• Salt Level Range: 3000 to 3500 ppm (0.3 to 0.35 percent)
• Technology: Switch mode power supply
• Installation Type: Retrofit using existing LM3 series cell housing only

This unit is compatible only with an existing Zodiac LM3 series cell housing. Other RetroChlor kits are available for different brands and configurations.
