Zodiac Tri eXO Mid IQ - Chlorinator + WiFi + pH - Retrofits Tri / Tri XO

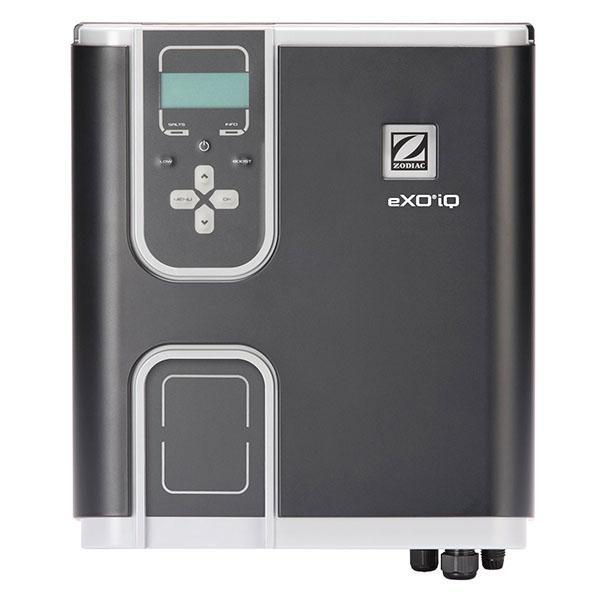

Zodiac eXO Mid iQ - Self Cleaning Chlorinator + WiFi + pH

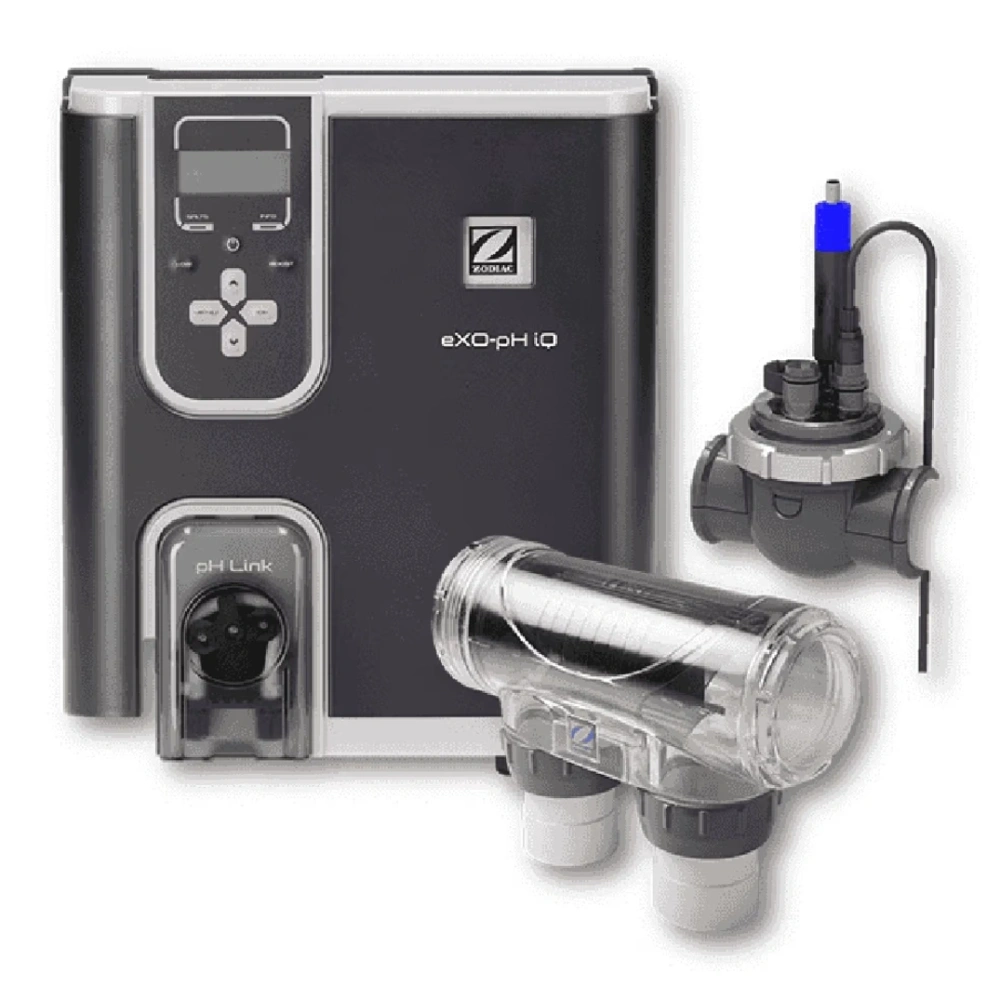

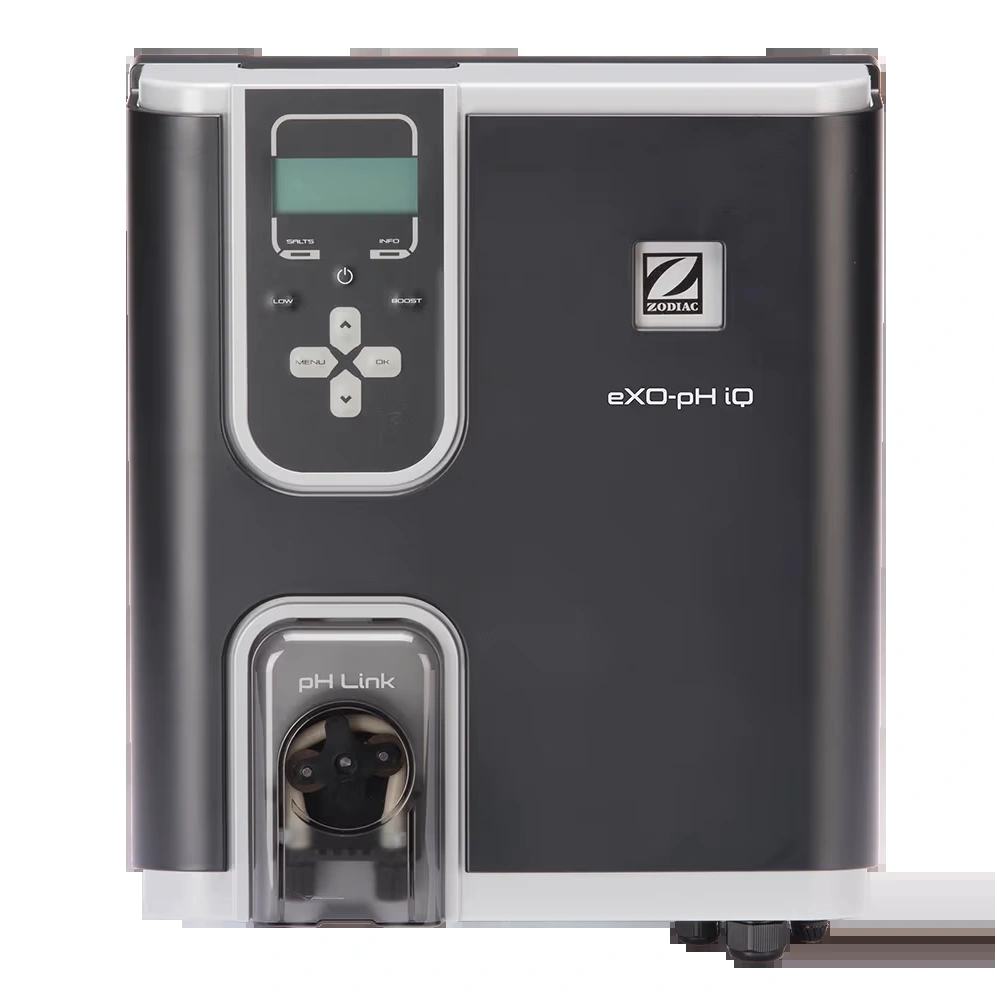

The eXO iQ pH Mid is a saltwater chlorinator with built-in WiFi, a pH sensor and automatic acid dosing, for medium pools up to 75,000 litres in a mild climate. It adds automatic pH management to the connected control of the eXO iQ. A pH sensor and dosing pump balance the water’s acidity, which reduces manual testing and adjustment, and the iAquaLink app shows water balance and allows remote operation. It retrofits Tri and Tri XO installations

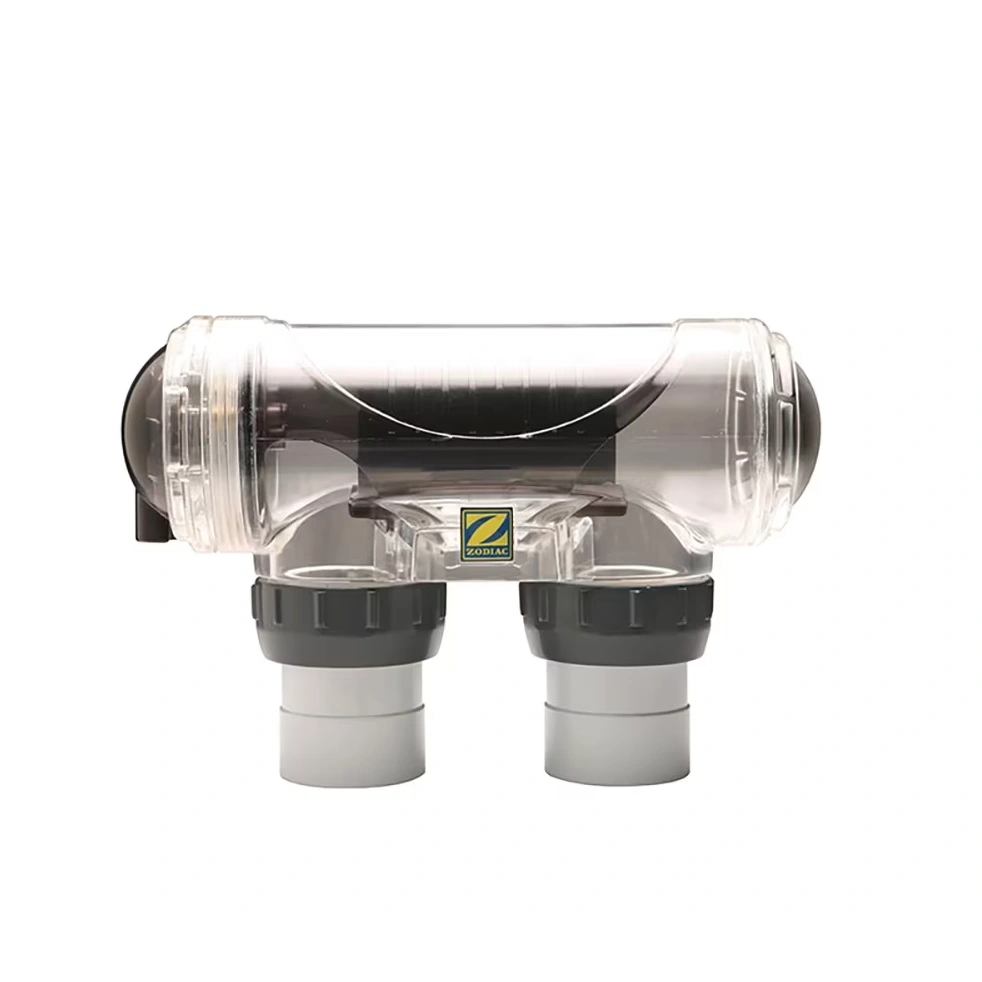

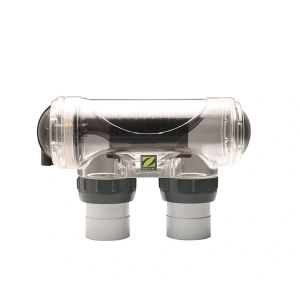

- Long-life RP cell - These upgraded automatic cleaning cell plates have an ultra-long life, combined with smart tech in the chlorine production that will provide years of performance.

- Multi-colour light control - Control your pool light(s) directly from the chlorinator (or your smart phone with iAquaLink). This feature requires additional relay box to connect.

- Automatic pH control - A pH sensor and dosing pump monitor water acidity and dose acid to keep it balanced, reducing manual testing and adjustment.

- Salt or mineral switcher - Use normal pool salt or mineral salts to create chlorine and keep your pool water healthy and sanitised at all times.

- Pool cover mode - Allows you to connect an automatic pool cover that will automatically drop the output to your desired level without having to do a thing.

- iAquaLink enabled - Features a built-in WiFi chip that allows you to monitor and control remotely, including pH readings and control, for complete control at your fingertips anytime, anywhere.

- Smart temperature sensor - Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.

- Variable speed pump control - Provides greater control over pump speed and helps reduce energy consumption. The eXO can communicate to RS485 enabled pumps.

Specifications:

• Model: Mid
• Recommended pool size '000L (in mild climate) - 75
• Nominal chlorine production - 25 g/h
• Operating mode(s) - Normal = adjustable by 10% increments from 0% - 100%. Low Mode = adjustable range 0 to 30%. Boost Mode = continuous 100% for 24hrs.
• Salt level (recommended - min.) - 4000ppm recommended (minimum - 3300ppm)

• Plumbing Capacity: 40mm / 50mm
• Acid Dilution: minimum 1:1 (acid:water), can be up to 2:1 (acid:water)
• Cell protection - Temperature sensor controls chlorine output in cold water conditions assiting to protect cell against excessive wear and tear.
• Warning indicators - "Low salt" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal.
• Power supply - 196 W / 110-240 VAC / 50-60 Hz
• Power Pack Dimensions (HWD) - 370mm x 320mm x 100mm
• Cell Dimensions (HWD) - 160mm x 320mm x 110mm
• Warranty - 3 Years
