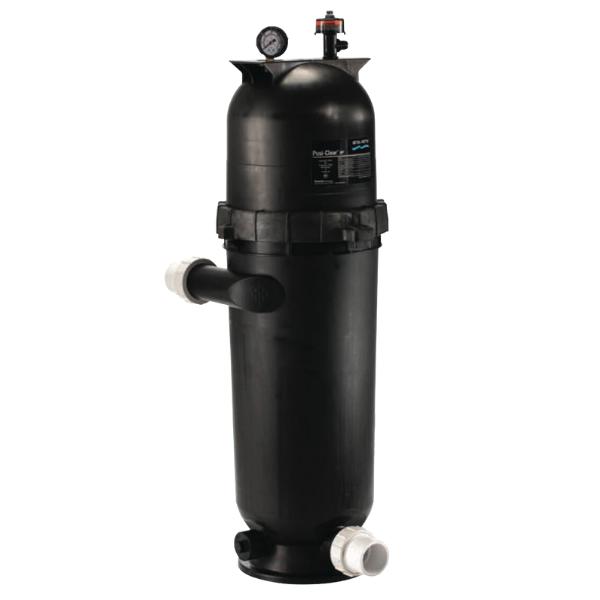

Pentair Posi-Clear RP - 200 Sqft Cartridge Filter

The Posi-Clear RP filter is a pool filter which combines a cartridge and centrifugal energy filter into one package. The filter is designed with a raised and offset inlet port which creates a cyclone effect inside the filter that helps to move water through the filter element.

The Posi-Clear RP Filter has a side-entry port to optimize flow and energy efficiency. And inside, we’ve maximized the cartridge surface consistency to block and trap particles as small as 20 microns (an average grain of beach sand is 1,000 microns.

Efficient and carefree - The Posi-Clear RP Filter's side-entry design optimizes flow for greater energy efficiency

Key Features:

Raised Port - Uses the whole height of cartridge.
Raised Port - Cyclone effect flings larger particles out to simply drain away
Integrated continuous High FlowTM internal air relief.
Chemical Resistant Tank Body.
Lock ring with spring-loaded safety latches.
Coreless cartridge for easy cleaning.
1" Drain and Wash Out.
Single piece base and body design.
50mm / 2" unions included.
Climate Care Certified

Specifications:

Effective Filtration Area (ft2/m2): 200/18.6
Max Flow Rate (LPM): 570
Turnover Capacity (In Litres): 8 hours - 273000 / 10 hours -342000 / 12 hours - 410000

Warranty - 10 year pro-rata

Pentair Posi-Clear RP Catridge Filter Manual
